MBL 270V MBL 270V (2017)

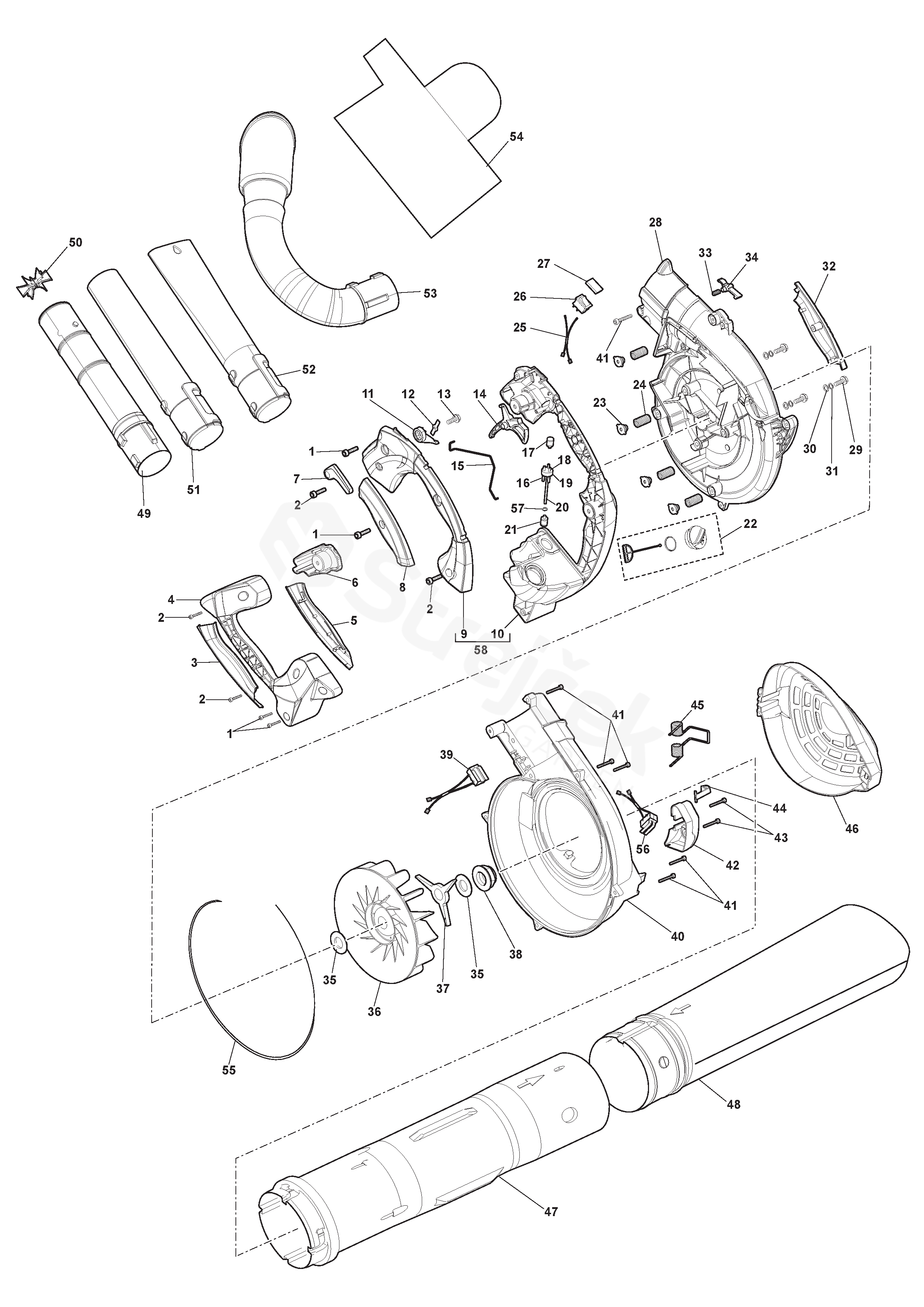

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For MBL 270V (2017)

2	Screw	112727795/0
3	Handle Cover	118805242/0
4	Handle	118803092/0
5	Handle Cover	118805243/0
6	Support	118803094/0
7	Knob	118803095/0
8	Handle Cover, Left Part	118805240/0
9	Left Handgrip	118803097/0
10	Right Handgrip	118803098/0
11	Lever	118803099/0
12	Reed	118803100/0
13	Screw	112735404/0
14	Trigger, Red	118803101/0
15	Push rod	118803102/0
16	Tube	118803103/0
17	Equalizer	118803104/0
18	Oil return pipe	118803105/0
19	Retainer	118803106/0
20	Fuel Tube	118803107/0
21	Fuel Filter	118800199/0
22	Fuel Cap Assy	118800241/0
23	Fixation Block	118803108/0
24	Spring	118803109/0
25	Cable	118803110/0
26	Switch	118803111/0
27	Cap	118803112/0
28	Air Conveyor	118803113/0
29	Screw	2132550
30	Washer	112521320/0
31	Grower	112581500/0
32	Handle Cover, Right Part	118805241/0
33	Spring	118803115/0
34	Fixed link	118803116/0
35	Washer	118803117/0
36	Fan	118803118/0
37	Blade	118803119/0
38	Nut	118803120/0
39	Reverse-switch	118803121/0
40	Air Conveyor	118803122/0
41	Screw	112728099/1
42	Protection Cover	118803123/0
43	Screw	112726389/0
44	Lever	118803124/0
45	Spring	118803125/0
46	Fan Cover, Red	118804608/0
47	Vacumm tube	118803126/0
48	Vacumm tube	118803127/0
49	First Blower Tube	118803128/0
50	Shredder	118803129/0
51	Third Blower Tube	118803130/0
52	Second Blower Tube	118803131/0
53	Tube Fittings Bag	118803132/0
54	Bag	118803133/0
55	Seal	118804610/0
56	Switch	118804609/0
57	Snap Ring	118804613/0
58	Handle Cover Kit	118803098/1
