Spare parts > Mountfield > Tiller > MANOR 3 MANOR 35 (B&S 148cc) (2008) > Control Cables,Drive Belt,Transmission
Back to

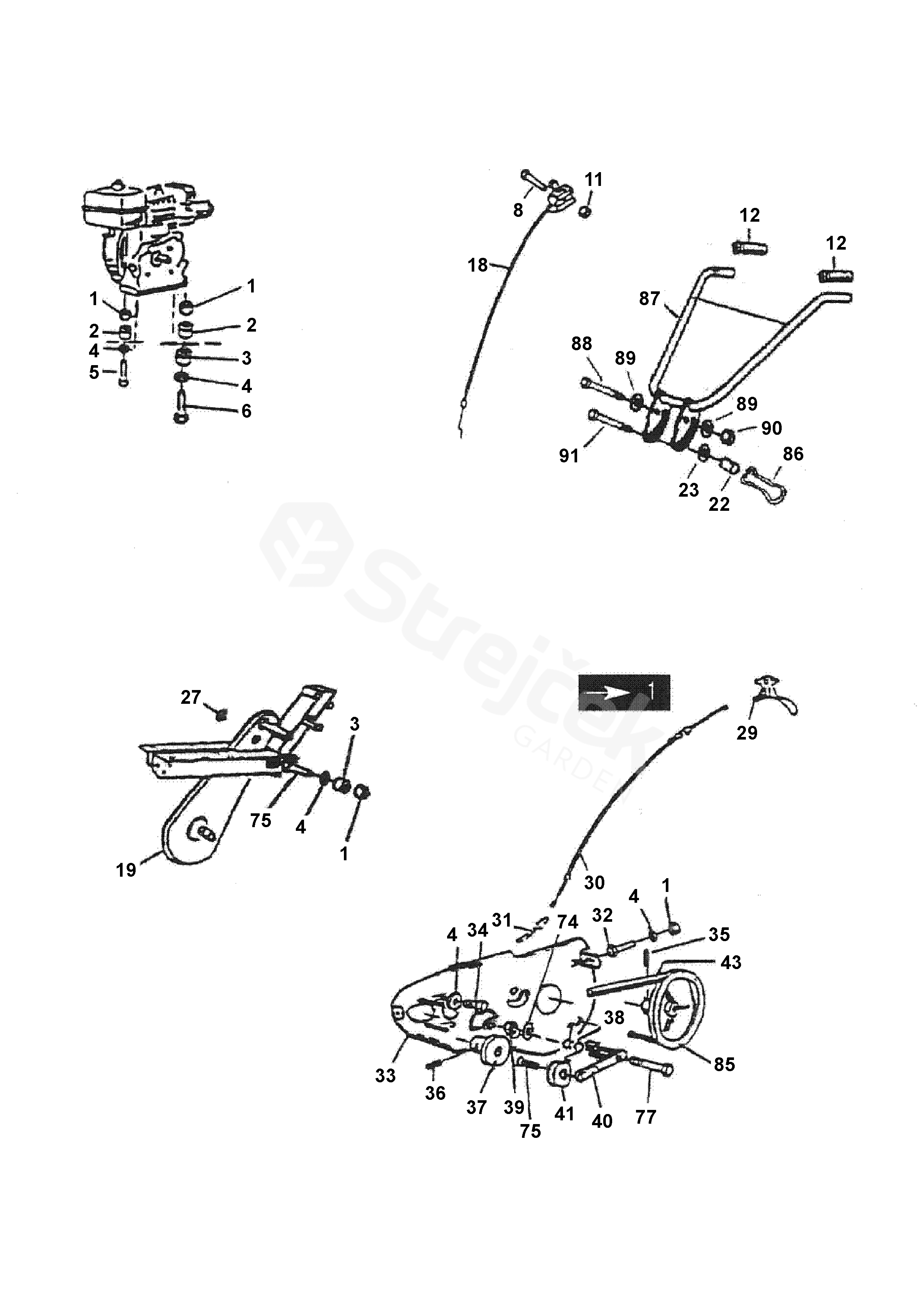

Control Cables,Drive Belt,Transmission
MANOR 3 MANOR 35 (B&S 148cc) (2008)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MANOR 35 (B&S 148cc) (2008)
1 Lock Nut RCL089-0810
2 Spacer PL16245
3 Spacer PL33940
4 Use PLZ08L8N Zobrazit hystorii
Use PLZ08L8N 		Z08L8N
5 Screw
Use PLZ030850 		PLZ030850
6 Use PLZ03860
Use PLZ03860 		Z038-60
8 Use PLZ03650
Use PLZ03650 		Z036-50
11 Nut RCL090-0606
12 Grip PL16706
18 Cable PL38093
19 Transmissi PL38002
22 Nut PL31151
23 Use PLZ08L12N
Use PLZ08L12N 		Z08L12N
27 Plug PL10055
29 Lever PL30933
30 Cable PL31358
31 Spring PL30564
32 Screw
Use PLZ03835 		PLZ03835
33 Plate PL30062
34 Screw
Use PLZ03792416 		PLZ03792416
35 Use PL013625 0136-25
36 Use PL05288 0528-8
37 Pulley PL30544
38 Spring PL30037
39 Nut
Use PLZ5310 		PLZ5310
40 Arm PL30046
41 Pulley PL11030
43 Belt PL31207
74 Washer
Use PLZ08L10N 		PLZ08L10N
75 Screw
Use PLZ031016 		PLZ031016
77 Bolt PL30042
85 Pulley PL30619
86 Clip PL31142
87 Handlebar PL38001
88 Bolt
Use PLZ0314110 		PLZ0314110
89 Washer
Use PLZ08Z14U 		PLZ08Z14U
90 Use PLZ5314
Use PLZ5314 		Z5314
91 Bolt
Use PLZ4212110CC 		PLZ4212110CC
