Mountfield
>
Tiller
>

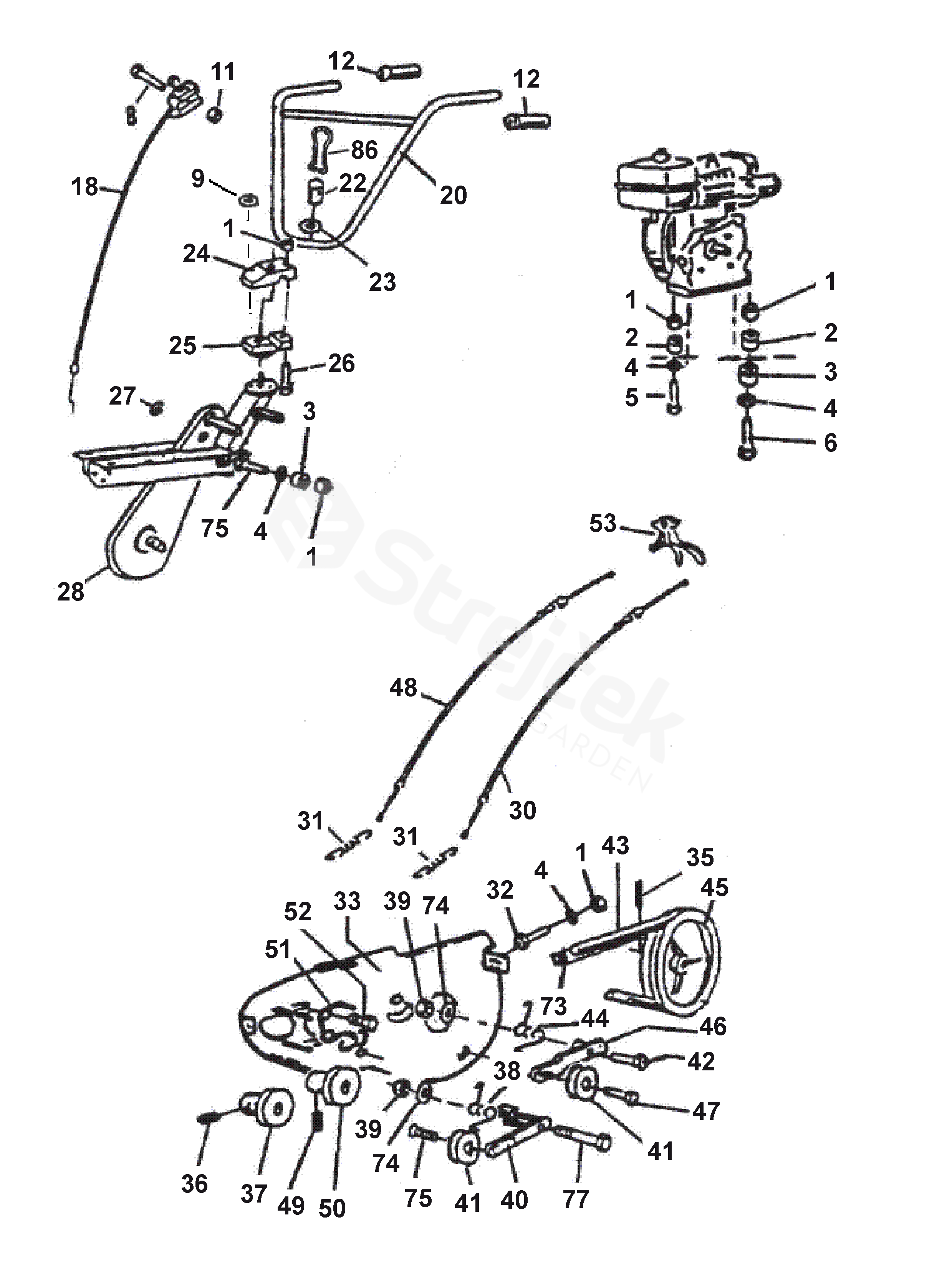

MANOR 55 MANOR 55R (B&S 800 Series) (2013)
>
Control Cables,Drive Belts,Handlebar-Transmission
Back to
MANOR 55
MANOR 55R (B&S 800 Series) (2013)
Control Cables,Drive Belts,Handlebar-Transmission
MANOR 55
MANOR 55R (B&S 800 Series) (2013)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MANOR 55R (B&S 800 Series) (2013)
1
Lock Nut
RCL089-0810
2
Spacer
PL16245
3
Spacer
PL33940
4
Use PLZ08L8N
Use PLZ08L8N
Z08 L8N
5
Screw
PLZ030850
6
Screw
PLZ03860
8
Screw
PLZ03650
9
Handwheel
PL39233
11
Nut
RCL090-0606
12
Grip
PL16706
18
Cable
PL38093
20
Handlebar
PL31194
22
Nut
PL31151
23
Washer
PL38023
24
Clamp
PL31182
25
Clamp
PL33426
26
Screw
PLZ03840
27
Plug
PL10055
28
Transmissi
PL33435
30
Cable
PL31358
31
Spring
PL30564
32
Screw
PLZ03835
33
Plate
PL30062
35
Roll Pin
PL013625
36
Use PL05288
Use PL05288
052 8-8
37
Pulley
PL30544
38
Spring
PL30037
39
Nut
PLZ5310
40
Arm
PL30046
41
Pulley
PL11030
42
Screw
PLZ031035
43
Belt
PL31207
44
Spring
PL33407
45
Pulley
PL31203
46
Arm
PL30049
47
Screw
PL33437
48
Cable
PL31359
49
Screw
PL025610
50
Pulley
PL30457
51
Guide
PL30036
52
Screw
PLZ03792425
53
Lever
PL30934
73
Belt
PL31202
74
Washer
PLZ08L10N
75
Use PLZ031016
Use PLZ031016
Z03 10-16
77
Bolt
PL30042
86
Clip
PL31142
