Spare parts > Mountfield > Snowthrowers > MN 421 MN 421 (2009) > Auger
Back to

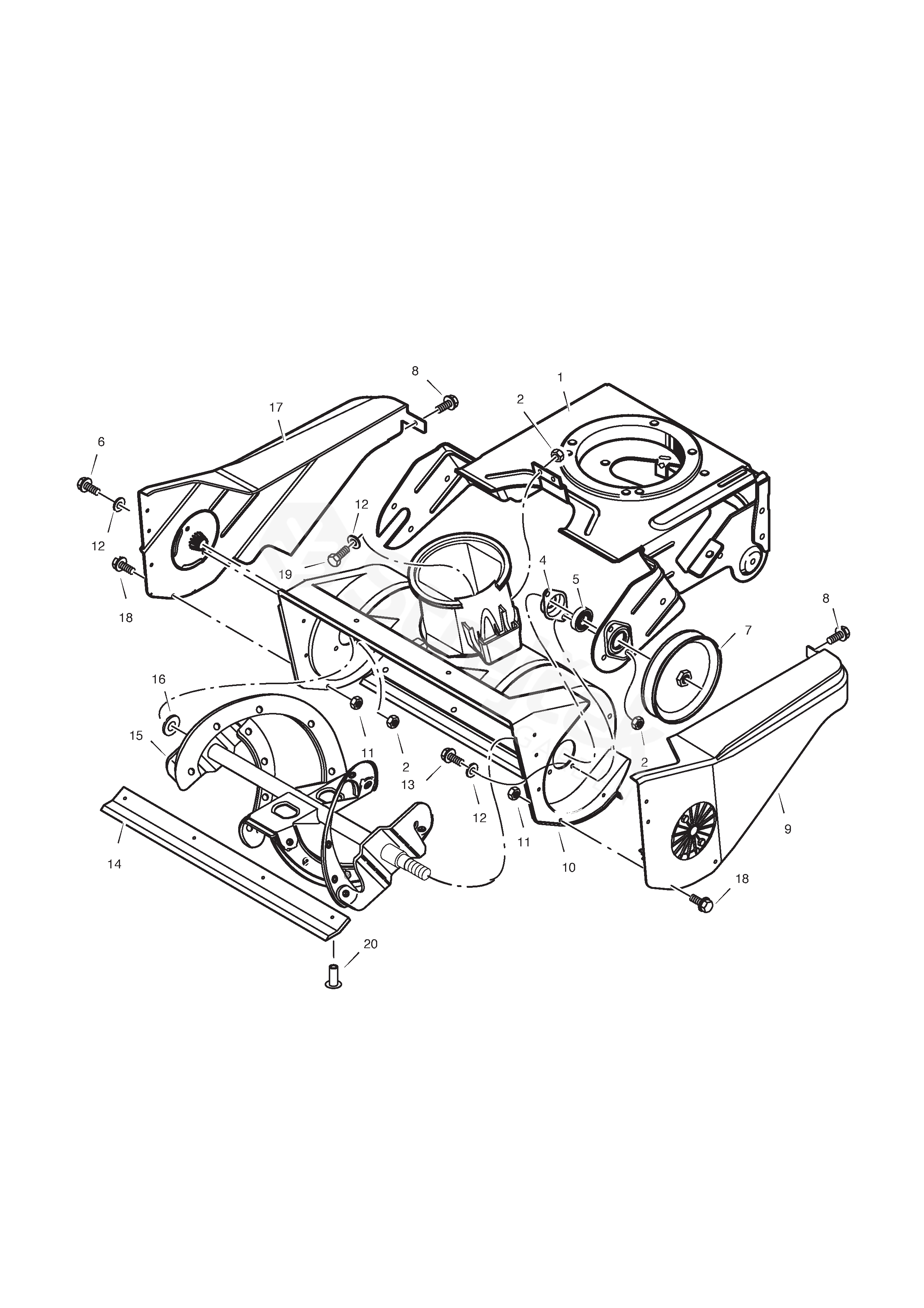

Auger
MN 421 MN 421 (2009)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MN 421 (2009)
1 Motor Box Frame (Red) 1812-2054-02
2 Nut 1812-1758-01
4 Bearing Retainer 1812-1925-01
5 Ball Bearing 1812-1383-01
6 Screw 9988-3519-16
7 Pulley 1812-1400-01
8 Screw 1812-1768-01
9 Belt cover-LH 1812-2031-01
10 Auger Housing 1812-2052-01
11 Nut 1812-0630-01
12 Washer 9699-0028-02
13 Screw 9988-3516-16
14 Scraper Blade 1812-1481-01
15 Auger Assy 1812-1488-01
16 Washer 1812-1238-01
17 Cover-Rh 1812-2032-01
18 Bolt 1812-0959-01
19 Screw 9988-3519-16
20 Rivet 1133-1022-01
