Spare parts - Partlist - S500 PRO S500 PRO, 966866101, 2017-04 - PRODUCT COMPLETE

Everything for your machines

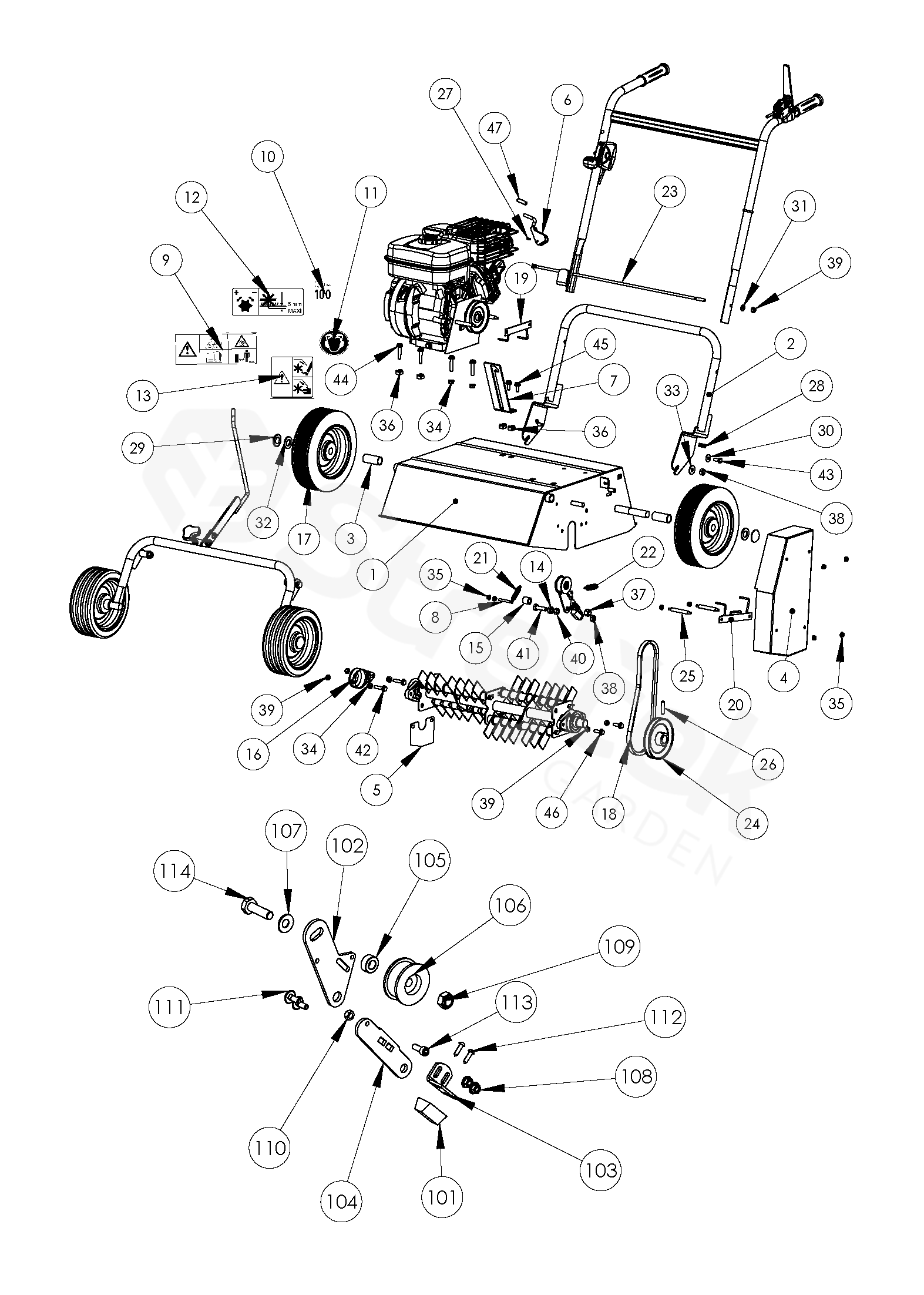

S500 PRO S500 PRO, 966866101, 2017-04

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For S500 PRO, 966866101, 2017-04

1	CARTER ORANGE, SCARIF 50	534100228
2	SUPPORT MANCHERON DARK GRAY	534100232
3	ENTRETOISE ROUE ARR. FOR REAR WHEEL	534100251
4	HOOD BLACK	534100192
5	PLATE BLACK	534009752
6	LEVER	588823701
7	SELECT.REGLAGE HAUTEUR	534100182
8	SCREW	534006392
9	STICKER CAUTION OF USE	534100061
10	STICKER 100 D.B.A	534004611
11	STICKER EARMUFF	534100285
12	STICKER HEIGHT ADJUSTMENT	534100268
13	STICKER DANGER	534100267
14	ENTRETOISE PLASTIQUE	534100160
15	ENTRETOISE LEVIER EMBRAYAGE	534100161
16	COVER	534009753
17	WHEEL 250 X 80	534009065
18	COURROIE ROTOR LA33	534100241
19	PLAQUE DE DEBRAYAGE SUPERIEUR UPPER	534100314
20	PLAQUE DE DEBRAYAGE INFERIEUR LOWER	534100313
21	RECOIL SPRING	534100246
22	RECOIL SPRING	534006390
23	TRINGLE BLOCAGE LOCKING AXLE	534100166
24	POULIE DE ROTOR SCARIF 50	534100282
25	AXE	534100162
26	GOUPILLE ROULEE 8X40 8x40 HBK	534009061
27	GOUPILLE ROULEE 4X16 4x16 HBK	534009062
28	PASSE FIL CAOUTCHOUC	534004793
29	ENJOLIVEUR DIAM:20	534100023
30	WASHER M8	534002478
31	WASHER M8	534002014
32	WASHER 20 X 36 X 3	519653434
33	WASHER 27 x 10.25 x 2 ZN	534000724
34	NUT M8 NOTCHED SHOULDER	534100020
35	NUT M6 Z NOTCHED SHOULDER	534100008
36	NUT M8 C 4808B	534004822
37	NUT M10	534002484
38	NUT M10	534001297
39	NUT M8	534003774
40	NUT HU M10	534000709
41	SCREW HM 10 x 35	534000880
42	SCREW HM 8x35 notched shoulder	534009754
43	SCREW HM 8 x 20	534002209
44	SCREW H NOTCHED SHOULDER 8 X 40	534100266
45	SCREW H NOTCHED SHOULDER 8 X 20	534100019
46	SCREW H NOTCHED SHOULDER 8 X 25	534100278
47	CAP ¯ 7.5 x 35	588823801
101	FREIN DE ROTOR	534100253
102	LEVER	534100184
103	EQUERRE FIXATION COURROIE	534100190
104	LEVER	534100186
105	ENTRETOISE 10.5X20X9 10.5 x 20 x 9	534100312
106	GALET D'EMBRAYAGE	534100258
107	WASHER M10	534001997
108	NUT H M6 Z NOTCHED SHOULDER	534100008
109	NUT M10	534001297
110	NUT HU M6	534000992
111	SCREW TRCC 6 x 16	534009079
112	SCREW POZI DRIVE 4.2 x 15.9	534100259
113	SCREW CHC 6 X 16 ZN	534004544
114	SCREW 10 x 35	534000880
