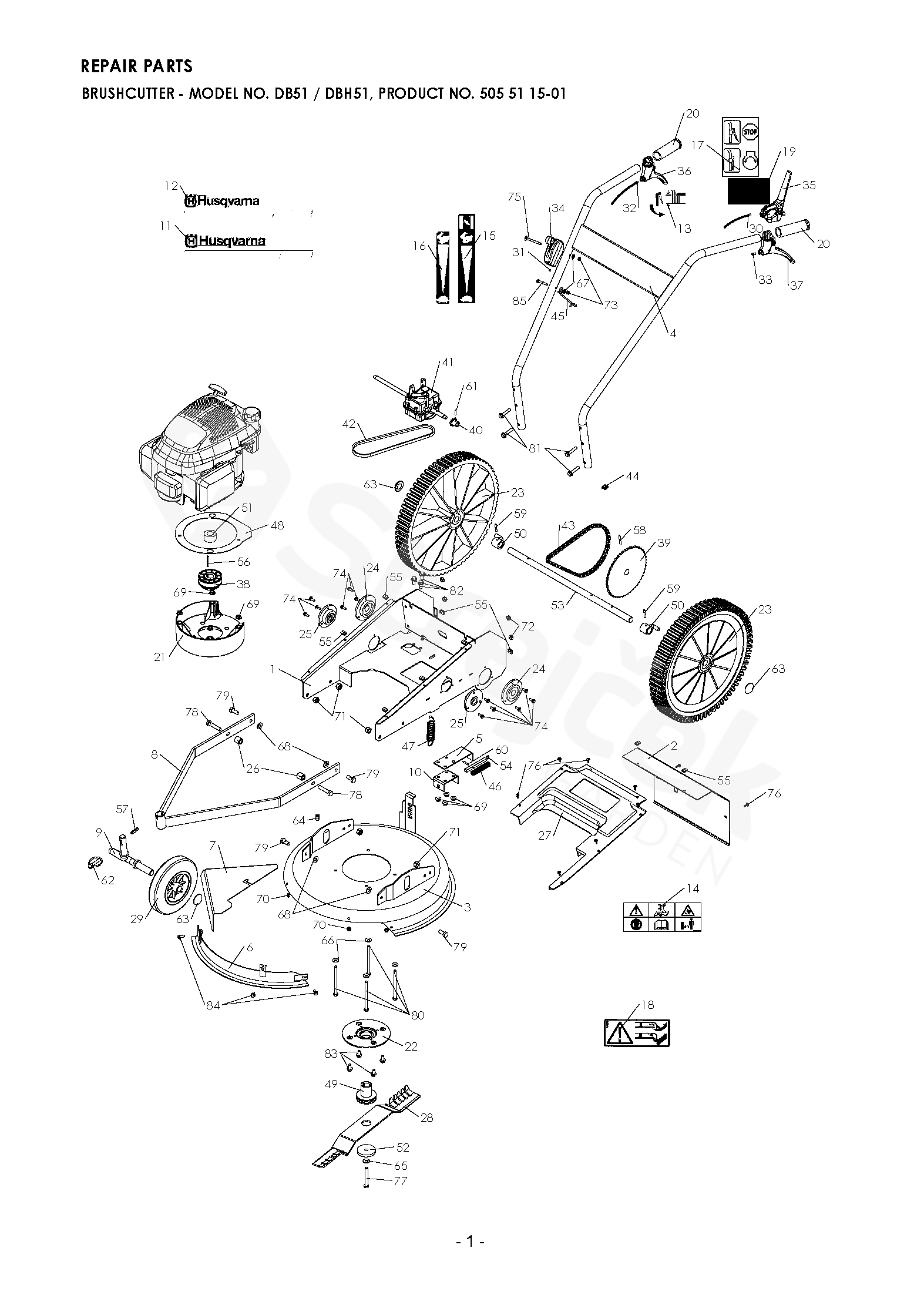

Spare parts - Partlist - DB51 DB51, 504854401, 2015-03 - PRODUCT COMPLETE

Everything for your machines

DB51 DB51, 504854401, 2015-03

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For DB51, 504854401, 2015-03

1	CHASSIS	505511601
2	BONNET	504050601
3	GUARD	504049901
4	HANDLEBAR	504050801
5	SUPPORT	531009433
6	DEFLECTOR	585425201
7	DEFLECTOR	585425301
8	CHASSI	504051001
9	SUPPORT	531009427
10	SUPPORT	531008592
11	LABEL Husqvarna DBH51	504052901
12	LABEL	504052801
13	DECALC.REGLAGE DE COUPE	531009467
14	LABEL	519653264
15	DECALC.CDE DE GAZ DBH51	531009405
16	DECAL	531008251
17	LABEL	531008406
18	LABEL	519653263
19	DECAL	519006225
20	GRIP	544311401
21	WASHER PLASTIC	544291701
22	COUPELLE PROTEGE LAME	531009437
23	WHEEL	587482401
24	PALIER ARBRE DE ROUE 15366	531008358
25	BEARING	544268901
26	GUARD	504051301
27	HOOD	544267801
28	LAME DE COUPE	531009460
29	WHEEL	531008262
30	CABLE	504052001
31	CABLE	504051901
32	CABLE	504051801
33	CABLE	505512101
34	CONTROL	504051701
35	LEVER	504051501
36	LEVER	504051401
37	CLUTCH LEVER	544311301
38	POULIE DE VARIATEUR	531009470
39	PINION	505511901
40	SPROCKET	504051101
41	GEARBOX	505511701
42	BELT	504050901
43	CHAIN	531009464
44	ATTACHE RAPIDE 13279	519653236
45	ACCROCHE LANCEUR	531008597
46	RESSORT DE VERROUILLAGE 13016	519653209
47	SPRING	519653204
48	ENGINE PLATE	587482301
49	HUB	531009432
50	MOYEU DE ROUE 14013	519653251
51	SPACER	504051601
52	WASHER	519653274
53	SHAFT	504050401
54	AXE	531008594
55	CLIP	519653425
56	KEY	519653021
57	GOUPILLE 8X30	531008564
58	GOUPILLE GM 5 X 40 11768	519653170
59	GOUPILLE DE ROUE GV 5X30 11767	519653169
60	GOUPILLE 4X24 HBK	531008398
61	GOUPILLE 11760	519653168
62	GOUPILLE 11710	519653167
63	HUB CAP	519653174
64	INSERT	585427301
65	WASHER	504052201
66	WASHER	544314901
67	WASHER	531009403
68	WASHER	531008389
69	NUT	519653430
70	NUT	519653432
71	NUT	519653458
72	NUT	544207901
73	HEXAGON LOCKING NUT	732261601
74	SCREW	504052701
75	SCREW	544313101
76	SCREW	519653426
77	SCREW	531008318
78	SCREW	519653127
79	SCREW	519653123
80	SCREW	519653045
81	SCREW	519653413
82	NUT	519653433
83	BOLT	531008202
84	SCREW	519653435
85	SCREW	519653437
