LAWN MOWERS: CONSUMER WALK-BEHINDS
>
W53 W53SBEK, W53CSB, W53SEK, W53DS, 968999287, 968999289, 2008-08
>
TRANSMISSION
Back to
W53
W53SBEK, W53CSB, W53SEK, W53DS, 968999287, 968999289, 2008-08

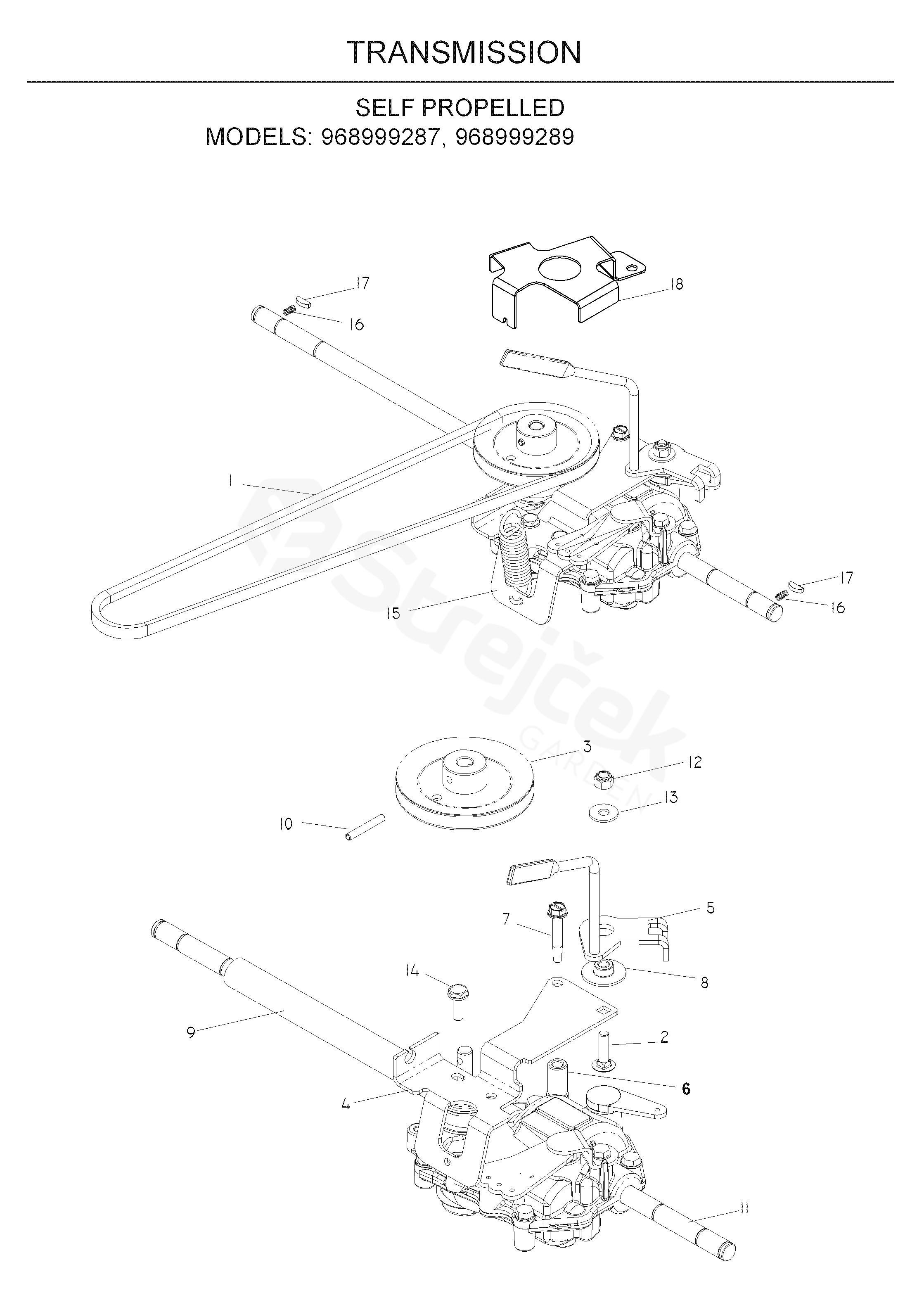

TRANSMISSION
W53
W53SBEK, W53CSB, W53SEK, W53DS, 968999287, 968999289, 2008-08
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
W53SBEK, W53CSB, W53SEK, W53DS, 968999287, 968999289, 2008-08
1
BELT
539111531
2
BOLT
539109800
3
DRIVEN PULLEY
539111528
4
CABLE
539111529
5
SHIFTER
539111535
6
TRANSMISSION SPACER
539111877
7
HCS, 1/4-14 X 1 1/2, SELF TAP
539112046
8
PIVOT BUSHING
539112911
9
SHAFT COVER
539112915
10
SPIRAL PIN, 3/16 X 1 1/8
539113100
11
TRANSMISSION W/GREASE SLOT, T13C
539113139
12
MATICE
539976978
13
WASHER
539990598
14
SCREW, 1/4-14 X 3/4, SELF TAP
539991081
15
SPRING, TRANSMISSION
539111890
16
KEY SPRING
539111891
17
WOODRUFF KEY, SPECIAL
539111893
18
BELT KEEPER - REAR. BLACK
539131371
