Spare parts > Castelgarden > Lawn Mower > CP1 484 S CP1 484 S (2019) > Height Adjusting
Back to

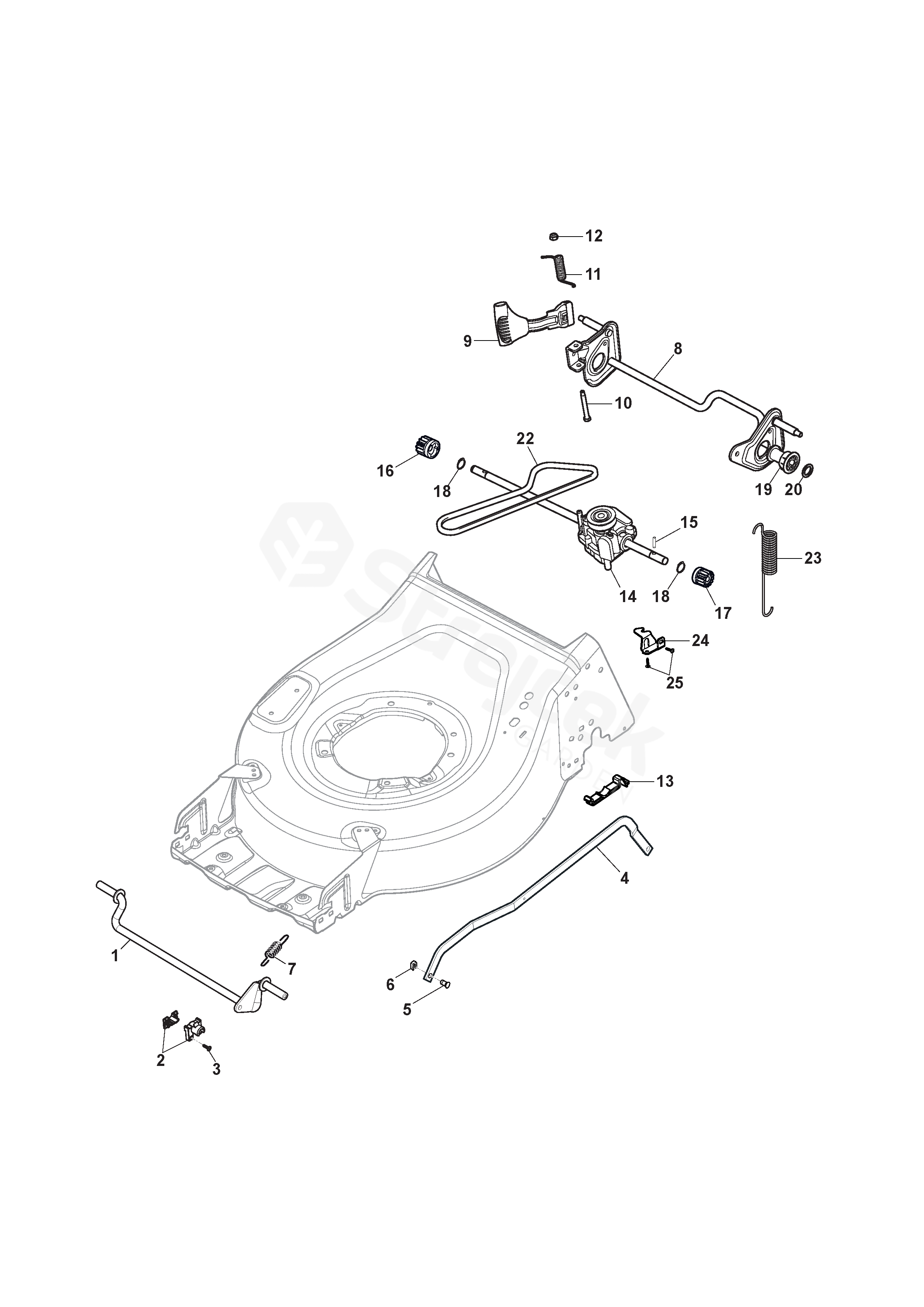

Height Adjusting
CP1 484 S CP1 484 S (2019)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For CP1 484 S (2019)
1 Axle, Front Wheels 381302943/1
2 Support 322785305/1
3 Screw 112728697/0
4 Rod, Height Adjustment 322869733/0
5 Pin 122519823/0
6 Plate 112436051/0
7 Spring 122450494/0
8 Rear Wheel Axle 381302851/0
9 Wheels Rear Adj. Lever 381003356/0
10 Pin 122534131/0
11 Spring 122446192/0
12 Nut 112154510/0
13 Support 322785500/0
14 Gear Box 181003134/0
15 Pin 122753000/0
16 Right Pinion 322570138/0
17 Left Pinion 322570139/0
18 Seeger 112608600/0
19 Bushing 322042066/0
20 Washer 112521371/0
22 Trapezoidal Belt 135063800/0
23 Spring 122430254/0
24 Bracket 322778473/1
25 Screw 112728699/0
