Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > WG4815P WG4815P, 968999278, 2008-06 > MOWER DECK / CUTTING DECK
Back to

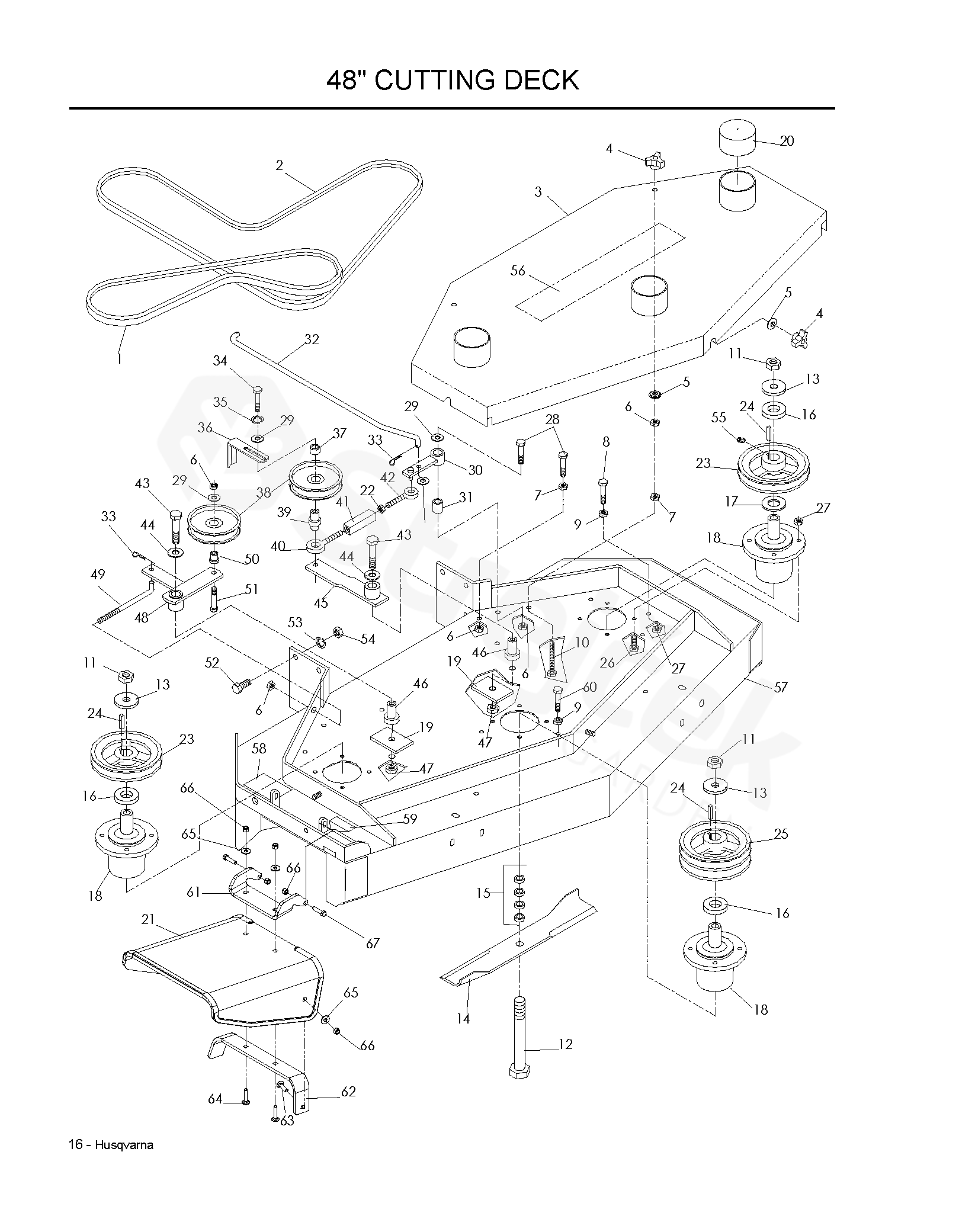

MOWER DECK / CUTTING DECK
WG4815P WG4815P, 968999278, 2008-06
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For WG4815P, 968999278, 2008-06
1 BELT 539100024
2 BELT 539101958
3 BELT SHIELD 48" 539104562
4 KNOB, THREE PRONG 539102070
5 WASHER 539102056
6 MATICE 539990546
7 NUT 539990613
8 HCS 5/16 X 3 539990553
9 LOCK NUT 539990585
10 TAPBOLT 3/8C X 4 1/2 539102334
11 NUT 5/8F HEX 539976980
12 HCS 5/8F X 9
CENTER BLADE 		539101100
13 WASHER 539102243
14 BLADE 539100340
15 BLADE SPACERS 539976436
16 SPACER 539102245
17 BUSHING 539102675
18 HOUSING ASSY 539107418
19 PLATE 539102236
20 TUBE CAP 539102320
21 CHUTE. RUBBER DISCHARGE WB 539130903
22 MATICE 539990196
23 PULLEY W/SETSCREWS 539976398
24 KEY 539101995
25 PULLEY, DOUBLE W/SETS 539101819
26 SCREW 539990209
27 NUT 539990184
28 SCREW 539990629
29 PODLOŽKA 539990517
30 ENGAGEMENT ARM 539101979
31 BUSHING, SLEEVE 539101836
32 BLADE ROD 48" 539102031
33 PIN RETAINING SCREW 539976988
34 SCREW 539990637
35 PODLOŽKA 539990118
36 SNUBBER 539100075
37 SPACER 539102656
38 PULLEY 539976688
39 EYEBOLT PIVOT 539101980
40 EYEBOLT, LH
LH 		539101981
41 TURNBUCKLE 539101983
42 BOLT
RH 		539101982
43 SCREW 539101332
44 WASHER 539990550
45 ARM WELDMENT 539101978
46 SPINDLE 539101231
47 NUT 539101331
48 IDLER ARM, AUX. 539102237
49 TENSION ROD 539102337
50 BUSHING 539976695
51 SCREW 539990730
52 SCREW 539101175
53 PODLOŽKA 539990247
54 NUT 7/16C HEX 539990449
55 SCREW 539976956
56 DECAL 539111047
57 DECAL 539104564
58 DECAL 539105746
59 DECAL 539913010
60 BOLT 539102335
61 PIVOT BRACKET - CHUTE 539130916
62 BRKT. REINF-CHUTE WB 539130922
63 SCREW 539100472
64 RHSNB 5/16-18 X 1-1/2 GR 5 ZD 539102933
65 PODLOŽKA 539990692
66 MATICE 539990717
67 SCREW 539990627
