Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > W21 SK W21 SK, 968999284, 2007-03 > TRANSMISSION
Back to

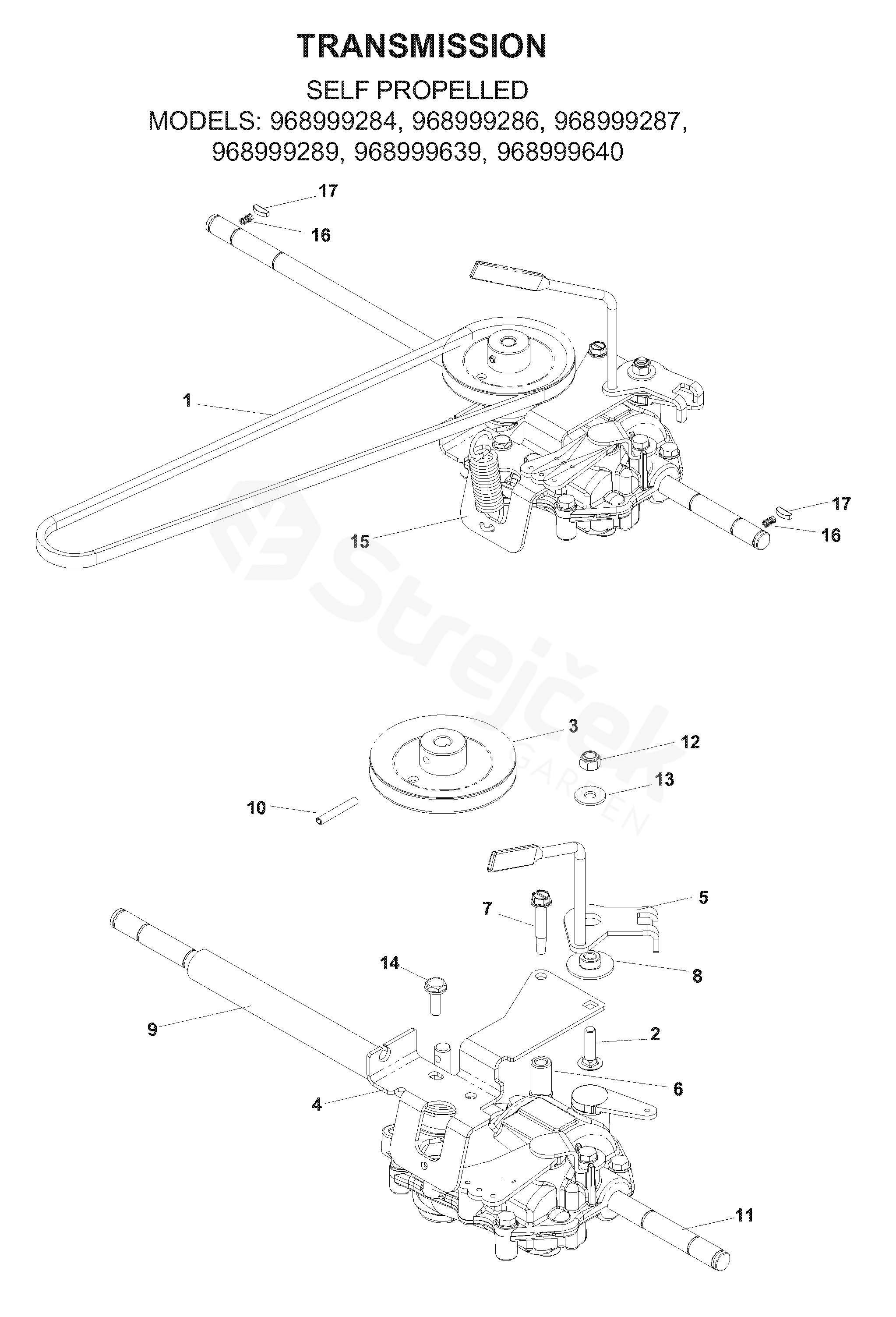

TRANSMISSION
W21 SK W21 SK, 968999284, 2007-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For W21 SK, 968999284, 2007-03
1 BELT 539111531
2 BOLT 539109800
3 DRIVEN PULLEY 539111528
4 CABLE 539111529
5 SHIFTER 539111535
6 TRANSMISSION SPACER 539111877
7 HCS, 1/4-14 X 1 1/2, SELF TAP 539112046
8 PIVOT BUSHING 539112911
9 SHAFT COVER 539112915
10 SPIRAL PIN, 3/16 X 1 1/8 539113100
11 TRANSMISSION W/GREASE SLOT, T13C 539113139
12 MATICE 539976978
13 WASHER 539990598
14 SCREW, 1/4-14 X 3/4, SELF TAP 539991081
15 SPRING, TRANSMISSION 539111890
16 KEY SPRING 539111891
17 WOODRUFF KEY, SPECIAL 539111893
