Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > WH5221EFQ WH5221EFQ, 968999599, 2006-12 > HYDRAULIC PUMP - MOTOR
Back to

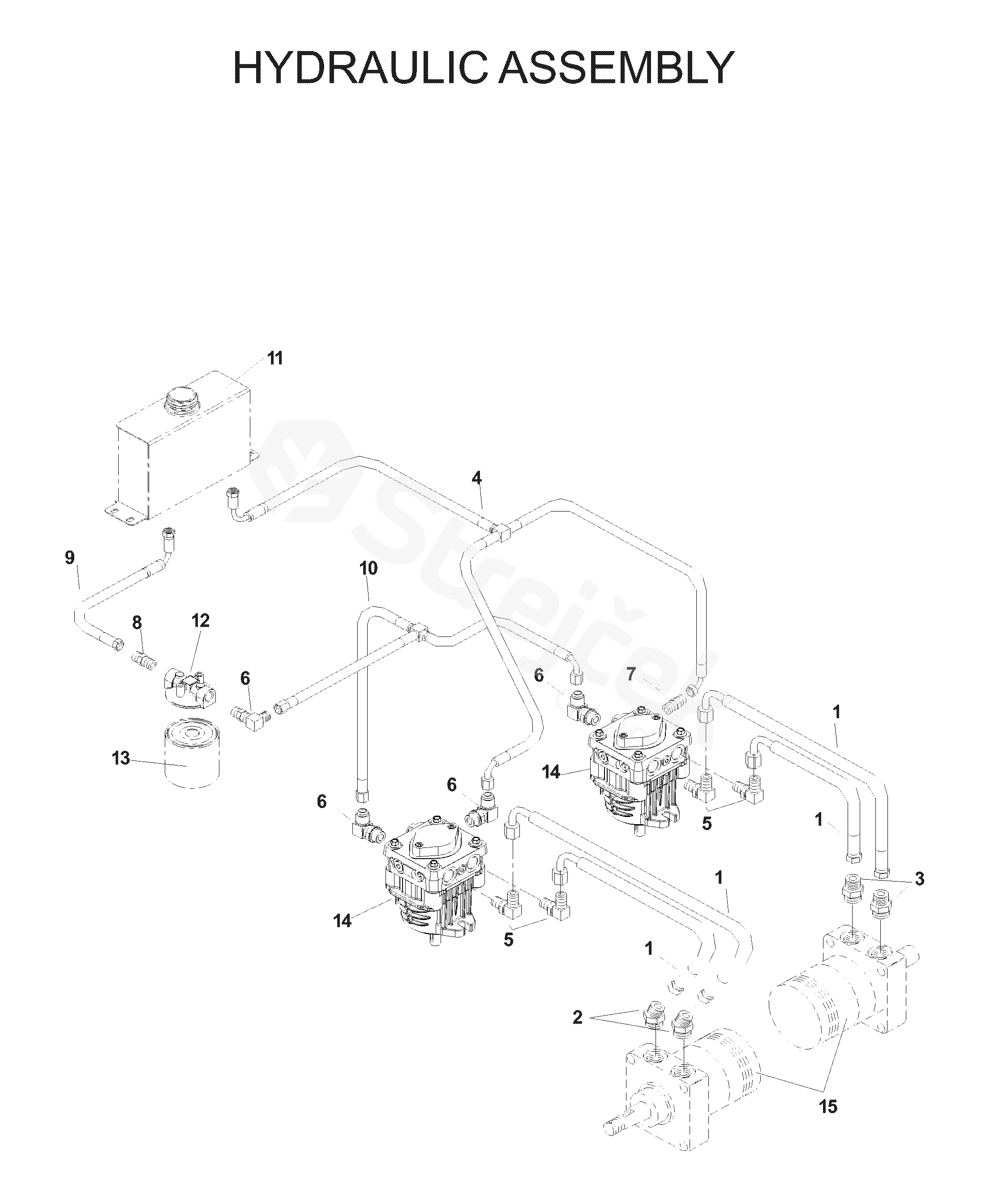

HYDRAULIC PUMP - MOTOR
WH5221EFQ WH5221EFQ, 968999599, 2006-12
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For WH5221EFQ, 968999599, 2006-12
1 HOSE, 1/2" HYDRAULIC 539101245
2 ELBOW 539101243
3 CONNECTOR 539101239
4 INLET 539102229
5 ELBOW 539101242
6 CONNECTION 539101238
8 CONNECTION 539103316
9 HOSE 539101248
10 RETURN TEE HOSE 539102230
11 OIL TANK 539105985
12 FILTER COVER 539101165
13 FILTER 539102606
14 PUMP 539108246
15 WHEEL MOTOR 539103527
SEAL KIT - GEN I 539103664
