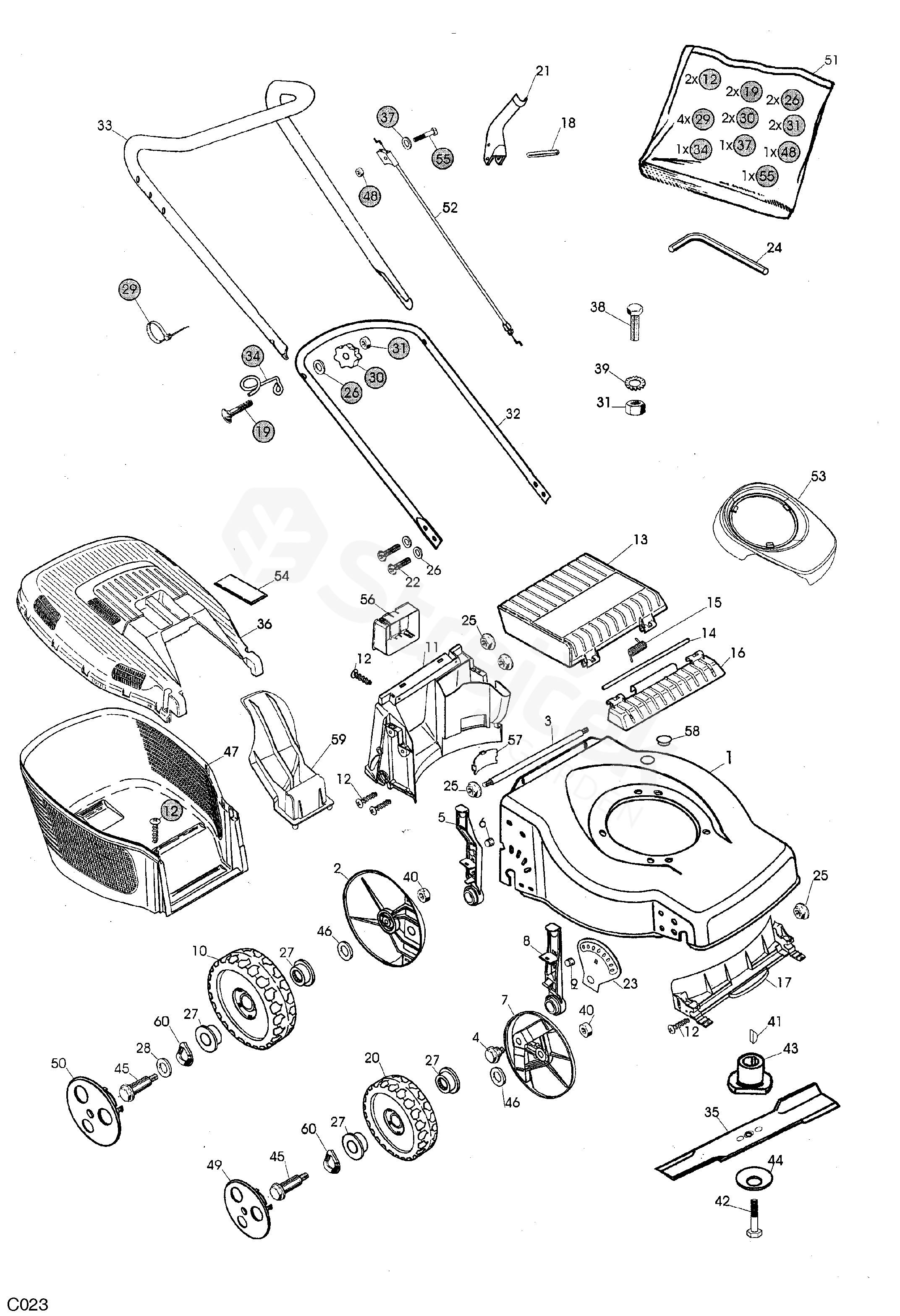

MULTIMOWER 474 MULTIMOWER 474 (2002)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For MULTIMOWER 474 (2002)

1	Red Deck	1117-1308-02
2	Wheel Plate	1117-3259-01
3	Reinforcement	1117-1219-01
4	Shoulder Bolt	1117-1182-01
5	Lever, Height Adjustment Pos 6 incl.	1117-3261-01
6	Pin	1117-1214-01
7	Wheel Plate	1117-1376-01
8	Lever, Height Adjustment Pos 9 incl.	1117-1228-01
9	Pin	1117-1215-01
10	Wheel	1111-3238-01
11	Rear Baffle	1117-3008-01
12	Screw	9836-9516-12
13	Rear Flap (Black)	1117-1156-02
14	Shaft For Rear Flap	1117-1143-01
15	Spring-Rear Flap	1117-1126-01
16	Rear Flap Holder (Black)	1117-1155-02
17	Front Baffle	1117-3007-01
18	Locating Pin	9595-0258-00
19	Screw	9898-0845-12
20	Wheel	1111-3163-01
21	Opc Lever (Red)	1117-3221-01
22	Bolt	1117-1364-01
23	Sector	1117-1213-01
24	Socket Wrench	1117-1355-01
25	Nut	1117-1131-01
26	Washer	9699-0028-02
27	Ball Bearing	9549-0053-00
28	Washer	9699-0037-02
29	Cable Holder	9579-0008-00
30	Knob	1117-3194-01
31	Nut	9799-0831-02
32	Handle tube-lower	1117-1149-01
33	Handle, Upper Part	1117-1095-01
34	USE 1117-1392-01	1117-1116-01
35	Blade	1117-3354-01
36	Grassbag-Upper (Black) Pos 54 incl.	1117-1157-02
37	Washer	9699-0025-02
38	Screw	9997-0830-16
39	Lock washer	9678-0009-02
40	Nut	9716-0831-02
41	Key	9600-0014-00
42	Screw	9987-5251-12
43	Blade Holder	1117-1362-01
44	Spring washer	1117-1065-01
45	Wheel Bolt	1111-3164-01
46	Washer	9699-0062-02
47	Lower Grass Bag (Black)	1117-1218-01
48	Nut	9799-0631-02
49	Hub Cap-Grey	1111-2804-06
50	Hub Cap (Grey)	1111-2815-06
51	Assy Kit	1117-3030-01
52	Opc Cable	1117-1183-01
53	Engine Cover-Black	1111-3289-01
54	Cap	1117-1135-02
55	Screw	9948-0640-16
56	Battery Holder	1111-2927-01
57	Cap	1117-1148-01
58	Cap	1117-1119-01
59	Mulch Plug (Yellow)	1117-3001-01
60	Washer	9694-0003-00
