Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > LC247 LC247, 967345201, 2016-11 > MOWER DECK / CUTTING DECK
Back to

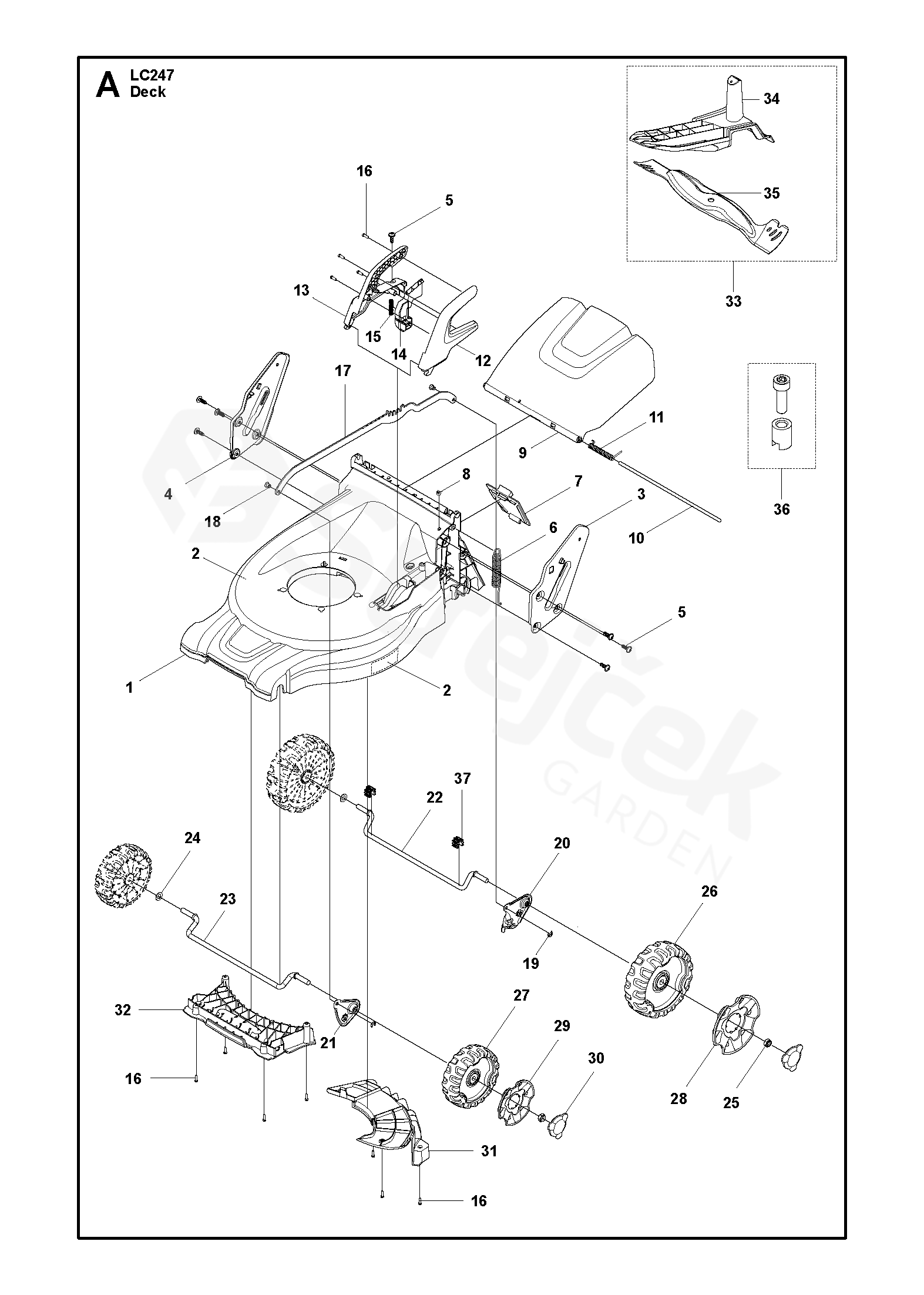

MOWER DECK / CUTTING DECK
LC247 LC247, 967345201, 2016-11
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LC247, 967345201, 2016-11
1 CHASSIS 587151003
2 LABEL 584805301
3 HANDLE SUPPORT 587212102
4 HANDLE SUPPORT 587212302
5 SCREW ITXPANT 578175802
6 SPRING 587674401
7 COVER 587095402
8 PÁSEK 579317401
9 HATCH 587101403
10 AXLE 586984601
11 SPRING 587101501
12 COVER HALF 587203701
13 COVER HALF 587203801
14 BUTTON 587697401
15 SPRING 589597601
16 SCREW ITXPANT 502435301
17 ROD 587160801
18 SHAFT 587687001
19 E-CLIP 735311220
20 LINK ARM 587674301
21 LINK ARM 587072401
22 WHEEL AXLE 587072601
23 WHEEL AXLE 587072602
24 PODLOŽKA 577092801
25 NUT 587990901
26 WHEEL ASSY 584611603
27 WHEEL ASSY 587631501
28 HUB CAP 584159301
29 HUB CAP 587632701
30 NUT CAP 584159401
31 BELT COVER 587199902
32 SKID PLATE 588202701
33 MULCH KIT 589214801
34 MULCH PLUG 587702701
35 MOWER BLADE 588275701
36 THREAD INSERT 589018701
37 DISTANCE 583055001
