Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > LC247 S LC247 S, 967345301, 2016-11 (New gearbox) > MOWER DECK / CUTTING DECK
Back to

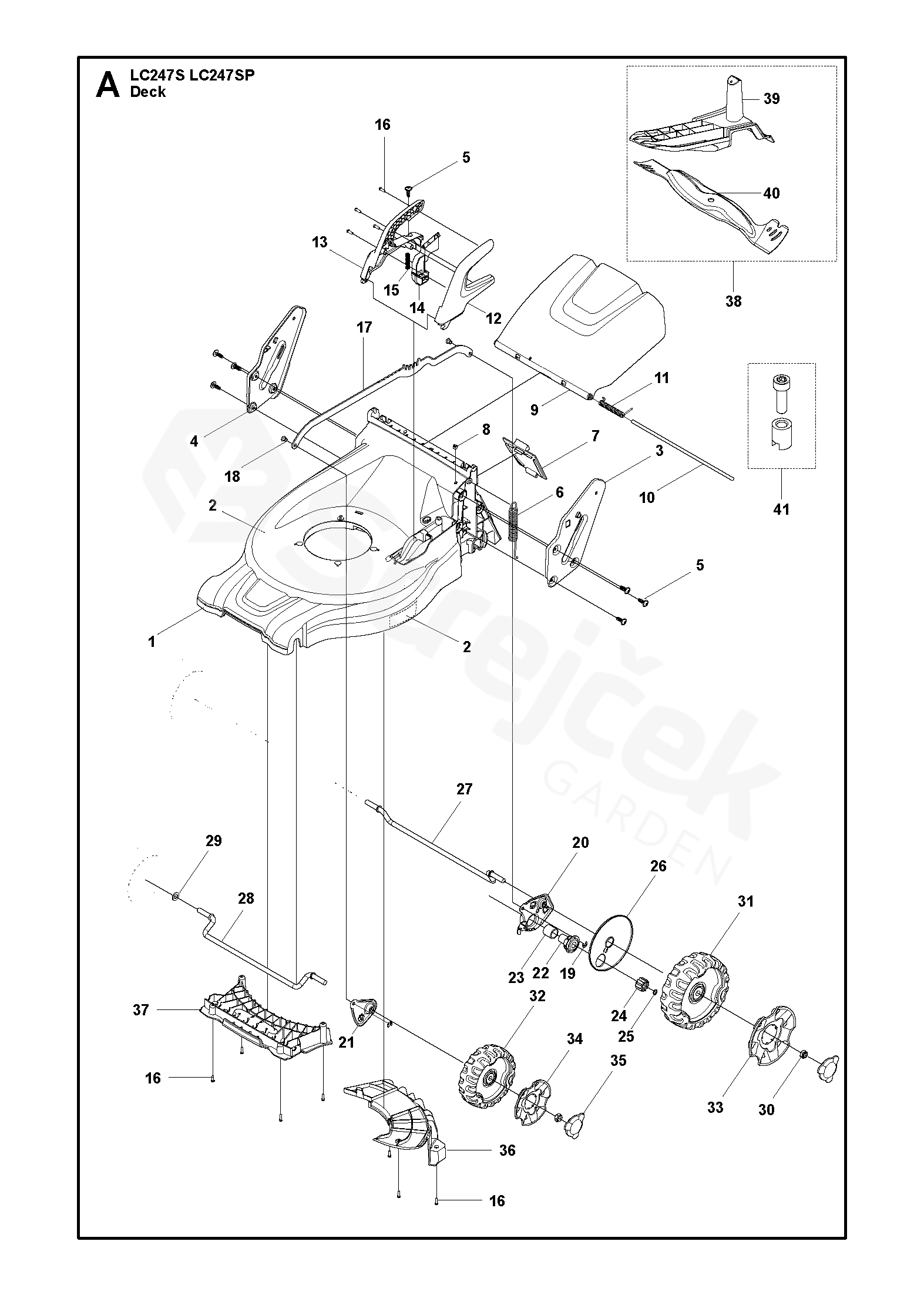

MOWER DECK / CUTTING DECK
LC247 S LC247 S, 967345301, 2016-11 (New gearbox)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LC247 S, 967345301, 2016-11 (New gearbox)
1 CHASSIS 587151003
2 LABEL 584805301
3 HANDLE SUPPORT 587212102
4 HANDLE SUPPORT 587212302
5 SCREW ITXPANT 578175802
6 SPRING 587674401
7 COVER 587095402
8 PÁSEK 579317401
9 HATCH 587101403
10 AXLE 586984601
11 SPRING 587101501
12 COVER HALF 587203701
13 COVER HALF 587203801
14 BUTTON 587697401
15 SPRING 589597601
16 SCREW ITXPANT 502435301
17 ROD 587160801
18 SHAFT 587687001
19 E-CLIP 735311220
20 LINK ARM 587072501
21 LINK ARM 587072401
22 BUSHING 501861001
23 TUBE 579682802
24 PASTOREK 544342301
25 CIRCLIP 735311401
26 DUST COVER 587204002
27 WHEEL AXLE 587072601
28 WHEEL AXLE 587072602
29 PODLOŽKA 577092801
30 NUT 587990901
31 WHEEL ASSY 582305701
32 WHEEL ASSY 587631501
33 HUB CAP 584159301
34 HUB CAP 587632701
35 NUT CAP 584159401
36 BELT COVER 587199902
37 SKID PLATE 588202701
38 MULCH KIT 589214801
39 MULCH PLUG 587702701
40 MOWER BLADE 588275701
41 THREAD INSERT 589018701
