Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > HD725E HD725E, 96143008702, 2013-12 > DRIVE
Back to

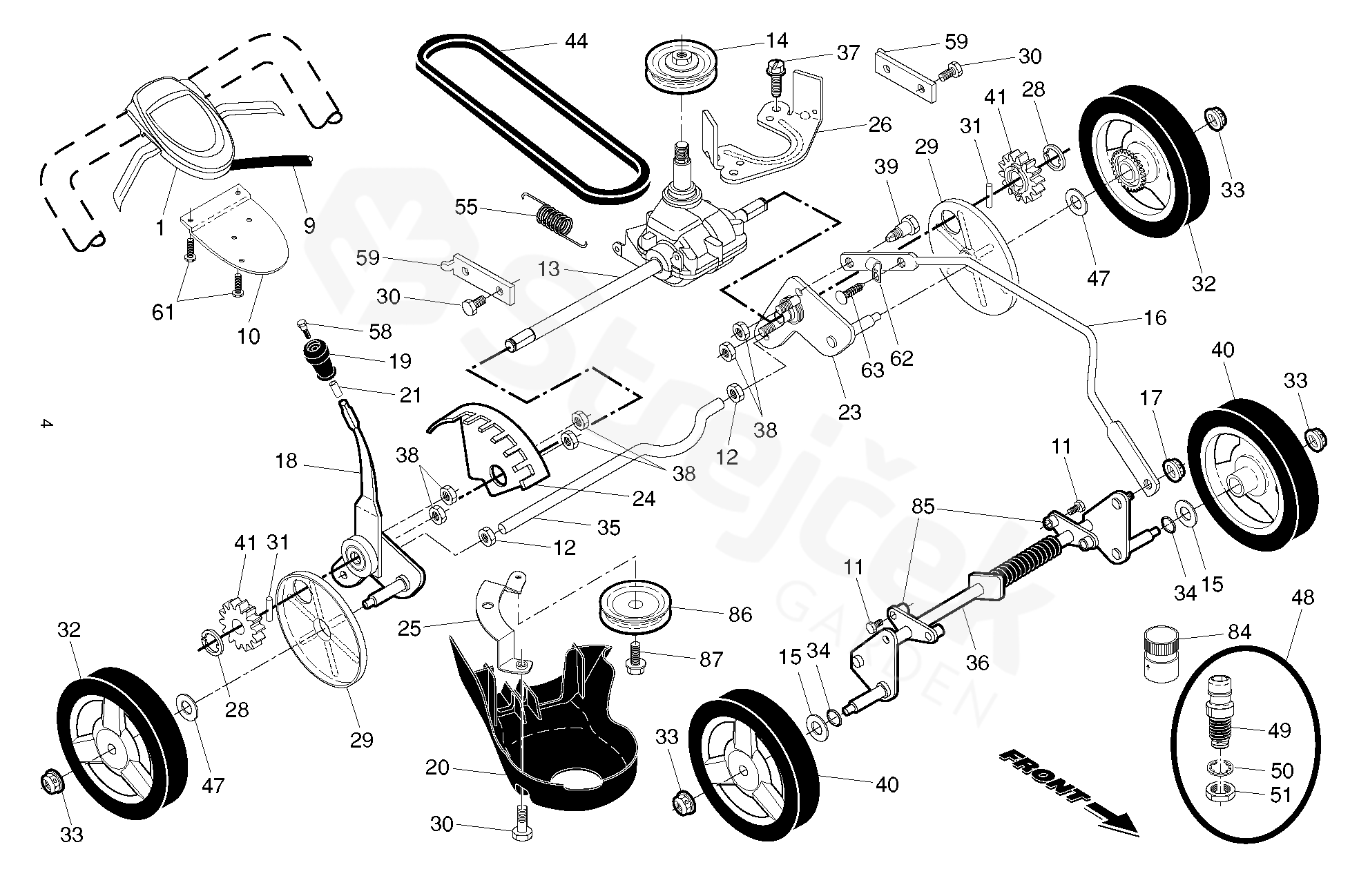

DRIVE
HD725E HD725E, 96143008702, 2013-12
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For HD725E, 96143008702, 2013-12
1 CONTROL
INCLUDES CABLE 		581950505
9 CABLE 581952101
10 BRACKET 532432790
11 SCREW 817411312
12 NUT 873940800
13 TRANSMISSION 581680801
14 PULLEY 532194128
15 PODLOŽKA 532088348
16 ROD 532430030
17 BOLT 532751153
18 KIT 532438536
19 KNOB 532433996
20 BELT COVER 580806901
21 SCREW 532435242
23 ADJUSTER
LH 		532437870
24 BRACKET 532433511
25 BRACKET 581313802
26 KEEPER 532426066
28 E-CLIP 812000058
29 DUST COVER 581840401
30 BOLT 817000510
31 PAWL, DRIVE 532404845
32 WHEEL
REAR 		581685101
33 MATICE 532409148
34 O-KROUŽEK 532197480
35 REAR AXLE
REAR 		532430598
36 FRONT AXLE ASSY
FRONT 		532442207
37 SCREW 532163409
38 MATICE 532191730
39 SHOULDER BOLT SEMI GIMLET PT. 532407059
40 WHEEL
FRONT 		532410831
41 PINION 532404835
44 BELT 532406557
47 PODLOŽKA 532067725
48 KIT 532438489
49 PORT 532434994
50 LOCKWASHER 532415585
51 LOCKING NUT 532415586
55 SPRING 581351301
58 SCREW 532435241
59 BRACKET 532442113
61 SCREW 532181698
62 CLIP 532197991
63 FASTENER 532428124
84 COUPLING 532416405
85 BRACKET 532439077
86 PULLEY 580364301
87 SCREW 581127601
