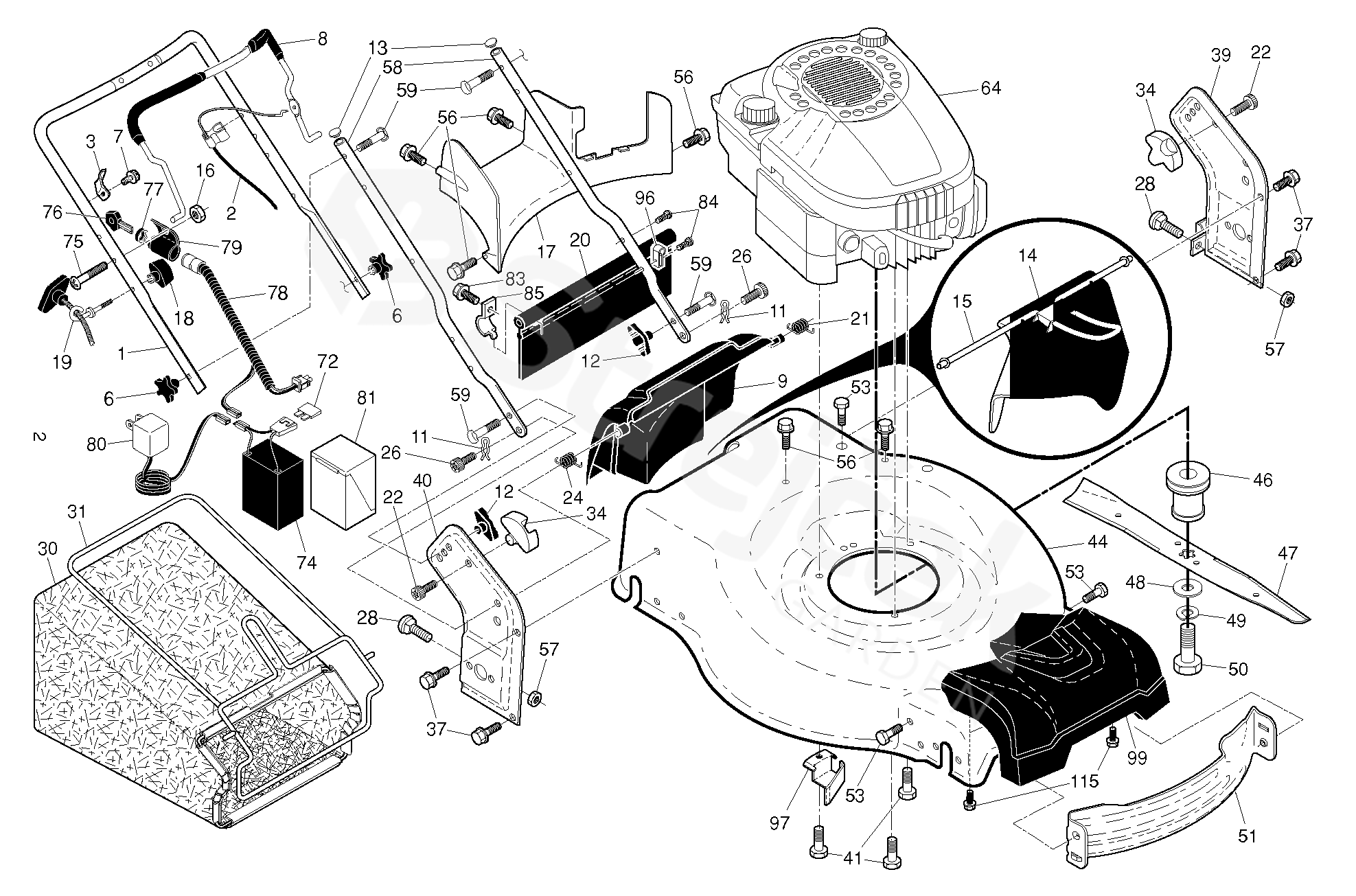

Spare parts - Partlist - HD725E HD725E, 96143008702, 2013-12 - FRAME & ENGINE

Everything for your machines

HD725E HD725E, 96143008702, 2013-12

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For HD725E, 96143008702, 2013-12

1	HANDLE	580638706
2	CABLE	532427497
3	BRACKET	532430034
6	KNOB	532182398
7	SCREW	532178848
8	BAIL	580849102
9	DOOR	532431390
11	HAIR PIN COTTER	532425575
12	KNOB	532191938
13	PLUG	532437516
14	CHUTE	532437132
15	HANDLE	532437273
16	MATICE	532132004
17	BAFFLE	581782101
18	KNOB	581912601
19	GUIDE	581902101
20	DEFLECTOR	532444501
21	SPRING LH	532419949
22	SCREW	532141841
24	SPRING RH	532419948
26	SCREW	532419945
28	BOLT	586212501
30	GRASS BAG ASSY	580947315
31	BAG FRAME	585054702
34	BRACKET	532438134
37	BOLT	817000510
39	BRACKET LH LH	585900703
40	BRACKET RH RH	585900803
41	BOLT	532150406
44	HOUSING ASSY	581708330
46	ADAPTER	581851501
47	BLADE	532421825
48	PODLOŽKA	532851074
49	PODLOŽKA	532850263
50	SCREW	532851084
51	BAFFLE	532430599
53	SCREW	532437345
56	SCREW	817411312
57	MATICE	532155377
58	HANDLE	532441197
59	HANDLE BOLT	532191574
64	W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701 B&S 128M05-0122-F1 FOR SERVICE & PARTS 1-800-233-3723	000000000
72	FUSE	532425937
74	BATTERY	532431584
75	SCREW	532186159
76	KEY	532180331
77	NUT CAP	532194848
78	HARNESS	532431713
79	HARNESS	532194847
80	BATTERY CHARGER	532428626
81	COVER	585152402
83	SCREW HEX HEAD RL508A/B	532750097
84	FASTENER	532428124
85	BRACKET	532434530
96	CLIP	532197991
97	BRACKET	581115302
99	FRONT COVER ASSY	585668702
115	SCREW EHHFT	584299401
