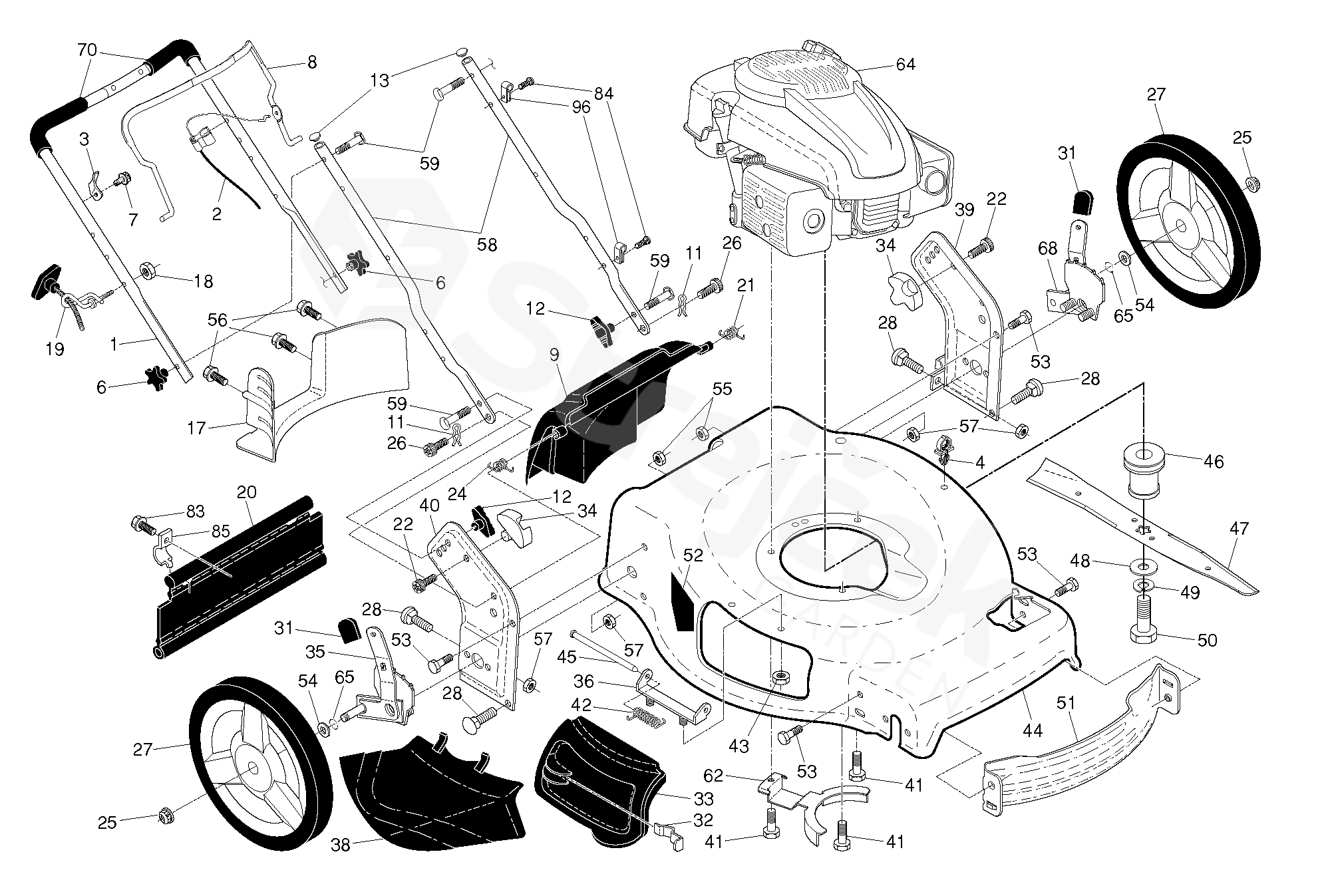

Spare parts - Partlist - HU600F HU600F, 376970, 2010-12 - FRAME & ENGINE

Everything for your machines

HU600F HU600F, 376970, 2010-12

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For HU600F, 376970, 2010-12

1	HANDLE ASSY	532427658
2	STOP CABLE	532420939
3	BRACKET	532430034
4	CLIP	532145006
6	KNOB	532182398
7	SCREW	532750634
8	BAIL	532433430
9	DOOR	532431390
11	HAIR PIN COTTER	532425575
12	KNOB	532191938
13	PLUG	532437516
17	BAFFLE	532427307
18	MATICE	532132004
19	GUIDE	532194788
20	DOOR	532429157
21	SPRING LH	532419949
22	SCREW	532141841
24	SPRING RH	532419948
25	NUT	532409149
26	SCREW	532419945
27	KOLO KOMPL.	532410815
28	BOLT	872250505
31	KNOB	532701037
32	LATCH	532441192
33	MULCH DOOR	532419927
34	BRACKET	532438134
35	ADJUSTER RH	532431140
36	HINGE	532175735
38	DEFLECTOR	532426129
39	HANDLE BRACKET LH	532440525
40	HANDLE BRACKET RH	532440526
41	BOLT	532150406
42	HINGE	532193000
43	MATICE	532191730
44	HOUSING	532440510
45	ROD	532175650
46	ADAPTER	532421782
47	BLADE.22PLUS	532420463
48	PODLOŽKA	532851074
49	PODLOŽKA	532850263
50	SCREW	532851084
51	BAFFLE	532430599
52	DECAL	532404763
53	BOLT	817000510
54	PODLOŽKA	532088348
55	MATICE	532191730
56	SCREW	817411312
57	MATICE	532155377
58	HANDLE	532441197
59	HANDLE BOLT	532191574
62	BELT GUARD	532425711
64	TBD Download from your local supportsite KOHLER XT-149-0217-ED FOR SERVICE & PARTS 1-800-544-2444	0
65	O-KROUŽEK	532197480
68	ADJUSTER LH	532431141
70	HANDLE	532182748
83	SCREW HEX HEAD RL508A/B	532750097
84	FASTENER	532428124
85	BRACKET	532434530
96	CLIP	532197991
