Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > LC53 EE LC53 Ee, 96666910400, 2011-01 > HANDLE
Back to

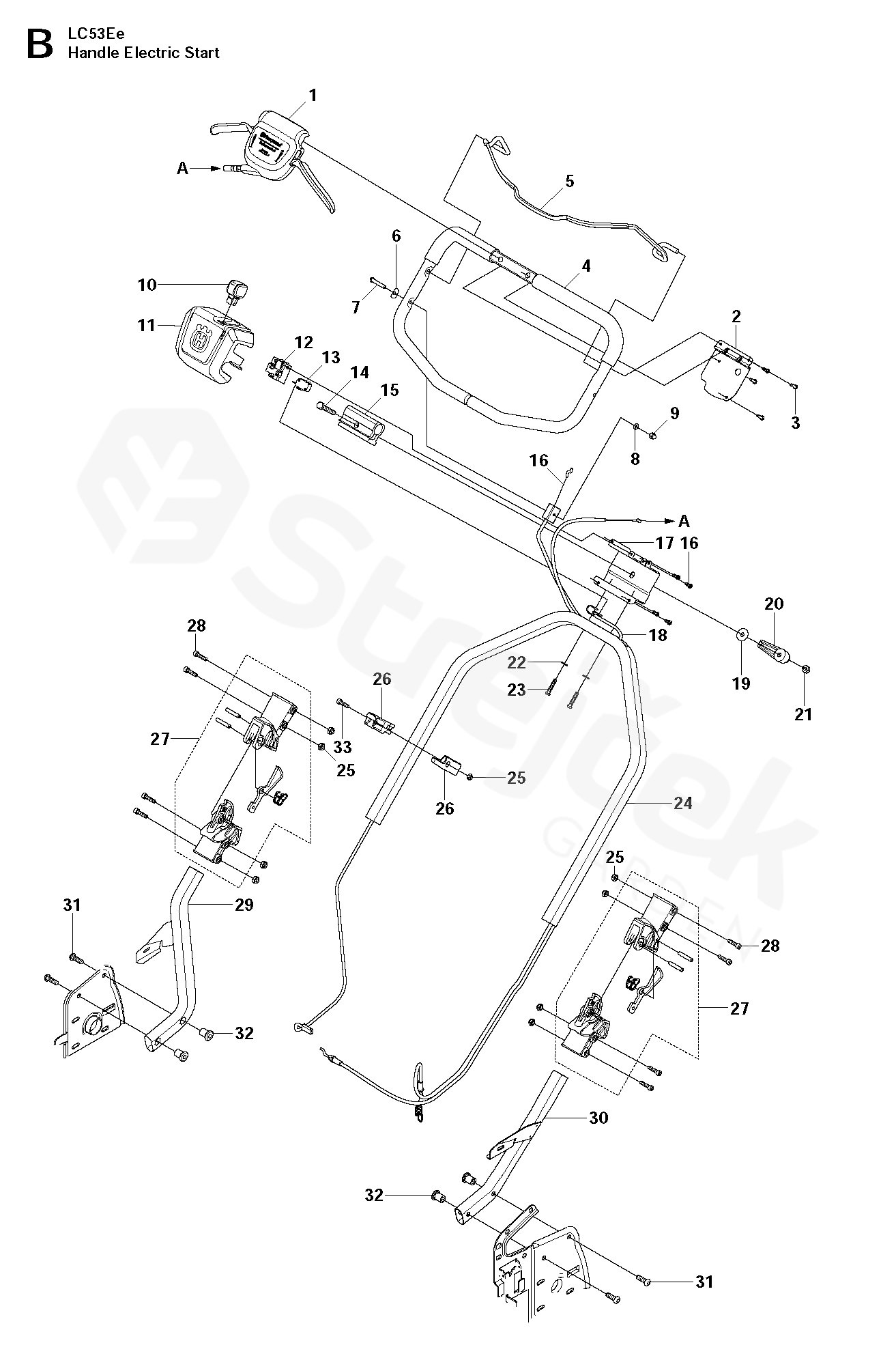

HANDLE
LC53 EE LC53 Ee, 96666910400, 2011-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LC53 Ee, 96666910400, 2011-01
1 CONTROL 577224001
2 BRACKET 577701401
3 SCREW ITXPANT 574391401
4 HANDLE ASSY 576929501
5 BAIL ARM 576929201
6 PODLOŽKA 531204961
7 SCREW ITXPANTT 505557702
8 PODLOŽKA 734115201
9 CAP NUT 502305001
10 IGNITION KEY 522036001
11 COVER 505068002
12 ELECTRIC START 510088301
13 MICRO SWITCH 525486301
14 SCREW EHHM 574886401
15 HANDLEBAR BRACKET 574566701
16 CABLE 522937402
17 SUPPORT PLATE 505070601
18 ELECTRIC CABLE 523898101
19 PODLOŽKA 734116541
20 KNOB 574852701
21 HEXAGON NUT 503221011
22 WASHER 505198401
23 SCREW ITXPANTT 525448801
24 HANDLE 505896001
25 LOCK NUT 522669302
26 STARTER CORD GUIDE 510282301
27 HINGE 574230701
28 SCREW IHSCM 725537201
29 HANDLE LOWER ASSY 510408801
30 HANDLE LOWER ASSY 510408902
31 SCREW ITXPANTT 505524603
32 NUT 525514801
33 SCREW IHSCM 725537001
