Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > HU700F HU700F, 96145000900, 2012-11 > DRIVE
Back to

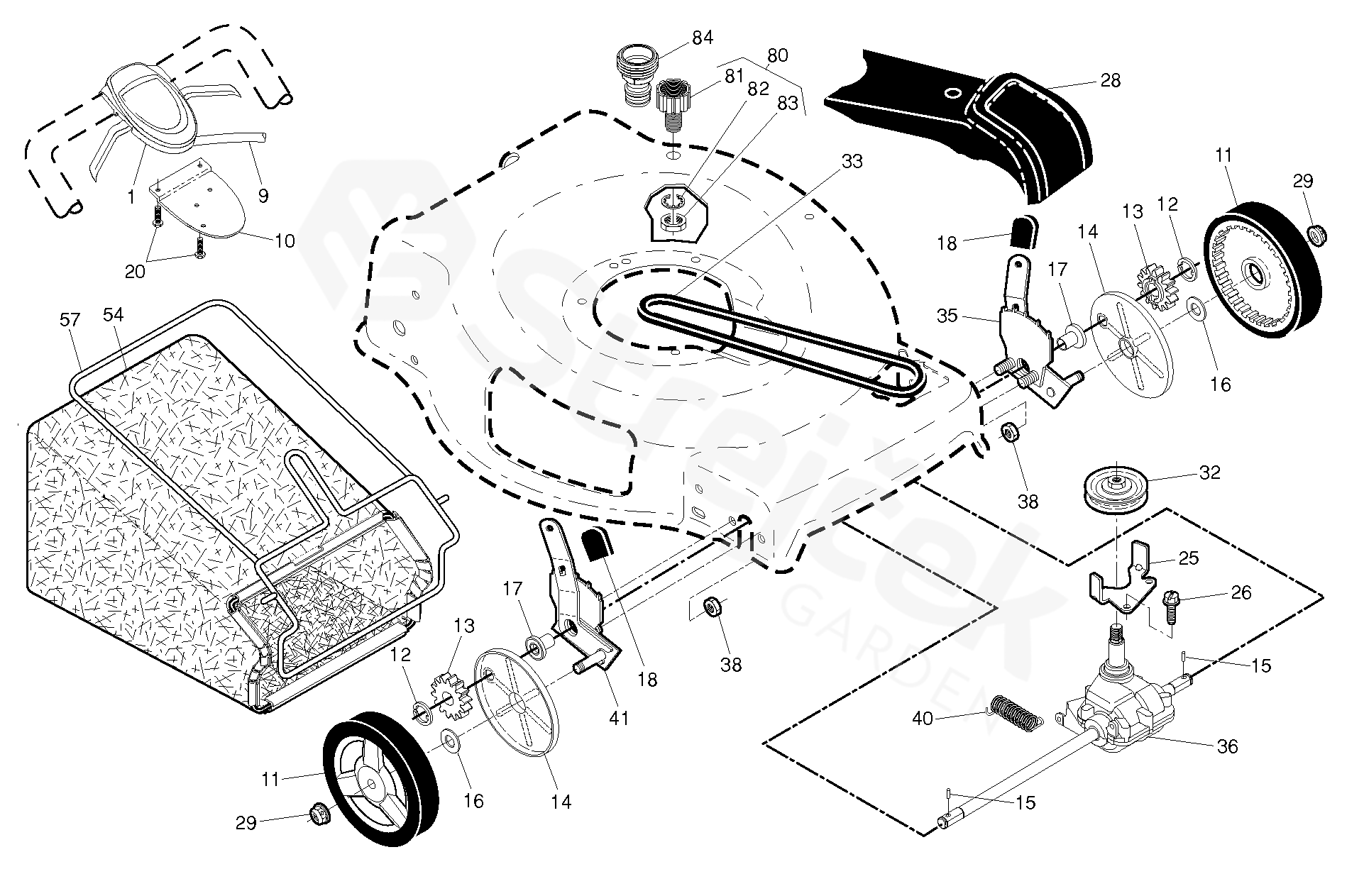

DRIVE
HU700F HU700F, 96145000900, 2012-11
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For HU700F, 96145000900, 2012-11
1 DRIVE CONTROL 579708924
9 CABLE 532431649
10 BRACKET 532432790
11 WHEEL 532411081
12 E-CLIP 812000058
13 PASTOREK 532403849
14 DUST COVER 532189403
15 PAWL, DRIVE 532404845
16 PODLOŽKA 532067725
17 BEARING 532421836
18 KNOB 532701037
20 SCREW 532181698
25 BRACKET 532431711
26 SCREW 532163409
28 DRIVE COVER 532421097
29 MATICE 532409148
32 PULLEY 532443262
33 V-BELT 532426609
35 ADJUSTER 532431144
36 GEARBOX ASSY 532424657
38 MATICE 532191730
40 PRUŽINA 532406558
41 ADJUSTER 532431142
54 GRASS BAG ASSY 580947307
57 GRASSBAG 532419951
80 KIT 532438489
81 PORT 532434994
82 LOCKWASHER 532415585
83 LOCKING NUT 532415586
84 COUPLING 532416405
