Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > HU775HW HU775HW, 96143007701, 2011-03 > DRIVE
Back to

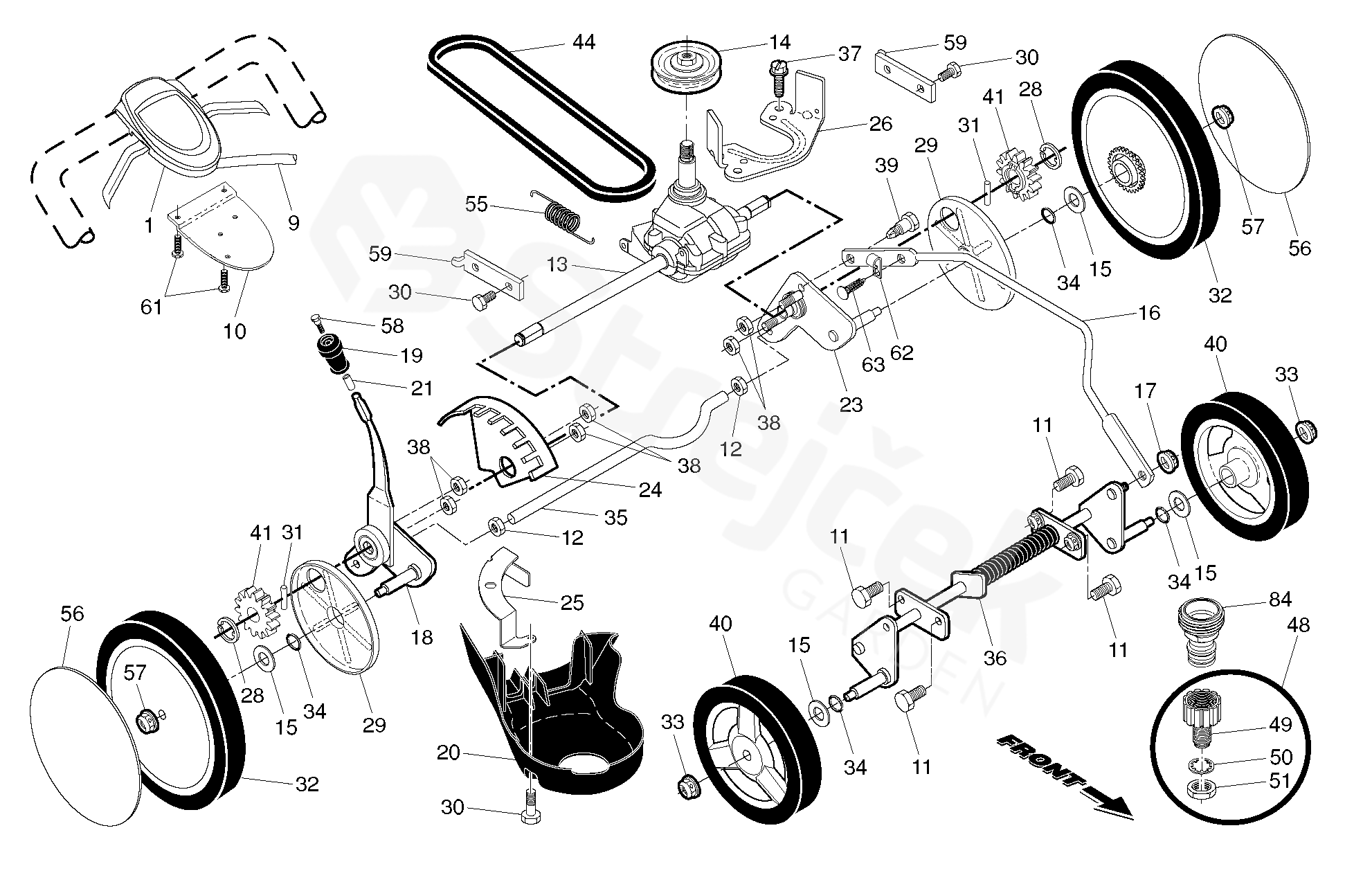

DRIVE
HU775HW HU775HW, 96143007701, 2011-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For HU775HW, 96143007701, 2011-03
1 CONTROL
INCLUDES CABLE 		532430995
9 DRIVE CABLE 532431650
10 BRACKET 532432790
11 SCREW 817060408
12 NUT 873940800
13 TRANSMISSION 532434564
14 PULLEY 532194128
15 PODLOŽKA 532088348
16 ROD 532430030
17 BOLT 532751153
18 KIT 532441420
19 KNOB 532433996
20 COVER 532427023
21 SCREW 532435242
23 ADJUSTER
LH 		532437865
24 BRACKET 532433511
25 BRACKET 532426065
26 KEEPER 532426066
28 E-CLIP 812000058
29 DUST COVER 532428781
30 BOLT 817000510
31 PAWL, DRIVE 532404845
32 WHEEL
REAR 		532441330
33 MATICE 532409148
34 O-KROUŽEK 532197480
35 REAR AXLE
REAR 		532430598
36 FRONT AXLE ASSY
FRONT 		532441329
37 SCREW 532163409
38 MATICE 532191730
39 SHOULDER BOLT SEMI GIMLET PT. 532407059
40 WHEEL
FRONT 		532441298
41 PINION 532428783
44 BELT 532421527
48 KIT 532438489
49 PORT 532434994
50 LOCKWASHER 532415585
51 LOCKING NUT 532415586
55 PRUŽINA 532406558
56 HUB CAP 532441333
57 NUT 532409149
58 SCREW 532435241
59 BRACKET 532442113
61 SCREW 532181698
62 CLIP 532197991
63 FASTENER 532428124
84 COUPLING 532416405
