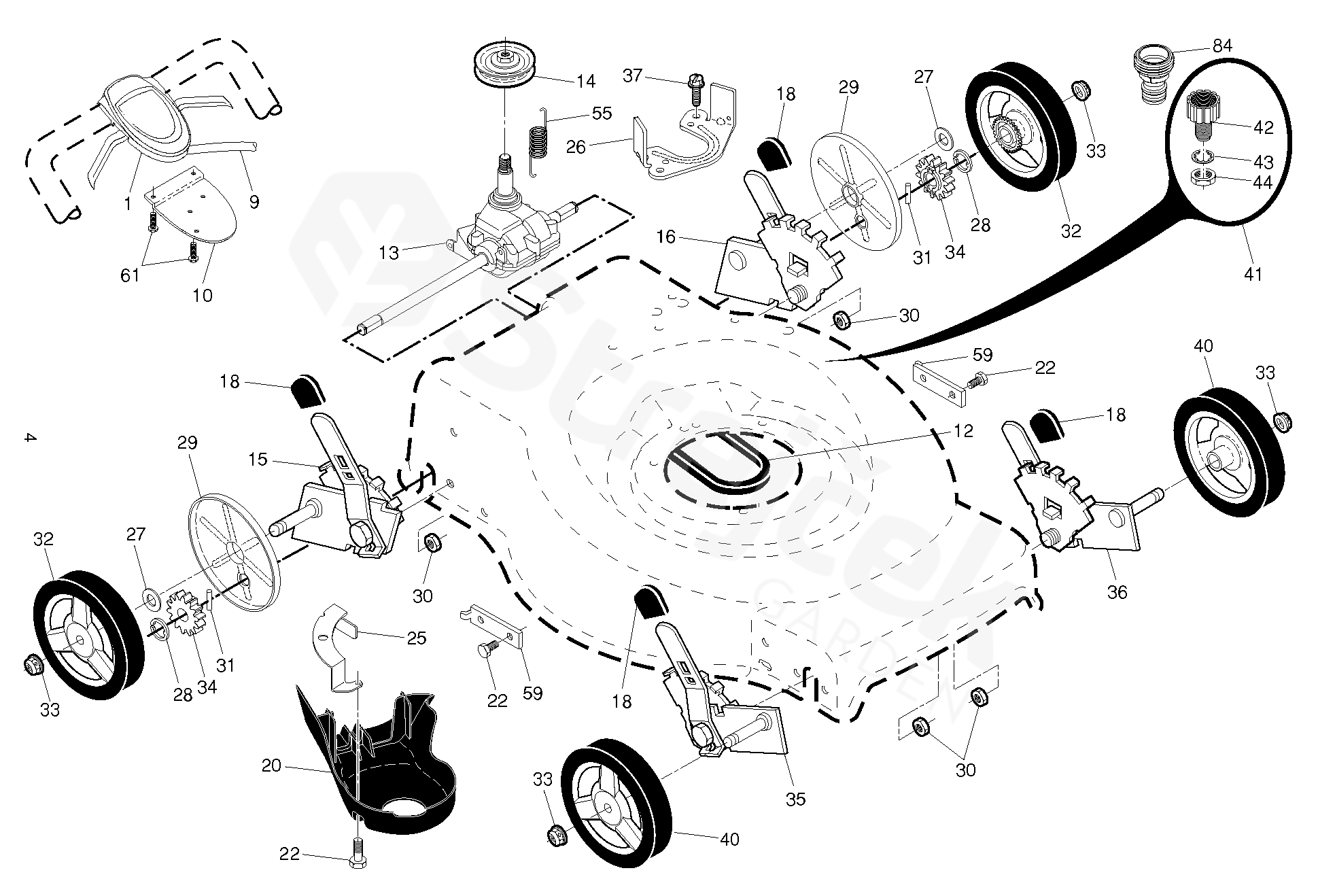

Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > HU775L HU775L, 96145000800, 2011-12 > DRIVE
Back to
DRIVE
HU775L HU775L, 96145000800, 2011-12
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For HU775L, 96145000800, 2011-12
1 CONTROL 532430995
9 DRIVE CABLE 532431650
10 BRACKET 532432790
12 BELT 532421527
13 TRANSMISSION 532434564
14 PULLEY 532194128
15 ADJUSTER RH
RH 		532437873
16 ADJUSTER LH
LH 		532437874
18 KNOB 532701037
20 COVER 532427023
22 BOLT 817000510
25 BRACKET 532426065
26 KEEPER 532426066
27 PODLOŽKA 532067725
28 E-CLIP 812000058
29 DUST COVER 532189403
30 MATICE 532191730
31 PAWL, DRIVE 532404845
32 WHEEL 532442823
33 MATICE 532409148
34 PINION 532404835
35 ADJUSTER RH
RH 		532437872
36 ADJUSTER LH
LH 		532437871
37 SCREW 532163409
40 WHEEL 532442825
41 KIT 532438489
42 PORT 532434994
43 LOCKWASHER 532415585
44 LOCKING NUT 532415586
55 PRUŽINA 532406558
59 BRACKET 532442113
61 SCREW 532181698
84 COUPLING 532416405
notshown LEVER LEVER ONLY
LEVER ONLY 		581132301
