Spare parts
Everything for your machines
Spare parts
>
Husqvarna
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
R147 R147, 965159101, 2007-04
>
WHEELS & TIRES
Back to
R147
R147, 965159101, 2007-04
WHEELS & TIRES
R147
R147, 965159101, 2007-04

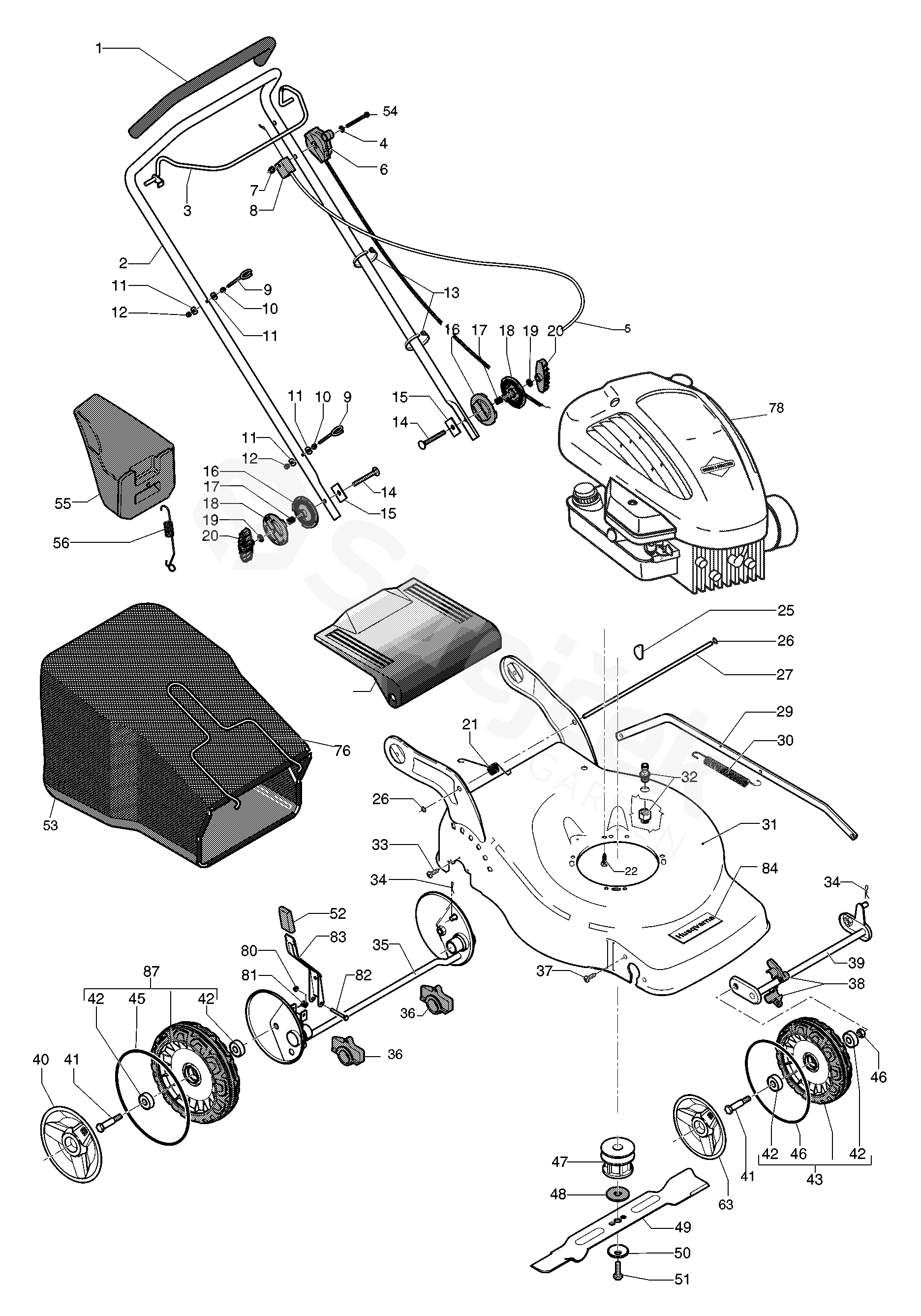

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
R147, 965159101, 2007-04
1
PROTECTOR
531210725
2
HANDLE
531212039
3
LOOP
531205863
4
WASHER
531206666
5
BRAKE WIRE
531213522
6
TRIGGER
531206447
7
NUT
531205213
8
BRACKET
531208043
9
PIN RETAINING SCREW
531205169
10
PODLOŽKA
531204961
11
NUT
531207165
12
NUT
531208491
13
CABLE HOLDER
531205581
14
SCREW
531211480
15
PLATE
531211581
16
SEGMENT
531211473
17
SPRING
531211476
18
SEGMENT
531211474
19
WASHER
531204922
20
KNOB
531205840
21
SPRING
531211840
22
SCREW
531207044
23
PODLOŽKA
531207981
24
NUT
531207982
25
KEY
531204907
26
RETAINING RING
531210824
27
TIE ROD
531211441
28
COVER
531205981
29
ROD
531210587
30
SPRING
531213783
31
DECK
531213897
32
CONNECTOR
531205848
33
SCREW
531208216
34
KOLÍČEK
531206653
35
REAR AXLE
501979801
36
SUPPORT
531205944
37
SCREW
531208844
38
CLAMP
531205057
39
FRONT AXLE
544459101
40
HUB CAP
544443901
41
SCREW
544453401
42
BALL BEARING
504548201
43
WHEEL ASSY
502445001
45
O-RING
544432801
46
O-RING
544433101
47
ADAPTER
531205048
48
WASHER
531207243
49
MOWER BLADE
531211017
50
WASHER
531207237
51
SCREW
531208008
52
KNOB
531207986
53
BAG
531212365
54
SCREW
531206212
55
PLUG
531210617
56
SPRING
531211184
63
HUB CAP
544444001
75
SPACER
531211966
76
FRAME
531213467
80
NUT
531208492
81
PRUŽINA
531210817
82
SCREW
531205212
83
LIFTING LEVER ASSY
501979901
84
DECAL
531212478
87
WHEEL ASSY
502445601
