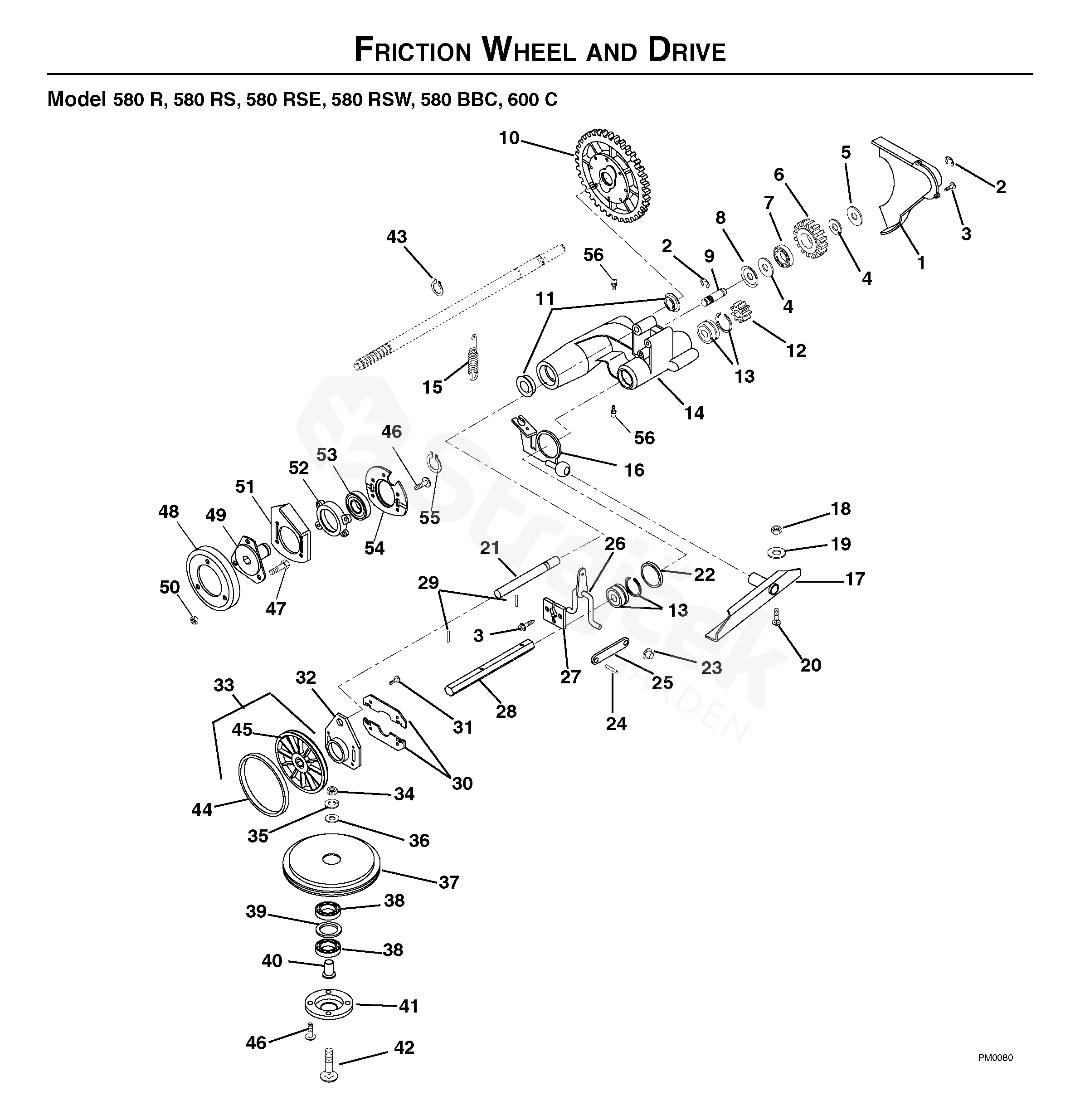

Spare parts - Partlist - 580 R 580 R, 2001-06 - DRIVE

Everything for your machines

580 R 580 R, 2001-06

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 580 R, 2001-06

1	GEAR COVER	606000159
2	RETAINER RING	606000190
3	SCRW TPNG 12-24X.50 HX WSHR HD	606000092
4	WASHER	606000132
5	WASHER FLAT STL .531X1.00X.063	606000201
6	IDLER GEAR	606000168
7	BEARING BALL .50 X 1.38 X .437	606000184
8	RETAINER	606000172
9	IDLER SHAFT	606000174
10	DIFFERENTIAL ASSEMBLY	606000213
11	BEARING-BALL .625X1.382X.50	606000122
12	GEAR PINION	606000181
13	BEARING BALL .562X1.315X.437	606000185
14	DRIVE MOUNT	606000175
15	SPRING TENSION .051X.60X2.25	606000212
16	ACTUATOR	606000173
17	PIVOT CHANNEL WELDMENT	606000180
18	NUT	606000050
19	WASHER	606000045
20	BOLT	606000127
21	ROD-GUIDE	606000163
22	WASHER FLAT STL 1.390X2.00X.20	606000198
23	PUSH NUT	606000078
24	PIN ROLL .125 X .50	606000193
25	SHIFT LINK	606000161
26	SHIFT ARM WELDMENT	606000160
27	RETAINER PLATE	606000162
28	HEX SHAFT	606000164
29	PIN ROLL .188 X .88	606000192
30	THRUST PLATE	606000177
31	SCREW TAPPING 10-24 X .373	606000211
32	GUIDE PLATE	606000178
33	FRICTION WHEEL ASSEMBLY	606000214
34	NUT HEX .31-18	606000205
35	WASHER LOCKING .312 X .097	606000199
36	WASHER FLT STL .328X.875X.062	606000203
37	FRICTION SHEAVE	606000165
38	BEARING BALL .625X1.375X.43	606000188
39	WSHR FLT STL 1.062X1.344X.032	606000200
40	SPINDLE BEARING	606000166
41	BEARING RETAINER	606000167
42	BOLT	606000197
43	RETAINER RING	606000189
44	FRICTION RING	606000179
45	FRICTION WHEEL HUB	606000176
46	SCRW TPNG 12-24X.50 HX WSHR HD	606000092
47	BOLT	606000195
48	FRICTION WHEEL	606000182
49	FRICTION DISC	606000171
50	NUT-LOCKING-CENTER .25-20	606000049
51	BEARING PLATE	606000170
52	BEARING RETAINER	606000169
53	BEARING BALL 1.00 X 2.00 X .56	606000186
54	BEARING RETAINER	606000158
55	RING RETAINING EXT 1.00X.042	606000191
56	FITTING	606000157
606000092	SCRW TPNG 12-24X.50 HX WSHR HD	606000092
606000194	PIN ROLL .125 X .63	606000194
