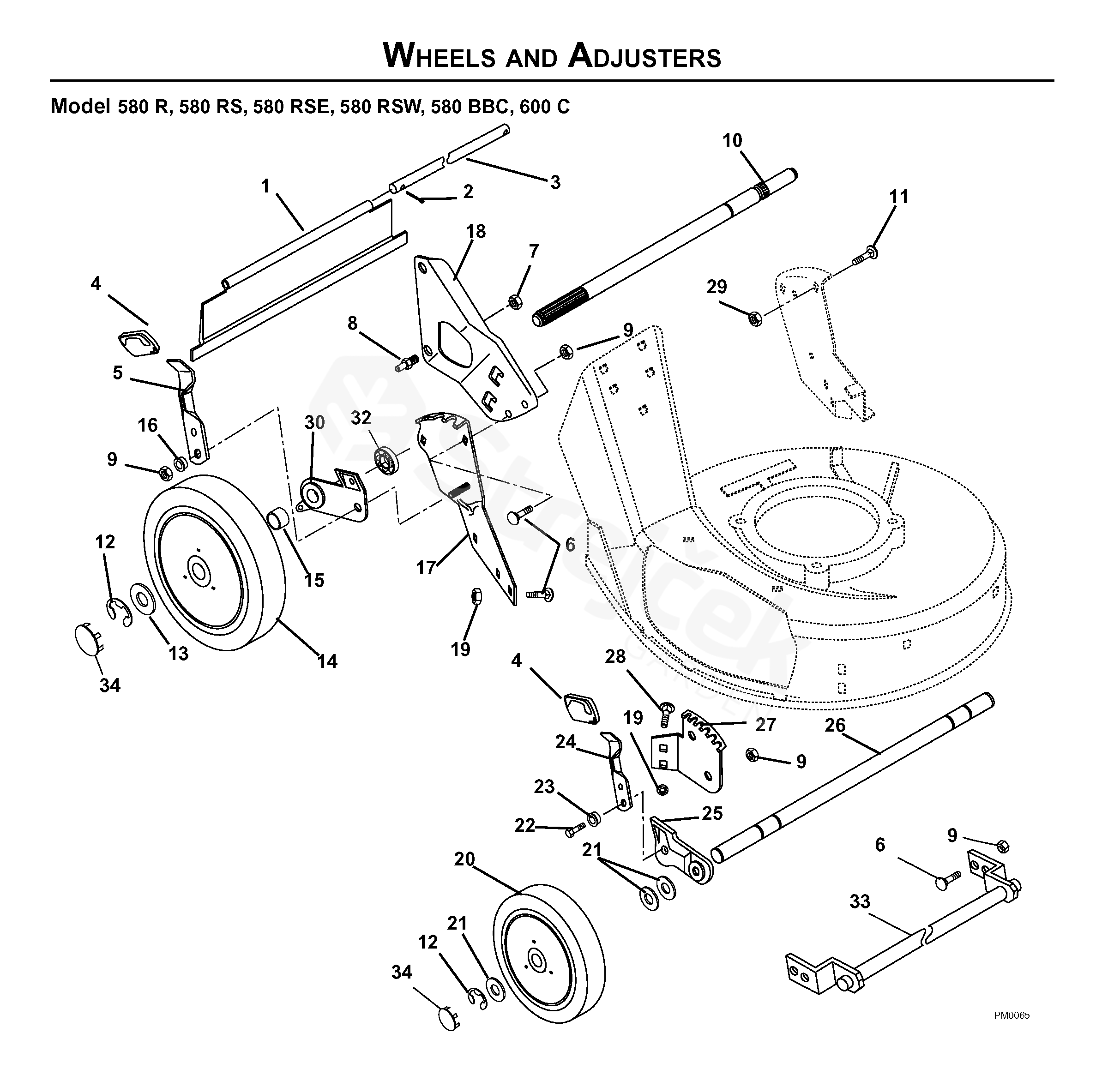

Spare parts - Partlist - 580 RS 580 RS, 2001-06 - WHEELS & TIRES

Everything for your machines

580 RS 580 RS, 2001-06

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 580 RS, 2001-06

1	REAR PRTCTV GUARD, SELF PRPLLD	606000142
2	PEN	606000051
3	ROD	606000108
4	KNOB	606000141
5	HEIGHT ADJUSTMENT LEVER.	606000104
6	BOLT	606000127
7	NUT	606000048
8	HANDLEBAR STUD	606000119
9	NUT	606000050
10	REAR AXLE.	606000109
11	BOLT	606000128
12	RETAINER RING	606000125
13	WASHER	606000130
14	L.H. DRIVE WHEEL	606000278
15	SPACING TUBE	606000110
16	BSHNG FLNG .312X.500X.344X.880	606000123
17	REAR QUADRANT LEFT HAND	606000114
18	HANDLEBAR-RIGHT HAND	606000107
19	NUT-LOCKING-FLANGE .31-18	606000136
20	IDLER WHEEL/7.5 X 1.75	606000277
21	WASHER	606000132
22	BOLT	606000126
23	BSHNG FLNG .312X.500X.344X.880	606000123
24	LEVER, FRONT HEIGHT ADJUSTMENT	606000103
25	LEFT-HAND BRACKET ASSEMBLY	606000101
26	FRONT AXLE	606000120
27	FRONT QUADRANT- LEFT HAND	606000112
28	BOLT	606000082
29	NUT	606000089
30	ADJUSTER	606000105
31	WASHER	606000130
32	BEARING-BALL .625X1.382X.50	606000122
33	DETHATCHER REATINER WELDMENT	606000116
34	HUB CAP	606000308
606000050	NUT	606000050
606000102	RIGHT HAND BRACKET ASSEMBLY	606000102
606000106	HANDLEBAR-LEFT HAND	606000106
606000111	REAR BRCKT & BEARING ASSEMBLY	606000111
606000113	FRONT QUADRANT- RIGHT HAND	606000113
606000115	REAR QUADRANT RIGHT HAND	606000115
606000117	ADJUSTER	606000117
606000125	RETAINER RING	606000125
606000127	BOLT	606000127
606000141	KNOB	606000141
606000279	R.H. DRIVE WHEEL	606000279
606000309	WHEEL, REAR 580R	606000309
606000310	AXLE, REAR	606000310
606000311	SPACER	606000311
606000312	SPACER	606000312
606000315	GUARD, REAR	606000315
