Spare parts - Partlist - 580 RSE 580 RSE, 2000-03 - WHEELS & TIRES

Everything for your machines

580 RSE 580 RSE, 2000-03

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 580 RSE, 2000-03

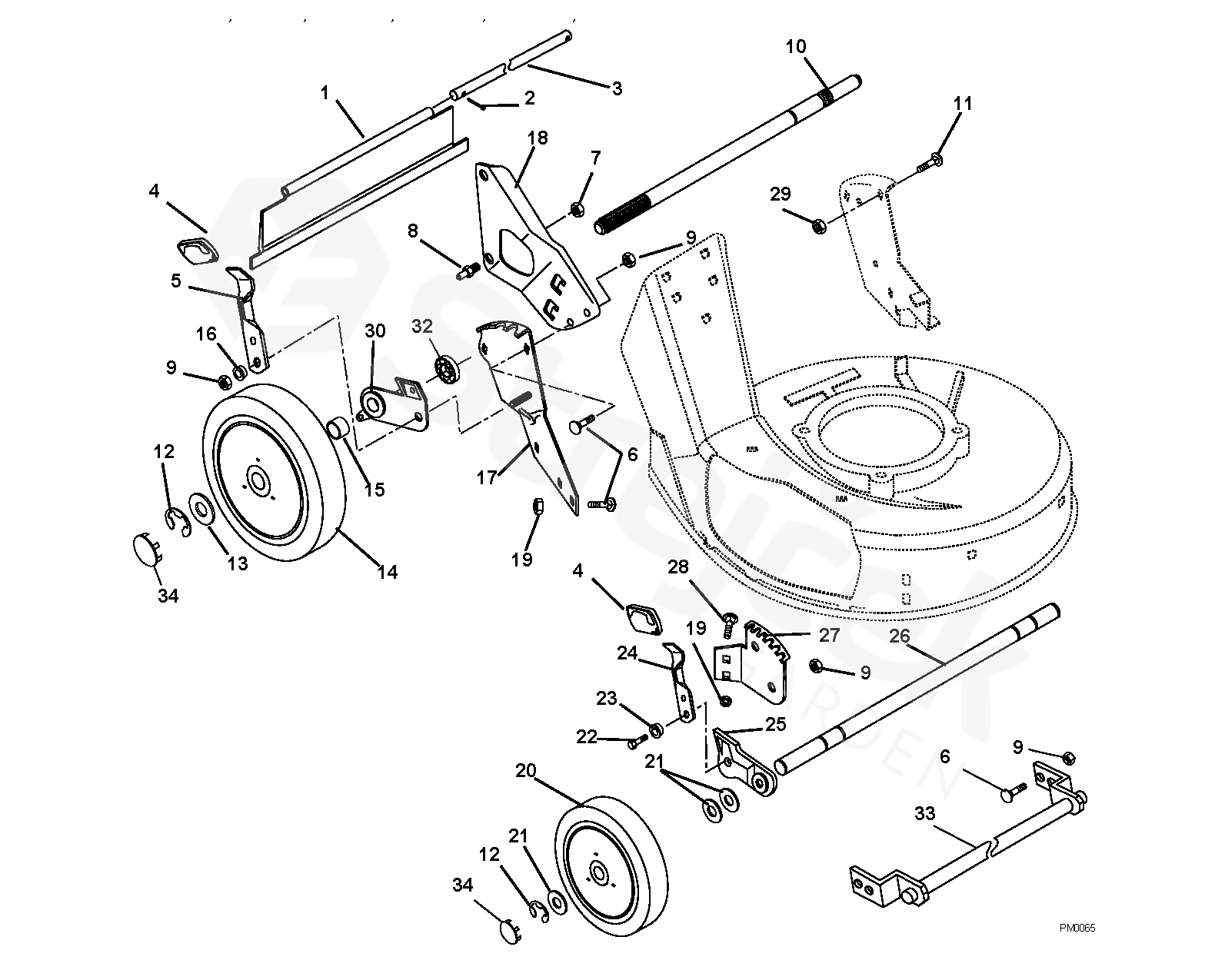

1	REAR PRTCTV GUARD, SELF PRPLLD	606000142
2	PEN	606000051
3	ROD	606000108
4	KNOB	606000141
5	HEIGHT ADJUSTMENT LEVER.	606000104
6	BOLT	606000127
7	NUT	606000048
8	HANDLEBAR STUD	606000119
9	NUT	606000050
10	REAR AXLE.	606000109
11	BOLT	606000128
12	RETAINER RING	606000125
13	WASHER	606000130
14	L.H. DRIVE WHEEL	606000278
15	SPACING TUBE	606000110
16	BSHNG FLNG .312X.500X.344X.880	606000123
17	BEARING-BALL .625X1.382X.50	606000122
18	REAR QUADRANT LEFT HAND	606000114
19	HANDLEBAR-RIGHT HAND	606000107
20	NUT-LOCKING-FLANGE .31-18	606000136
21	WASHER	606000130
22	IDLER WHEEL/7.5 X 1.75	606000277
23	WASHER	606000132
24	BOLT	606000126
25	BSHNG FLNG .312X.500X.344X.880	606000123
26	LEVER, FRONT HEIGHT ADJUSTMENT	606000103
27	LEFT-HAND BRACKET ASSEMBLY	606000101
28	FRONT AXLE	606000120
29	FRONT QUADRANT- LEFT HAND	606000112
30	BOLT	606000082
31	NUT	606000089
32	DETHATCHER REATINER WELDMENT	606000116
33	ADJUSTER	606000117
34	HUB CAP	532008508
606000102	RIGHT HAND BRACKET ASSEMBLY	606000102
606000105	ADJUSTER	606000105
606000106	HANDLEBAR-LEFT HAND	606000106
606000111	REAR BRCKT & BEARING ASSEMBLY	606000111
606000113	FRONT QUADRANT- RIGHT HAND	606000113
606000115	REAR QUADRANT RIGHT HAND	606000115
606000279	R.H. DRIVE WHEEL	606000279
