Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > 580 RSW 580 RSW, 2001-06 > DRIVE
Back to

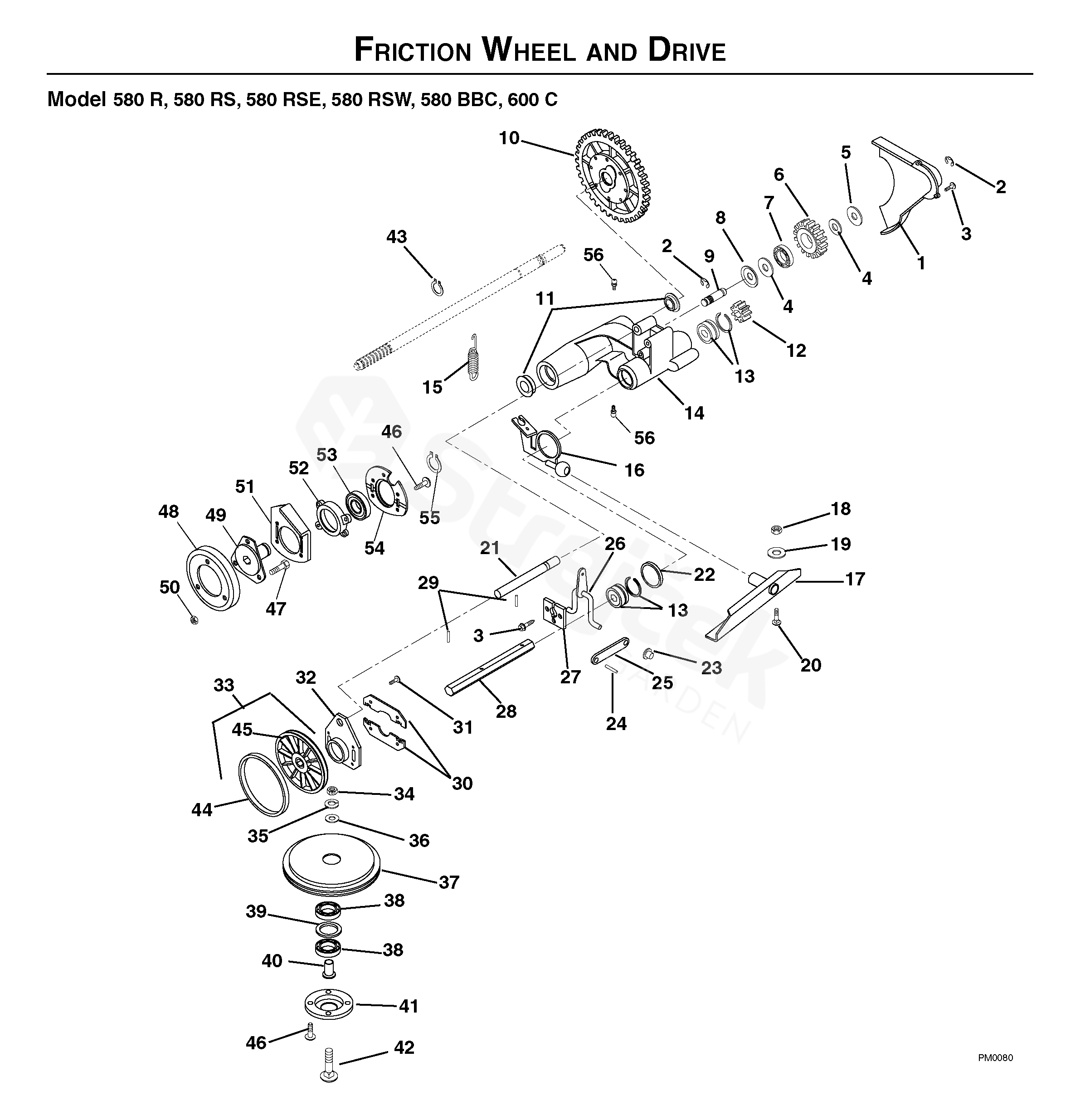

DRIVE
580 RSW 580 RSW, 2001-06
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 580 RSW, 2001-06
1 GEAR COVER 606000159
2 RETAINER RING 606000190
3 SCRW TPNG 12-24X.50 HX WSHR HD 606000092
4 WASHER 606000132
5 WASHER FLAT STL .531X1.00X.063 606000201
6 IDLER GEAR 606000168
7 BEARING BALL .50 X 1.38 X .437 606000184
8 RETAINER 606000172
9 IDLER SHAFT 606000174
10 DIFFERENTIAL ASSEMBLY 606000213
11 BEARING-BALL .625X1.382X.50 606000122
12 GEAR PINION 606000181
13 BEARING BALL .562X1.315X.437 606000185
14 DRIVE MOUNT 606000175
15 SPRING TENSION .051X.60X2.25 606000212
16 ACTUATOR 606000173
17 PIVOT CHANNEL WELDMENT 606000180
18 NUT 606000050
19 WASHER 606000045
20 BOLT 606000127
21 ROD-GUIDE 606000163
22 WASHER FLAT STL 1.390X2.00X.20 606000198
23 PUSH NUT 606000078
24 PIN ROLL .125 X .50 606000193
25 SHIFT LINK 606000161
26 SHIFT ARM WELDMENT 606000160
27 RETAINER PLATE 606000162
28 HEX SHAFT 606000164
29 PIN ROLL .188 X .88 606000192
30 THRUST PLATE 606000177
31 SCREW TAPPING 10-24 X .373 606000211
32 GUIDE PLATE 606000178
33 FRICTION WHEEL ASSEMBLY 606000214
34 NUT HEX .31-18 606000205
35 WASHER LOCKING .312 X .097 606000199
36 WASHER FLT STL .328X.875X.062 606000203
37 FRICTION SHEAVE 606000165
38 BEARING BALL .625X1.375X.43 606000188
39 WSHR FLT STL 1.062X1.344X.032 606000200
40 SPINDLE BEARING 606000166
41 BEARING RETAINER 606000167
42 BOLT 606000197
43 RETAINER RING 606000189
44 FRICTION RING 606000179
45 FRICTION WHEEL HUB 606000176
46 SCRW TPNG 12-24X.50 HX WSHR HD 606000092
47 BOLT 606000195
48 FRICTION WHEEL 606000182
49 FRICTION DISC 606000171
50 NUT-LOCKING-CENTER .25-20 606000049
51 BEARING PLATE 606000170
52 BEARING RETAINER 606000169
53 BEARING BALL 1.00 X 2.00 X .56 606000186
54 BEARING RETAINER 606000158
55 RING RETAINING EXT 1.00X.042 606000191
56 FITTING 606000157
606000092 SCRW TPNG 12-24X.50 HX WSHR HD 606000092
606000194 PIN ROLL .125 X .63 606000194
