Spare parts
Everything for your machines
Spare parts
>
Husqvarna
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
R153 R153SV, 965159802, 2007-04
>
PRODUCT COMPLETE
Back to
R153
R153SV, 965159802, 2007-04
PRODUCT COMPLETE
R153
R153SV, 965159802, 2007-04

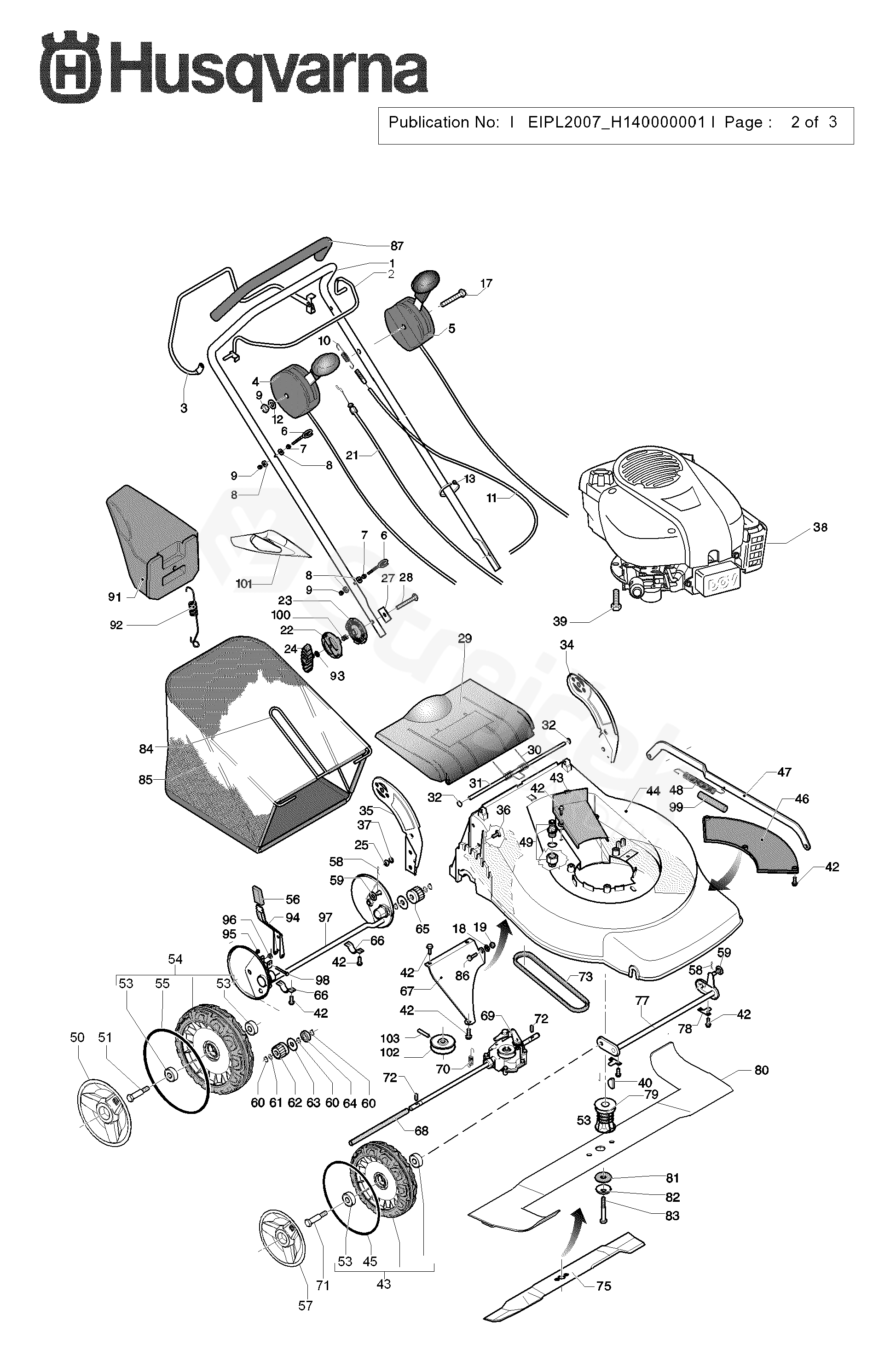

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
R153SV, 965159802, 2007-04
1
HANDLE
531213489
2
LOOP
531205863
3
LOOP
531212676
4
CONTROL
531213492
5
CONTROL
531213491
6
PIN RETAINING SCREW
531205169
7
NUT
531207165
8
PODLOŽKA
531204961
9
NUT
531208491
10
SPRING
531210573
11
WIRE
531213127
12
WASHER
531213515
17
SCREW
531213516
18
WASHER
531206666
19
NUT
531208492
21
BRAKE WIRE
531213522
22
SEGMENT
531211474
23
SEGMENT
531211473
24
KNOB
531205840
25
NUT
531207982
26
CABLE HOLDER
531205581
27
HANDLE
531210743
28
SCREW
531211480
29
COVER
531212444
30
PRUŽINA
501322501
31
SHAFT
531206525
32
RETAINING RING
531210824
34
PLATE
531212047
35
PLATE
531212046
36
SCREW
531205741
37
PODLOŽKA
531207981
39
SCREW
531213845
40
KEY
531204907
42
SCREW
531207856
43
COVER
531213225
44
HOUSING
531213485
45
O-RING
544433101
46
PLATE
531206520
47
PIPE
531210772
48
PRUŽINA
531205715
49
CONNECTOR
531205848
50
HUB CAP
544443901
51
SCREW
531205042
52
WASHER
531206644
53
BEARING
531205214
54
WHEEL ASSY
502445701
55
O-RING
544432801
56
KNOB
531207986
57
HUB CAP
544444001
58
KOLÍČEK
531206653
59
WASHER
531204906
60
PODLOŽKA
531208772
61
WASHER
531208859
62
PINION
531213616
63
WASHER
531207847
64
BEARING
531208778
65
PINION
531213617
66
OPĚRNÁ MISKA
531206652
67
PLATE
531205734
68
PIPE
531207697
69
GEARBOX
531213826
70
SPRING
531205216
71
SCREW
544453401
72
KEY
531205108
73
BELT
531213131
75
MOWER BLADE
531211646
76
WHEEL ASSY
502445101
77
FRONT AXLE
544459201
78
SUPPORT
531205536
79
SUPPORT
531207848
80
MOWER BLADE
531213695
81
WASHER
531207243
82
WASHER
531207237
83
SCREW
531206649
84
FRAME
531208380
85
BAG
531208383
86
SCREW
531207838
87
PROTECTOR
531210725
88
PODLOŽKA
531208974
91
MULCH PLUG
531210618
92
PRUŽINA
531205831
93
WASHER
531204922
94
LEVER
531212364
95
NUT
531208492
96
PRUŽINA
531210817
97
REAR AXLE
544453101
98
SCREW
531206346
99
PIPE
531211591
100
SPRING
531211476
101
TOOL
544899301
102
PULLEY
531213474
103
PIN RETAINING SCREW
531206772
