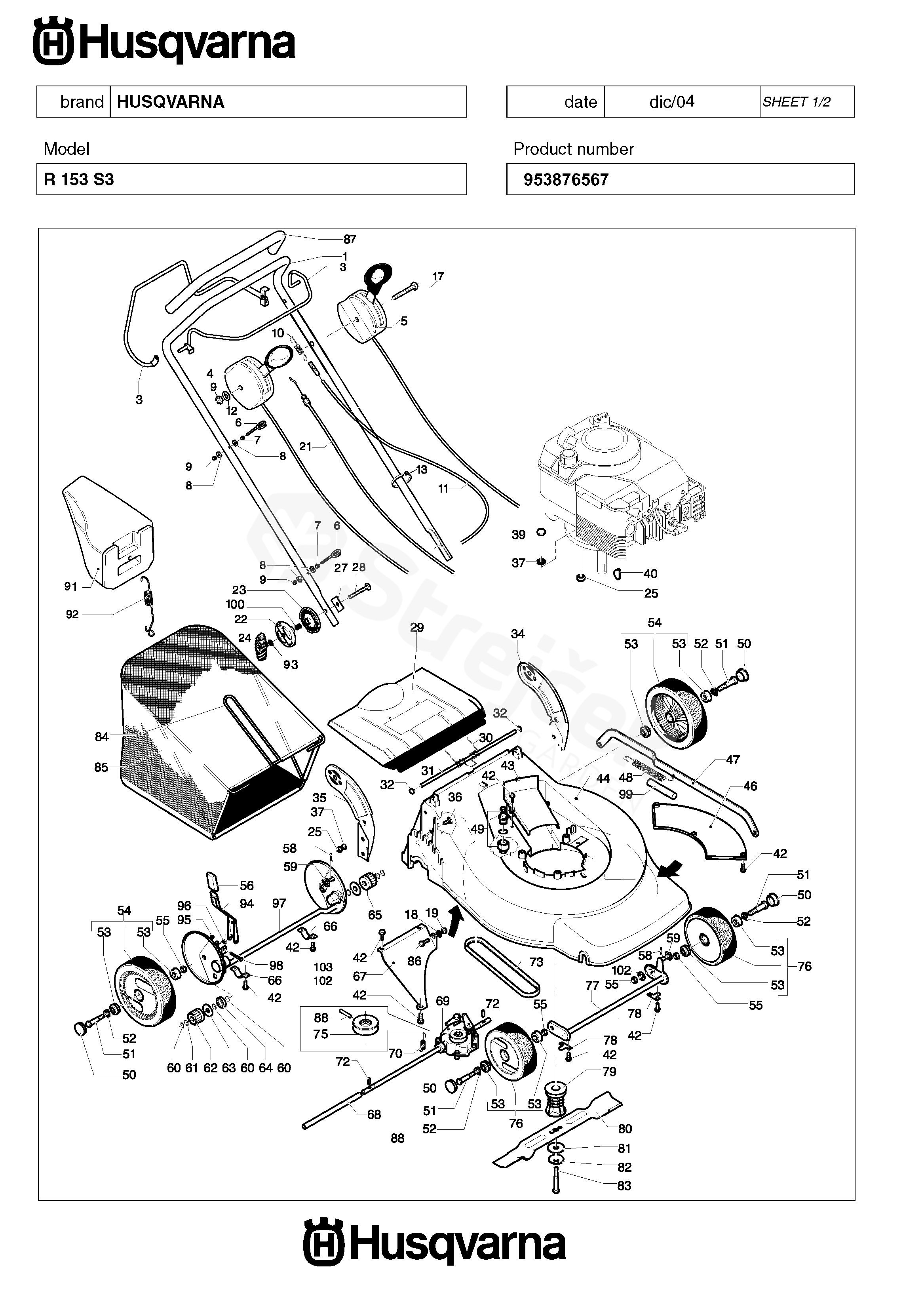

Spare parts - Partlist - R153 R153S3, 953876567, 2005-02 - PRODUCT COMPLETE

Everything for your machines

R153 R153S3, 953876567, 2005-02

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For R153S3, 953876567, 2005-02

1	HANDLE	531213489
2	LOOP	531205863
3	LOOP	531212676
4	CONTROL	531213492
5	CONTROL	531213491
6	PIN RETAINING SCREW	531205169
7	NUT	531207165
8	PODLOŽKA	531204961
9	NUT	531208491
10	SPRING	531210573
11	WIRE	531213127
12	WASHER	531213515
17	SCREW	531213516
18	WASHER	531206666
19	NUT	531208492
21	WIRE	531212370
22	SEGMENT	531211474
23	SEGMENT	531211473
24	KNOB	531205840
25	NUT	531207982
26	CABLE HOLDER	531205581
27	PLATE	531211581
28	SCREW	531211480
29	COVER	531212444
30	SPRING	531206531
31	SHAFT	531206525
32	RETAINING RING	531210824
34	PLATE	531212047
35	PLATE	531212046
36	SCREW	531205741
37	PODLOŽKA	531207981
39	SCREW	531205768
40	KEY	531204907
42	SCREW	531207856
43	COVER	531213225
44	HOUSING	531213485
46	PLATE	531206520
47	PIPE	531210772
48	PRUŽINA	531205715
49	CONNECTOR	531205848
50	HUB CAP	531210580
51	SCREW	531205042
52	WASHER	531206644
53	BEARING	531205214
54	WHEEL	531210761
55	NUT	531207978
56	KNOB	531207986
58	KOLÍČEK	531206653
59	WASHER	531204906
60	PODLOŽKA	531208772
61	WASHER	531208859
62	PINION	531213616
63	WASHER	531207847
64	BEARING	531208778
65	PINION	531213617
66	OPĚRNÁ MISKA	531206652
67	PLATE	531205734
68	PIPE	531207697
69	GEARBOX	531212937
70	SPRING	531205216
72	PIN RETAINING SCREW	531205786
73	BELT	531213131
75	PULLEY	531213474
76	WHEEL	531210579
77	SHAFT	531212394
78	SUPPORT	531205536
79	SUPPORT	531207848
80	MOWER BLADE	531211646
81	WASHER	531207243
82	WASHER	531207237
83	SCREW	531206649
84	FRAME	531208380
85	BAG	531208383
86	SCREW	531207838
87	PROTECTOR	531210725
88	PIN RETAINING SCREW	531207703
91	MULCH PLUG	531210618
92	PRUŽINA	531205831
93	WASHER	531204922
94	LEVER	531212364
95	NUT	531208492
96	PRUŽINA	531210817
97	SHAFT	531212393
98	SCREW	531206346
99	PIPE	531211591
100	SPRING	531211476
102	PODLOŽKA	531208974
531212358	PLUG	531212358
