Husqvarna
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
JET 55 JET55S 1995-03
>

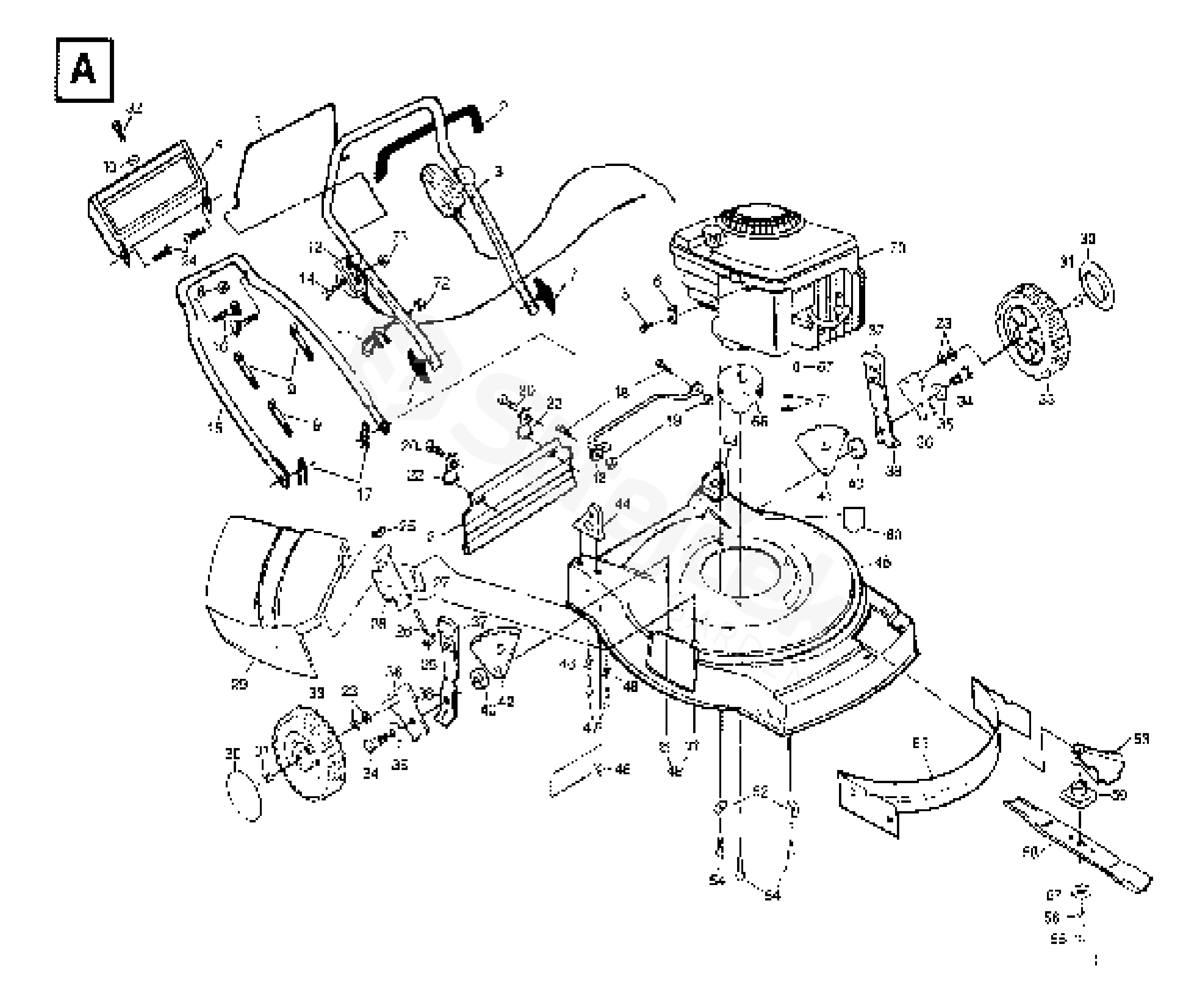

FRAME & ENGINE
Back to
JET 55
JET55S 1995-03
FRAME & ENGINE
JET 55
JET55S 1995-03
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
JET55S 1995-03
1
LOOP
532131094
2
GRIP HANDLE RL508A/B
532850724
3
HANDLE
532125294
4
PANEL
532800547
5
SCREW
532083816
6
WASHER
532213146
7
KNOB
532136376
8
NUT
532063601
9
HOOP
532066426
10
WASHER
532085723
11
ROPE GUIDE
532132001
13
TECHNICAL SPECIFICATION
532700417
14
SCREW
532059935
15
HANDLE
532125293
16
BOLT
532131959
17
PIN RETAINING SCREW
532051793
20
SCREW HEX HEAD RL508A/B
532750097
21
PROTECTOR
532140540
22
BRACKET
532125207
23
WASHER
532057143
24
SCREW
532036953
25
RETAINING RING
812000014
26
PIN RETAINING SCREW
532087590
27
SPRING
532087589
28
BRACKET
532087593
29
GUARD
532850778
30
HUB CAP
532850845
31
MATICE
532083923
32
SCREW
532085436
33
TECHNICAL SPECIFICATION
532800333
34
BOLT
532142748
35
WASHER
532062335
36
SHAFT
532125061
37
KNOB
532132800
38
353212506
40
SPACER
532084920
41
BRACKET
532140059
42
BRACKET
532140058
43
BRACKET
532140466
44
BRACKET
532140465
45
HOUSING
532146917
46
PODLOŽKA
532059289
47
SCREW
532055187
48
LOCKNUT 3/8-16 RL508A/B
532751592
49
LOCKNUT
532053490
52
WASHER
532125078
53
PROTECTEUR NPCREMP:532048283*
532134612
54
BOLT
532850998
55
SCREW
532851084
56
PODLOŽKA
532850263
57
PODLOŽKA
532851074
58
MOWER BLADE
532141114
59
BLADE ADAPTOR
532851514
61
PARTITION
532148902
66
PULLEY
532084596
67
KEY
532087677
71
SCREW
532059708
72
MATICE
873510400
73
LOCKNUT
532053490
AIR CONDUCTOR
532125381
