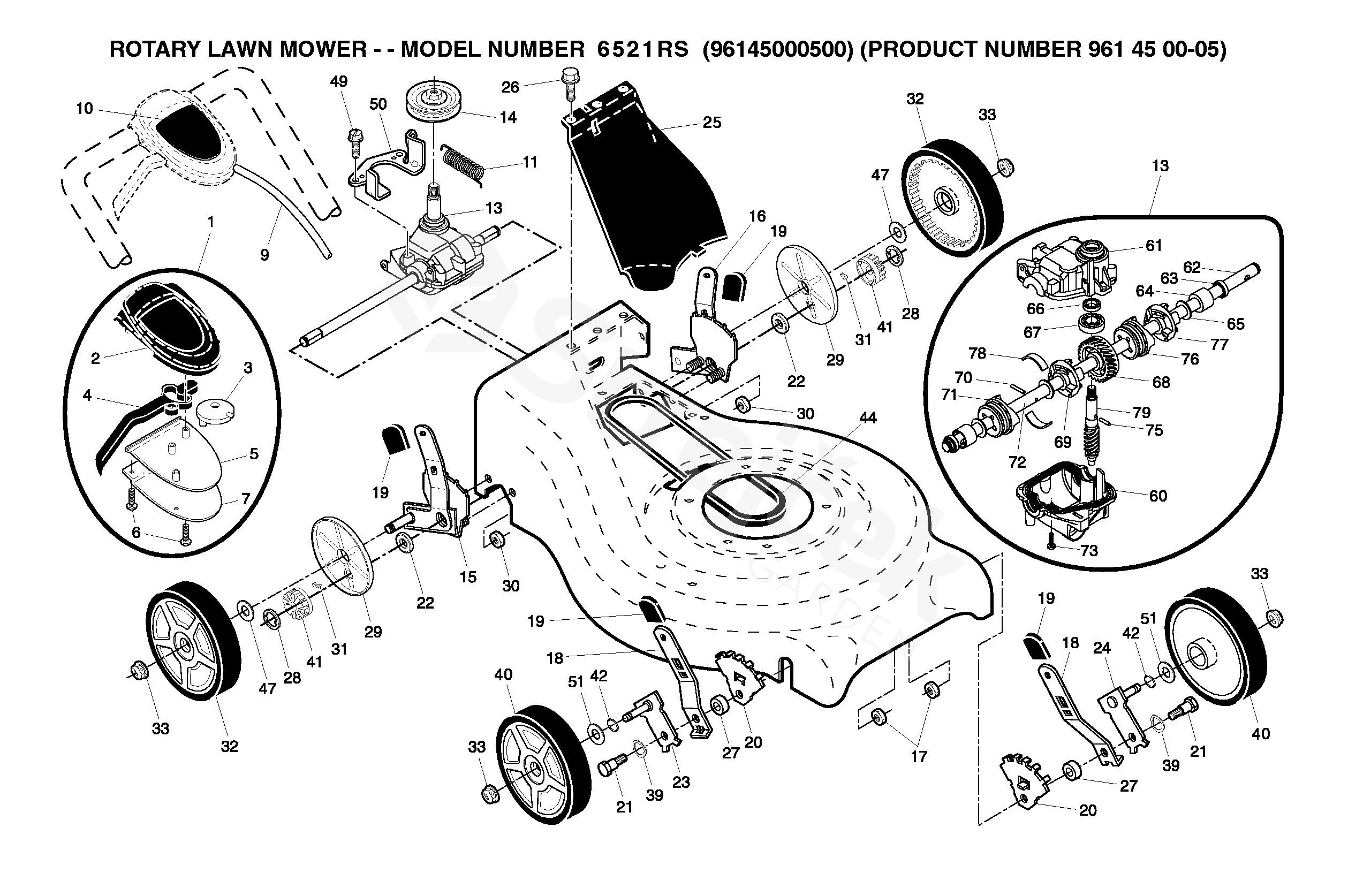

6521 RS 6521 RS, 96145000500, 2007-03

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 6521 RS, 96145000500, 2007-03

1	DRIVE CONTROL	532407344
2	COVER	532413542
3	PULLEY	532406262
4	LEVER	532190039
5	COVER	532413541
6	SCREW	532181698
7	BRACKET	532400723
9	CABLE, DRIVE CONTROL	532406258
10	DECAL	532189378
11	PRUŽINA	532406558
13	GEAR CASE	532404844
14	PULLEY	532193443
15	KIT WHEEL ADJ RH	532409073
16	KIT WHEEL ADJ LH	532409074
17	NUT	532166785
18	SPRING	532406428
19	KNOB	532196401
20	WHEEL ADJ BRACKET FRONT	532410594
21	BOLT	532401638
22	BEARING	532191039
23	AXLE	532406690
24	AXLE	532406689
25	COVER	532400783
26	SCREW	532750634
27	SPACER	532401629
28	E-CLIP	812000058
29	DUST COVER	532189403
30	MATICE	873800400
31	PAWL, DRIVE	532404845
32	WHEEL.8X1.75.	532413143
33	MATICE	532409148
34	PINION	532404835
39	WASHER	532401630
40	FRONT WHEEL AND TIRE ASSY 8X2	532198011
41	PINION	532404835
42	O-KROUŽEK	532197480
44	BELT	532406580
47	PODLOŽKA	532067725
49	SCREW	532163409
50	BELT KEEPER	532413104
51	PODLOŽKA	532088348
60	CASE	532412747
61	CASE	532412736
62	SHAFT	532412745
63	SEAL, OUTPUT SHAFT	532183508
64	BUSHING	532183511
65	PODLOŽKA	532183509
66	SEAL, INPUT SHAFT	532183514
67	BALL BEARING	532183506
68	GEAR	532412742
69	FIXED DOG CLUTCH LH	532412739
70	PIN 7 33732	532412741
71	MOVEABLE DOG CLUTCH LH	532412740
72	SHAFT	532412738
73	SCREW	532183513
75	PIN 3.50.337	532412746
76	FIXED DOG CLUTCH RH	532412744
77	MOVEABLE DOG CLUTCH RH	532412743
78	SPRING	532410731
79	SHAFT WORM	532412737
