Husqvarna
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
6522 SH 6522 SH, 96143000904, 961430009, 2006-08
>

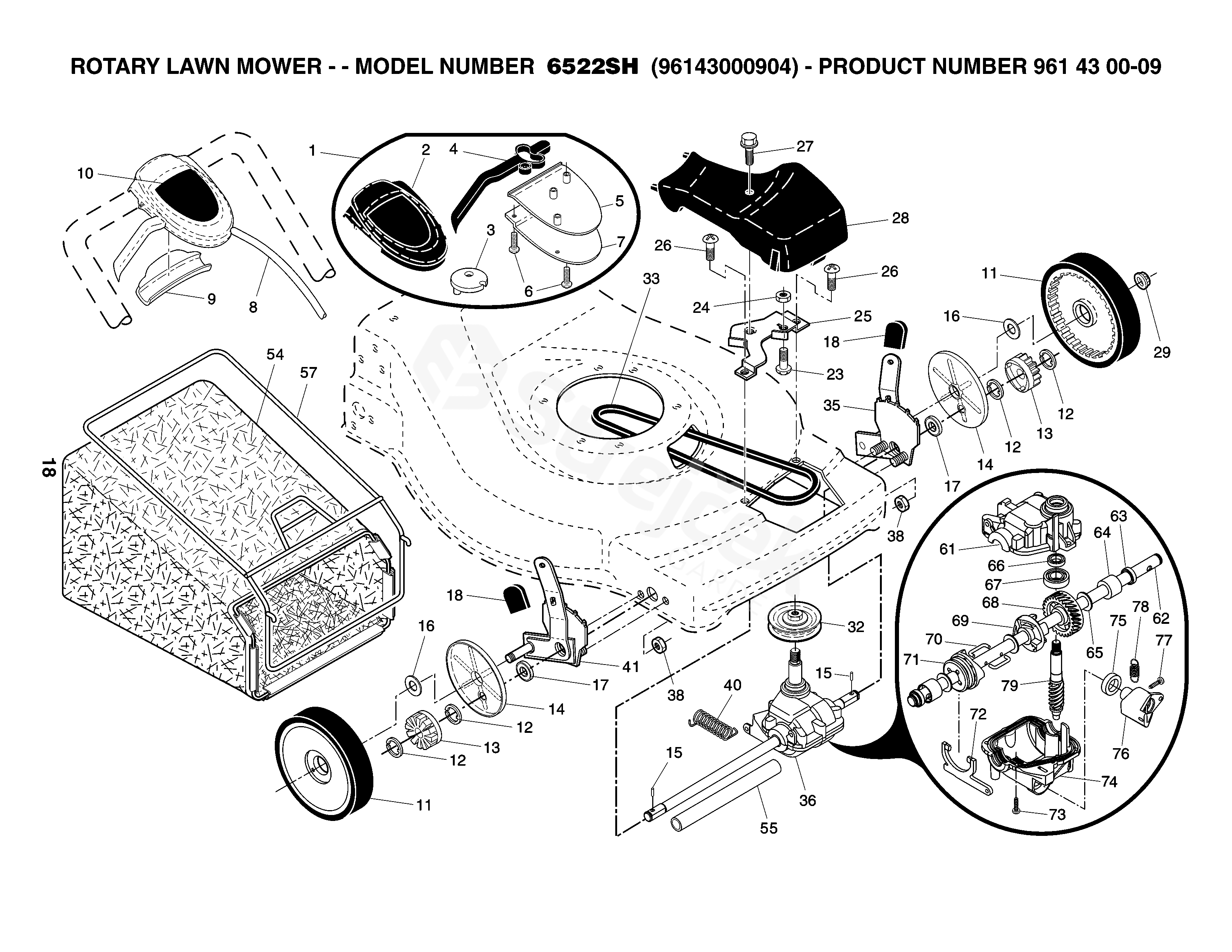

REPAIR PARTS
Back to
6522 SH
6522 SH, 96143000904, 961430009, 2006-08
REPAIR PARTS
6522 SH
6522 SH, 96143000904, 961430009, 2006-08
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
6522 SH, 96143000904, 961430009, 2006-08
1
CONTROL.DR.EZ
532197194
2
COVER
532195761
3
DISC
532187353
4
LEVER
532190039
5
AXLE
532195762
6
SCREW
532181698
7
BRACKET
532400723
8
CABLE
532197195
9
HUB CAP
532186297
10
DECAL
532189074
11
WHEEL
532400543
12
E-CLIP
812000058
13
PINION
532750003
14
DUST COVER
532189403
15
PAWL, DRIVE
532191017
16
PODLOŽKA
532067725
17
BEARING
532191039
18
KNOB
532196401
23
SCREW
532088652
24
MATICE
532191730
25
BELT GUIDE
532197386
26
SCREW
532192325
27
PAN HEAD TAPPING SCREW
532175262
28
DRIVE COVER
532197370
29
MATICE
532083923
32
PULLEY
532194018
33
BELT DRIVE
532196857
35
ADJUSTER
532195110
36
TRANSMISSION
532191636
38
MATICE
873800400
40
SPRING
532192849
41
ADJUSTER
532195107
54
GRASSBAG
532401189
55
SHAFT
532086012
57
FRAME
532401805
61
GEAR HOUSING
532196886
62
SHAFT
532197057
63
SEAL, OUTPUT SHAFT
532183508
64
BUSHING
532183511
65
PODLOŽKA
532183509
66
SEAL, INPUT SHAFT
532183514
67
BALL BEARING
532183506
68
GEAR
532183499
69
CLUTCH
532196884
70
WIRE, FORMED
532183505
71
CLUTCH
532196883
72
FORK
532196882
73
SCREW
532183513
74
GEAR HOUSING
532196881
75
SEAL
532196880
76
LEVER
532196879
77
SCREW
532196878
78
SPRING
532196877
79
SHAFT
532183502
