Husqvarna
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
6522 SH 6522 SH, 96143000904, 961430009, 2006-08
>

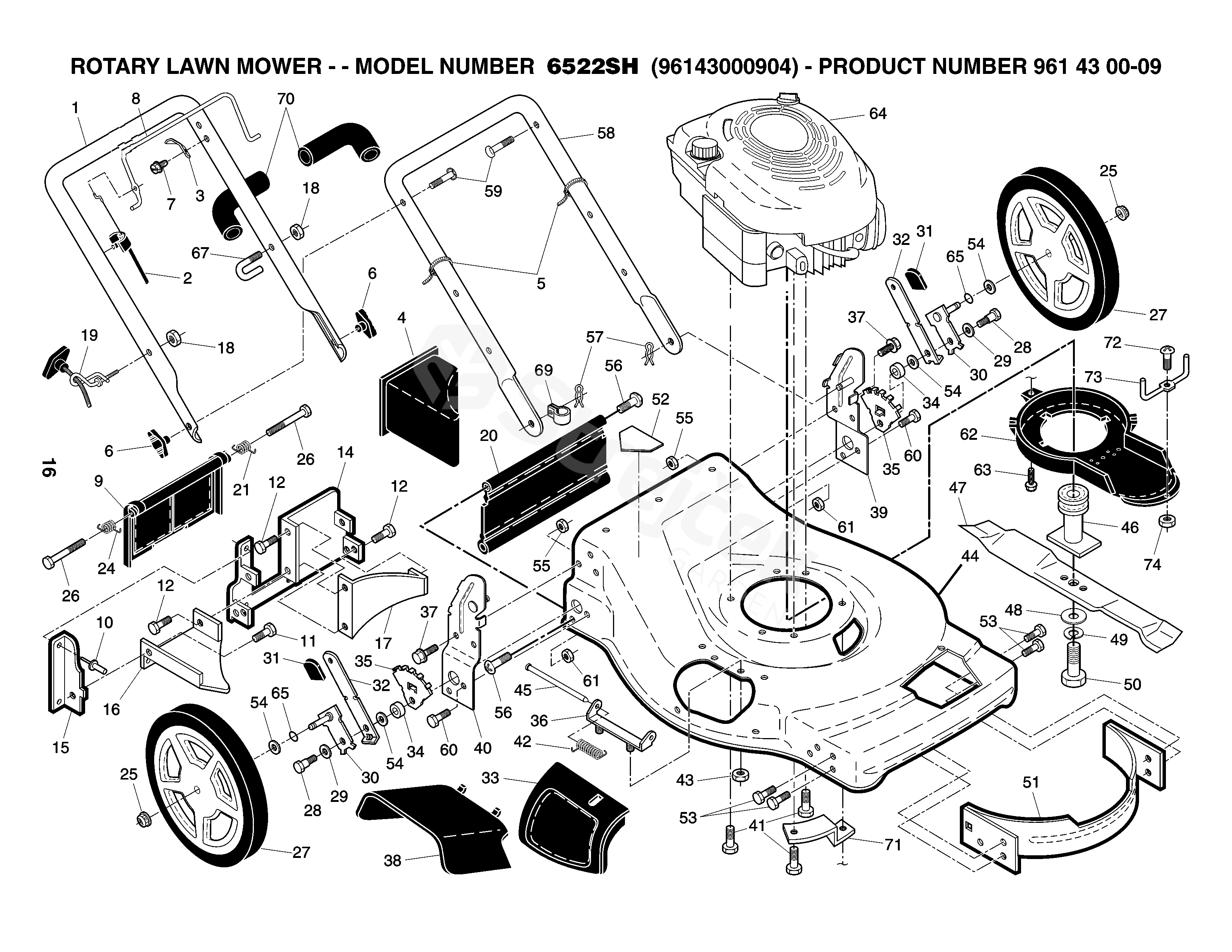

REPAIR PARTS
Back to
6522 SH
6522 SH, 96143000904, 961430009, 2006-08
REPAIR PARTS
6522 SH
6522 SH, 96143000904, 961430009, 2006-08
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
6522 SH, 96143000904, 961430009, 2006-08
1
HANDLE
532196403
2
CABLE
532183567
3
DESKA
532125162
4
MULCHER PLUG
532166649
5
HOOP
532066426
6
KNOB
532191856
7
SCREW
532750634
8
CONTROL
532197019
9
DOOR ASSY
532408492
10
NÝT
532128415
11
SCREW
532150050
12
SCREW
532054583
14
PLATE.BACK
532197076
15
PARTITION
532138860
16
PLATE
532177133
17
PLATE
532148941
18
MATICE
532132004
19
GUIDE
532194788
20
PROTECTOR
532189008
21
SPRING
532405421
24
SPRING
532405423
25
MATICE
532145212
26
BOLT
532184193
27
REAR WHEEL
532402948
28
BOLT
532142748
29
WASHER
532061651
30
SHAFT
532196021
31
SELECTOR KNOB
532190622
32
CONTROL
532198456
33
MULCH DOOR
532197029
34
SPACER
532146630
35
SEGMENT
532155047
36
HINGE
532175735
37
SCREW
532150078
39
BRKT.ASM.HND
532197150
40
BRKT.ASM.HND
532197151
41
BOLT
532150406
42
HINGE
532193000
43
MATICE
873800400
44
KIT.HSG DECK
532196398
45
ROD
532175650
46
ADAPTER
532194037
47
MOWER BLADE
532141114
48
PODLOŽKA
532851074
49
PODLOŽKA
532850263
50
SCREW
532851084
51
PLATE
532170031
52
DECAL
532107339
53
SCREW
817600406
54
PODLOŽKA
532088348
55
LOCKNUT 3/8-16 RL508A/B
532751592
56
SCREW
532088652
57
PIN RETAINING SCREW
532051793
58
HANDLE
532153406
59
HANDLE BOLT
532191574
60
BOLT
874760612
61
LOCKNUT 3/8-16 RL508A/B
532751592
62
PROTECTOR
532199314
63
SCREW
532192325
65
O-KROUŽEK
532197480
67
CLIP
532401607
69
CLIP
532197991
70
HANDLE
532182748
71
MOUNTING BRACKET, DEBRI
532190939
72
SCREW
532182227
73
BELT GUIDE
532197162
74
NUT
532182228
DECAL
532162300
