Spare parts
Everything for your machines
Spare parts
>
Husqvarna
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
6522 SL 6522 SL, 96143000800, 2005-09
>
REPAIR PARTS
Back to
6522 SL
6522 SL, 96143000800, 2005-09
REPAIR PARTS
6522 SL
6522 SL, 96143000800, 2005-09

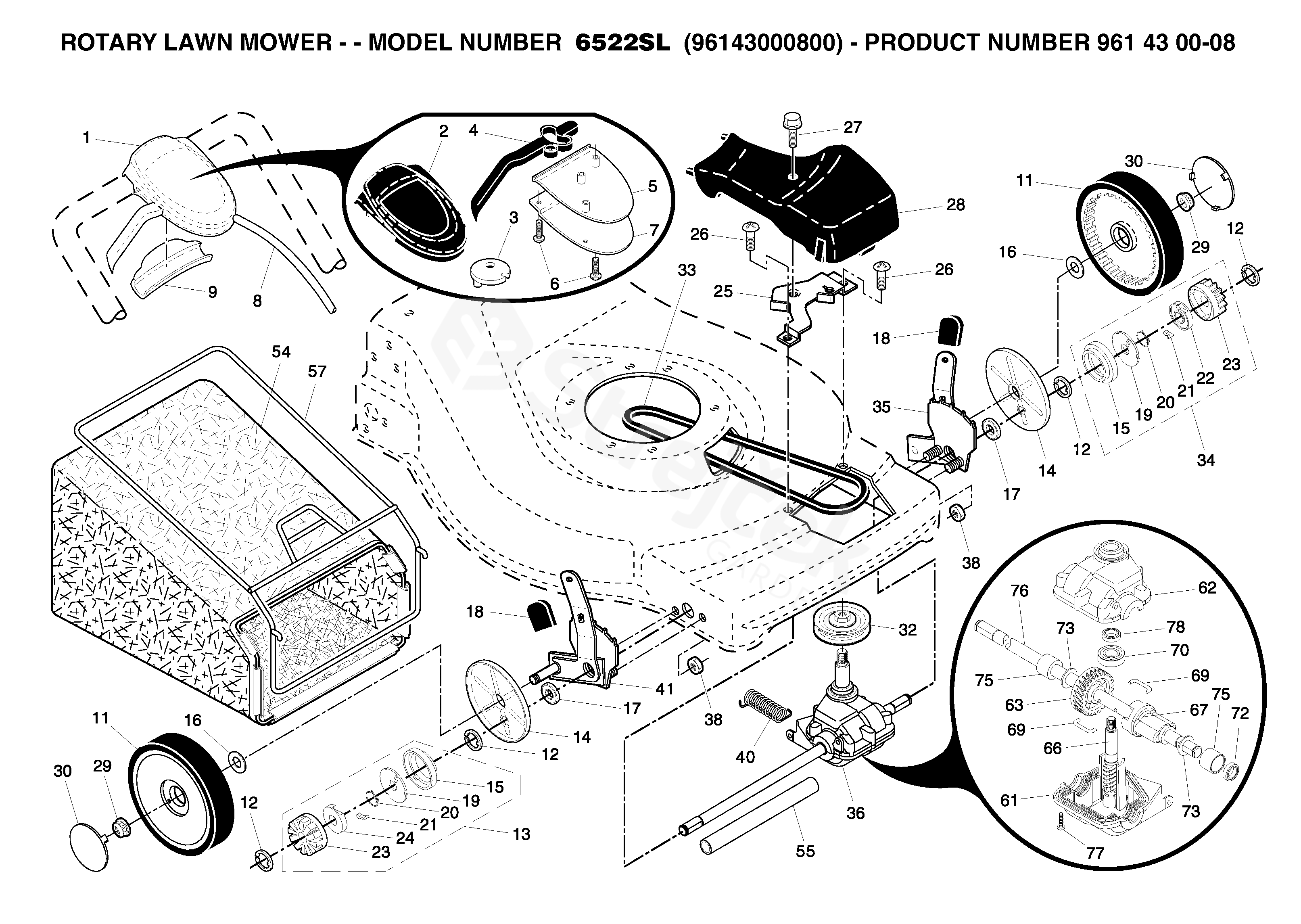

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
6522 SL, 96143000800, 2005-09
1
CONTROL.DR.EZ
532196272
2
COVER
532195761
3
DISC
532187353
4
LEVER
532190039
5
AXLE
532195762
6
DECAL
532186198
7
BRACKET
532187097
8
CABLE
532196181
9
HUB CAP
532186297
11
WHEEL
532180775
12
E-CLIP
812000058
13
PINION
532188330
14
DUST COVER
532189403
15
SEALING
532184172
16
PODLOŽKA
532067725
17
BEARING
532191039
18
KNOB
532701037
19
DISC
532175104
20
SPRING
532188291
21
PAWL
532175098
22
SPACER
532175105
23
GEAR
532175103
24
SPACER
532175102
25
BELT GUIDE
532196054
26
SCREW
532188040
27
PAN HEAD TAPPING SCREW
532175262
29
MATICE
532145212
30
HUB CAP
532180626
31
NUT
532132010
32
DRIVE PULLEY
532189406
33
BELT
532189922
34
PINION
532188331
36
GEAR CASE
532189380
38
MATICE
873800400
40
SPRING
532182226
41
ADJUSTER
532195107
54
GBAG.1323247.SILVER
532196396
55
SHAFT
532086012
57
FRAME
532189680
61
CASE
532187525
62
CASE
532187526
63
GEAR
532183499
66
SHAFT
532187527
67
SPACER
532187528
69
WIRE, FORMED
532183505
70
BALL BEARING
532183506
72
SEAL, OUTPUT SHAFT
532183508
73
PODLOŽKA
532183509
75
BUSHING
532183511
76
SHAFT
532192877
77
SCREW
532183513
78
SEAL, INPUT SHAFT
532183514
