Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > 67522 ES 67522 ES, 96143001200, 961430012, 2006-03 > PRODUCT COMPLETE
Back to
PRODUCT COMPLETE

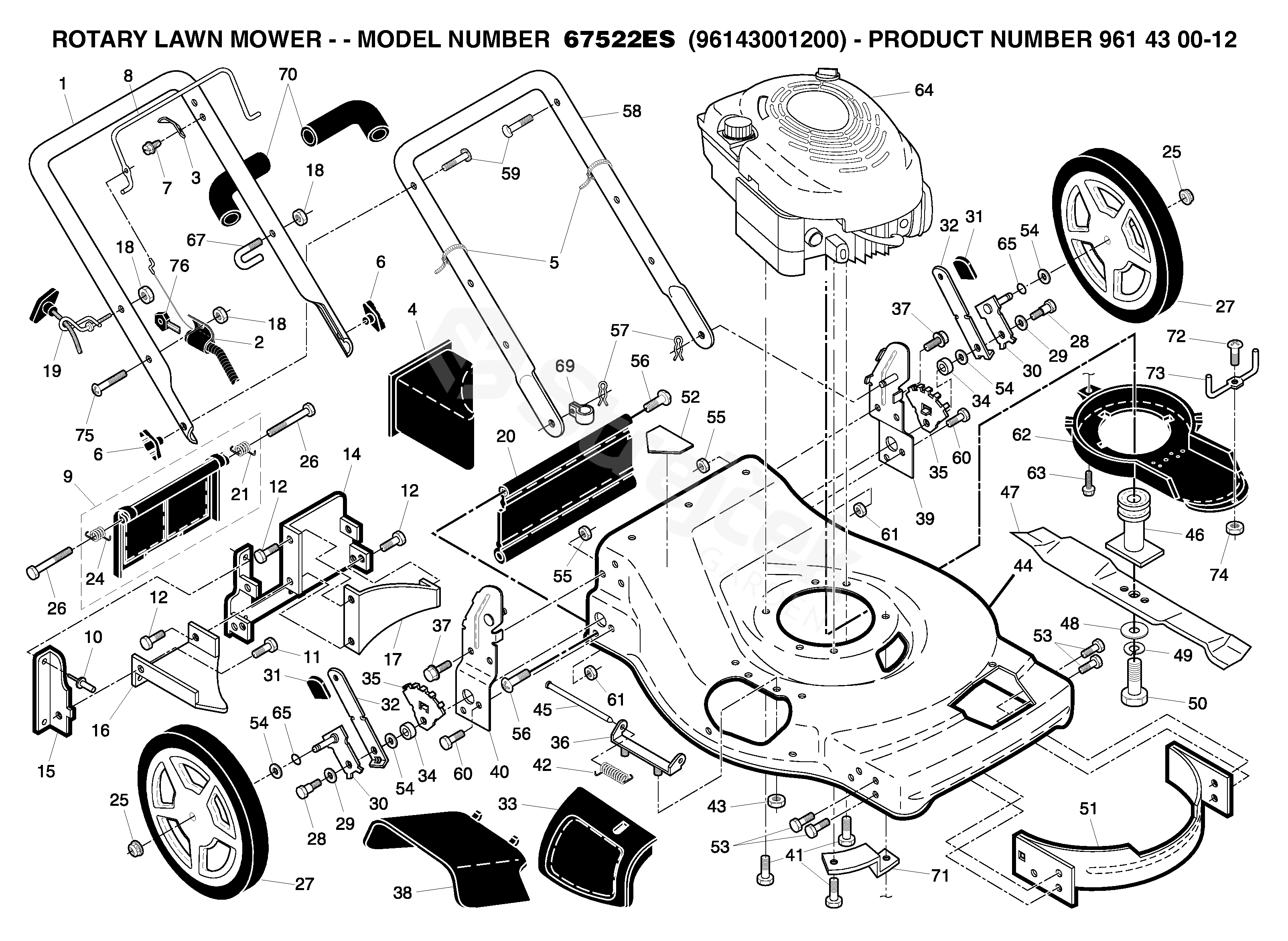

67522 ES 67522 ES, 96143001200, 961430012, 2006-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 67522 ES, 96143001200, 961430012, 2006-03
1 HANDLE 532196403
2 CONTROL 532189686
3 DESKA 532125162
4 MULCHER PLUG 532166649
5 HOOP 532066426
6 KNOB 532191856
7 SCREW 532750634
8 CONTROL 532197019
9 KIT, REAR DOOR (INCLUDE 532193679
10 NÝT 532128415
11 SCREW 532150050
12 SCREW 532054583
14 PLATE.BACK 532197076
15 PARTITION 532138860
16 PLATE 532177133
17 PLATE 532148941
18 MATICE 532132004
19 GUIDE 532194788
20 PROTECTOR 532189008
21 SPRING 532170938
24 SPRING 532170939
25 MATICE 532145212
26 BOLT 532184193
27 REAR WHEEL 532402948
28 BOLT 532142748
29 WASHER 532061651
30 SHAFT 532196021
31 SELECTOR KNOB 532190622
32 CONTROL 532198456
33 MULCH DOOR 532197029
34 SPACER 532146630
35 SEGMENT 532155047
36 HINGE 532175735
37 SCREW 532150078
38 DEFLECTOR 532197030
39 BRKT.ASM.HND 532197150
40 BRKT.ASM.HND 532197151
41 BOLT 532150406
42 HINGE 532193000
43 MATICE 873800400
44 KIT.HSG DECK 532196398
45 ROD 532175650
46 ADAPTER 532194037
47 MOWER BLADE 532141114
48 PODLOŽKA 532851074
49 PODLOŽKA 532850263
50 SCREW 532851084
51 PLATE 532170031
52 DECAL 532107339
53 SCREW 817600406
54 PODLOŽKA 532088348
55 LOCKNUT 3/8-16 RL508A/B 532751592
56 SCREW 532088652
57 PIN RETAINING SCREW 532051793
58 HANDLE 532403433
59 HANDLE BOLT 532191574
60 BOLT 874760612
61 LOCKNUT 3/8-16 RL508A/B 532751592
62 PROTECTOR 532199314
63 SCREW 532192325
65 O-KROUŽEK 532197480
67 CLIP 532401607
69 CLIP 532197991
70 HANDLE 532182748
71 MOUNTING BRACKET, DEBRI 532190939
72 SCREW 532182227
73 BELT GUIDE 532197162
74 NUT 532182228
75 SCREW 532186159
76 KEY 532180331
OPERATOR S MANUAL 532400510
