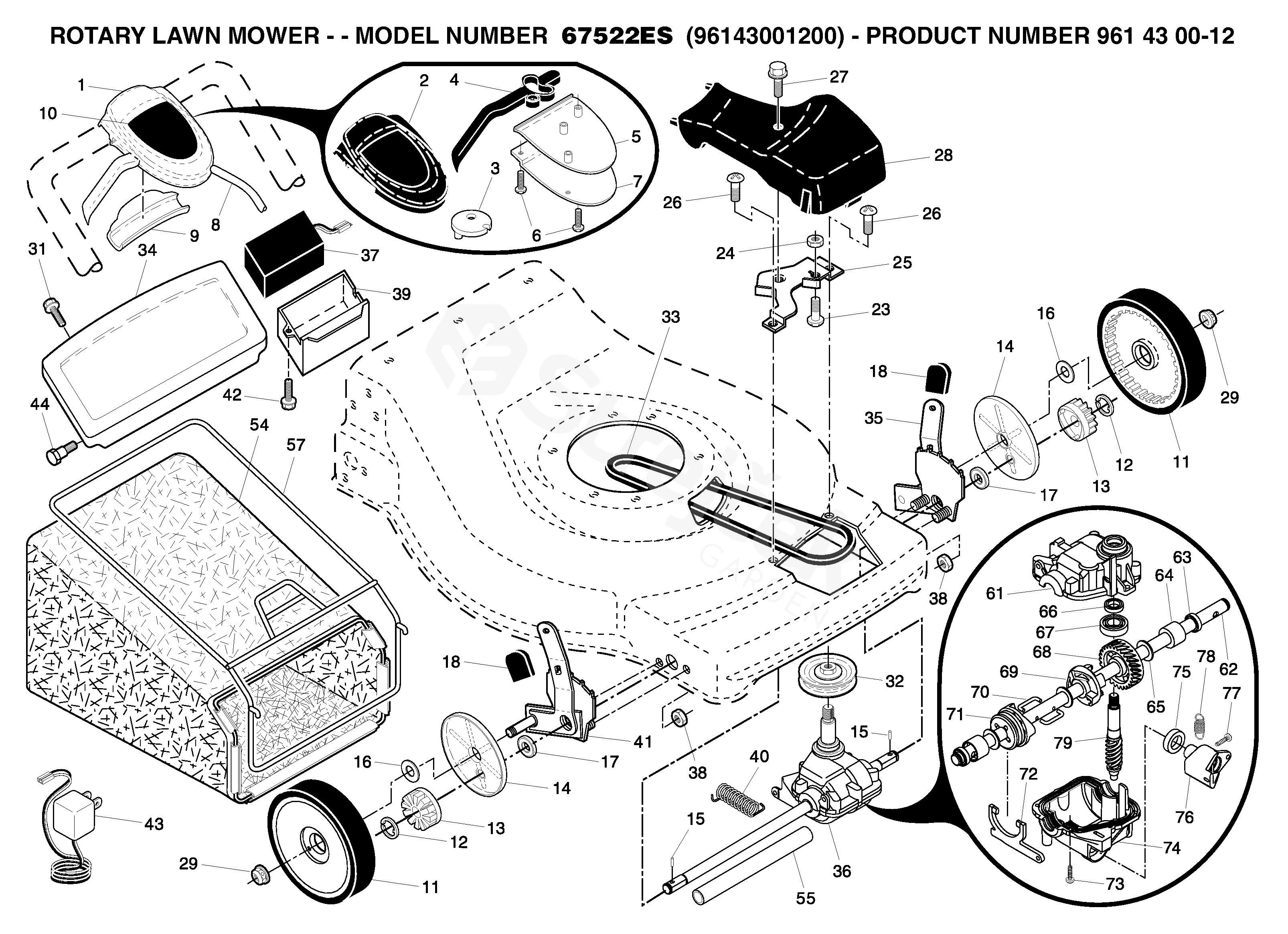

67522 ES 67522 ES, 96143001200, 961430012, 2006-03

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 67522 ES, 96143001200, 961430012, 2006-03

1	CONTROL.DR.EZ	532197194
2	COVER	532195761
3	DISC	532187353
4	LEVER	532190039
5	AXLE	532195762
6	SCREW	532181698
7	BRACKET	532400723
8	CABLE	532197195
9	HUB CAP	532186297
10	DECAL	532189074
11	WHEEL	532400543
12	E-CLIP	812000058
13	PINION	532750003
14	DUST COVER	532189403
15	PAWL, DRIVE	532191017
16	PODLOŽKA	532067725
17	BEARING	532191039
18	KNOB	532196401
23	SCREW	532088652
24	MATICE	532191730
25	BELT GUIDE	532197386
26	SCREW	532192325
27	PAN HEAD TAPPING SCREW	532175262
28	DRIVE COVER	532197370
29	MATICE	532083923
31	SCREW	532141841
32	PULLEY	532194018
33	BELT DRIVE	532196857
34	TRIMPLATE ASSEMBLY	532186153
35	ADJUSTER	532195110
36	TRANSMISSION	532191636
37	BATERIE	532189589
38	MATICE	873800400
39	BOX	532186237
40	SPRING	532192849
41	ADJUSTER	532195107
42	SCREW	817411308
43	CHARGER	532190097
44	BOLT	532175551
54	GRASSBAG	532401189
55	SHAFT	532086012
57	FRAME	532189680
61	GEAR HOUSING	532196886
62	SHAFT	532197057
63	SEAL, OUTPUT SHAFT	532183508
64	BUSHING	532183511
65	PODLOŽKA	532183509
66	SEAL, INPUT SHAFT	532183514
67	BALL BEARING	532183506
68	GEAR	532183499
69	CLUTCH	532196884
70	WIRE, FORMED	532183505
71	CLUTCH	532196883
72	FORK	532196882
73	SCREW	532183513
74	GEAR HOUSING	532196881
75	SEAL	532196880
76	LEVER	532196879
77	SCREW	532196878
78	SPRING	532196877
79	SHAFT	532183502
