Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > ROYAL 43EL ROYAL 43ELS 1997-04 > WHEEL & DEPTH STAKE ASSEMBLY
Back to

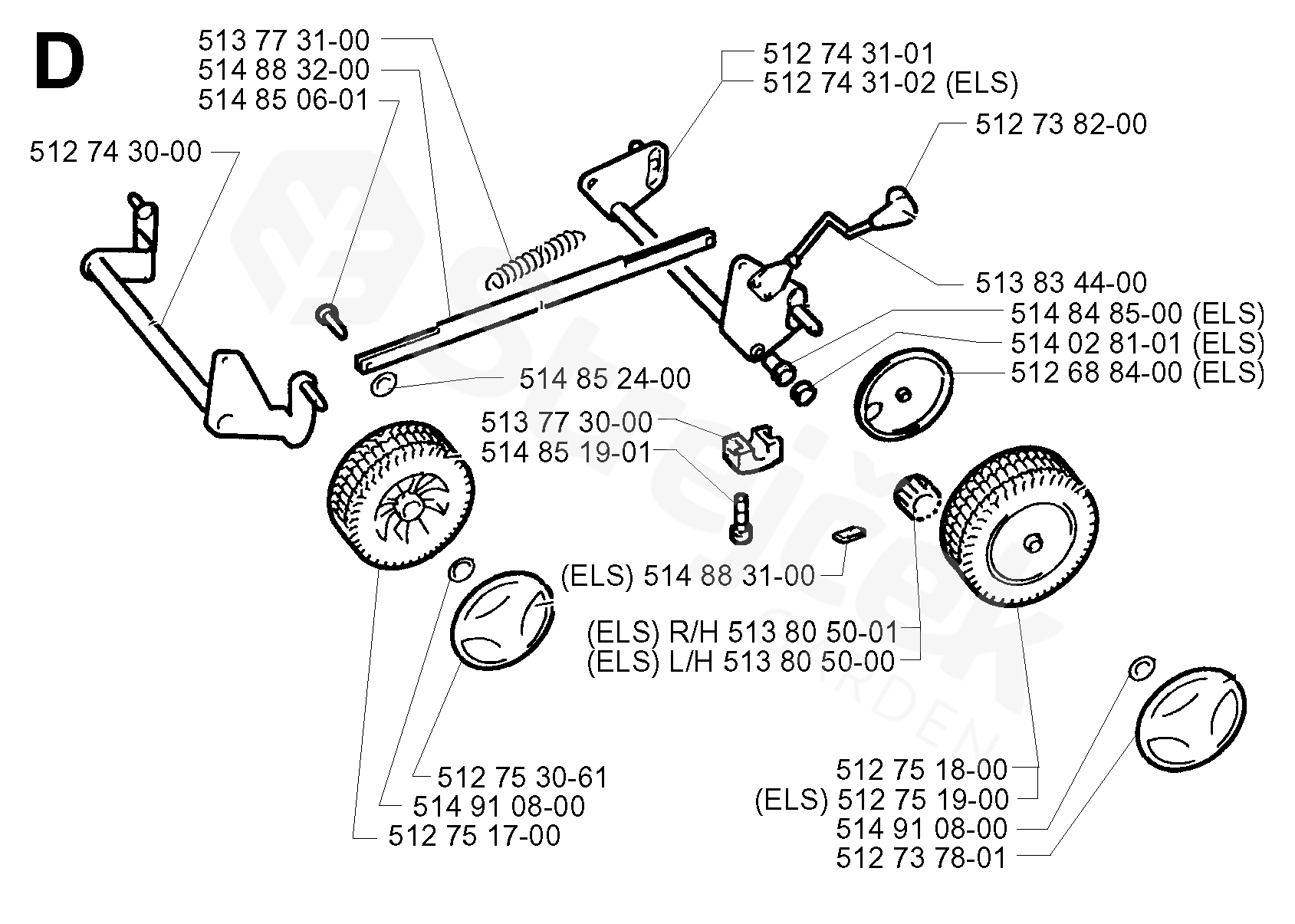

WHEEL & DEPTH STAKE ASSEMBLY
ROYAL 43EL ROYAL 43ELS 1997-04
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ROYAL 43ELS 1997-04
512688400 DISC
ELS 		512688400
512737801 HUB CAP 512737801
512738200 ADJUSTER 512738200
512743000 SHAFT 512743000
512743101 SHAFT REAR AXLE 512743101
512743102 SHAFT
ELS 		512743102
512751700 WHEEL 512751700
512751800 WHEEL 512751800
512751900 WHEEL
ELS 		512751900
512753061 HUB CAP 512753061
513773000 CLAMP 513773000
513773100 SPRING 513773100
513805000 DRIVE SPROCKET
ELS L/H 		513805000
513805001 DRIVE SPROCKET
ELS R/H 		513805001
513834400 LEVER 513834400
514028101 WASHER
ELS 		514028101
514848500 BUSHING
ELS 		514848500
514850601 CLEVIS PIN 514850601
514851901 SCREW 514851901
514852400 WASHER 514852400
514883100 PAWL
ELS 		514883100
514883200 LINK 514883200
514910800 PUSH ON FIX 514910800
