Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > LB553 Se LB553 Se, 967257001, 2016-01 > HANDLE
Back to

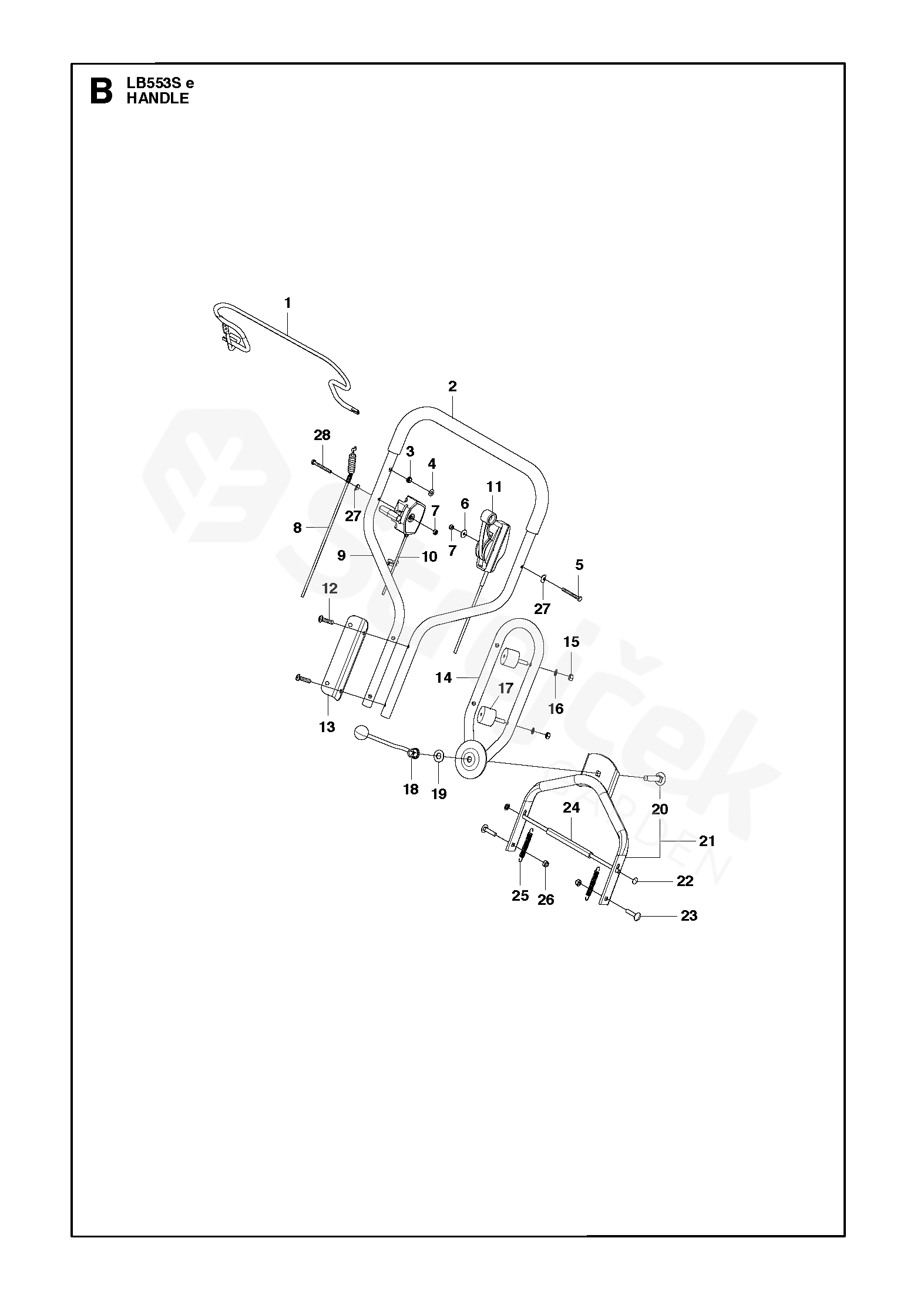

HANDLE
LB553 Se LB553 Se, 967257001, 2016-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LB553 Se, 967257001, 2016-01
1 BAIL ARM ASSY 503311102
2 DRŽADLO RUKOJETI 576641901
3 BUSHING 503320901
4 PODLOŽKA 734182051
5 SCREW EHHM 725238151
6 PODLOŽKA 504459901
7 HEXAGON LOCKING NUT 732251601
8 CABLE 585402101
9 HANDLE ASSY 502906403
10 THROTTLE CONTROL 579203501
11 DRIVE CONTROL 586944201
12 SCREW CRPANM 504461501
13 DESKA 503311702
14 HANDLE ASSY 502903502
15 HEXAGON LOCKING NUT 731231801
16 LOCKWASHER 735216401
17 ANTI-VIBRATION MOUNT 503312502
18 LEVER ASSY 503298302
19 PODLOŽKA 504457301
20 SCREW RSQM 727654351
21 HANDLE ASSY 578789901
22 WASHER 295680501
23 SCREW RSQM 727645751
24 ADJUSTMENT ROD 579413901
25 SPRING 579297101
26 LOCK NUT 732211801
27 PODLOŽKA 531204961
28 SCREW EHHM 725238251
