Spare parts - Partlist - 7021 KF 7021 KF, 96143009100, 2011-12 - FRAME

Everything for your machines

7021 KF 7021 KF, 96143009100, 2011-12

Hover mouse on parts list

Wheel: Zoom, left button: Movement

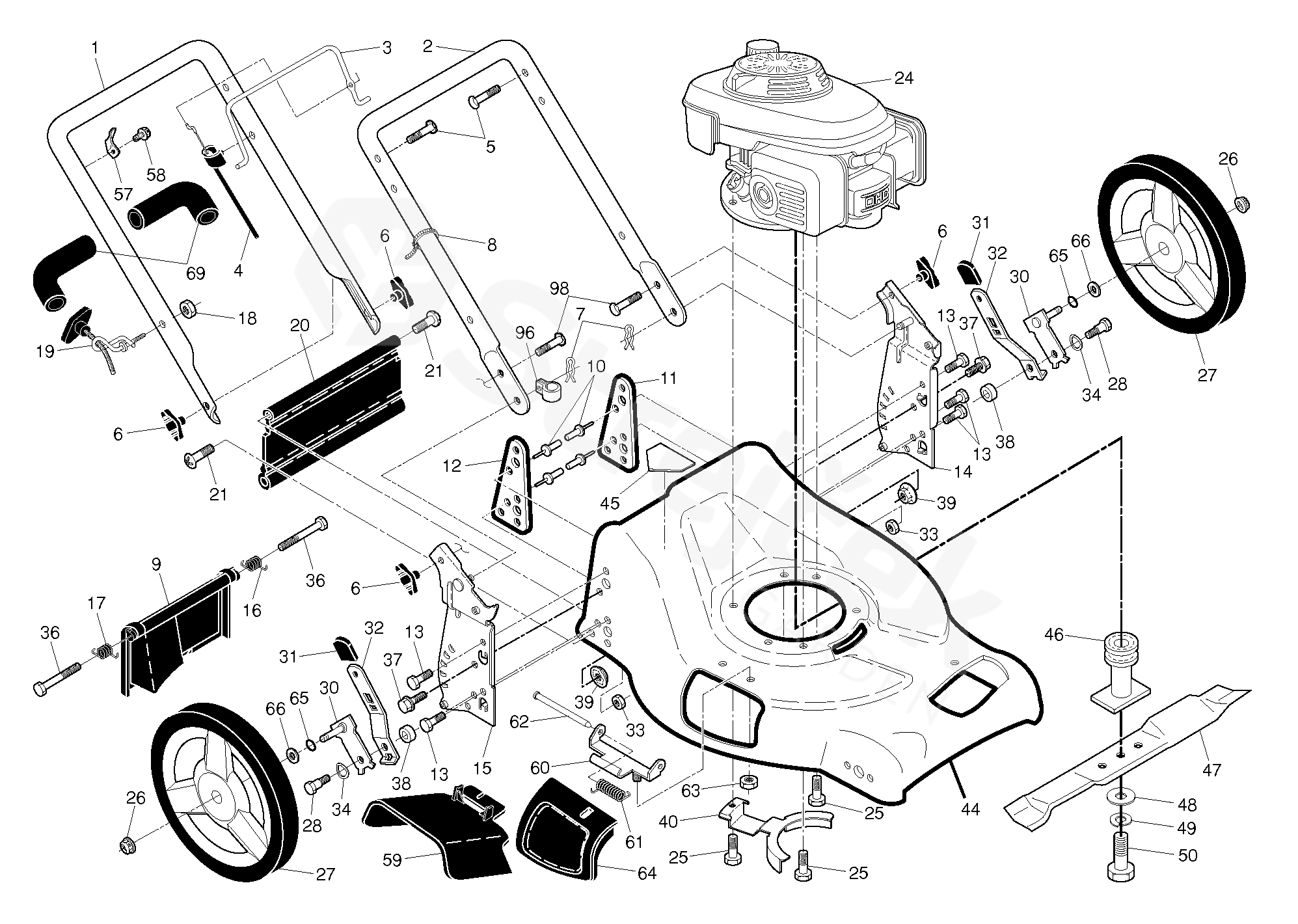

Other parts For 7021 KF, 96143009100, 2011-12

1	HANDLE Includes Foam Grip	532186296
2	HANDLE	532434726
3	BAR	532426812
4	CABLE	532435054
5	HANDLE BOLT	532191574
6	KNOB	532191938
7	PIN RETAINING SCREW	532051793
8	HOOP	532066426
9	DEFLECTOR	532406985
10	NÝT	532128415
11	BRACKET	532410540
12	BRACKET	532410542
13	SCREW	817060410
14	BRACKET	532434550
15	BRACKET	532434549
16	PRUŽINA	532405417
17	PRUŽINA	532405418
18	MATICE	532132004
19	GUIDE	532194788
20	SKIRT.REAR.21 FWGD.BLACK	532413159
21	SCREW	532088652
24	W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701 KOHLER XT173-0084 FOR SERVICE & PARTS 1-800-544-2444	000000000
25	BOLT	532150406
26	NUT	532409149
27	KOLO KOMPL.	532410815
28	BOLT	532401638
30	ARM SUPPORT	532413141
31	KNOB	532701037
32	SELECTOR SPRING	532409889
33	BRACKET	873800500
34	WASHER	532401630
36	BOLT	532184193
37	SCREW	874780512
38	SPACER	532401629
39	MATICE	532155377
40	BELT GUARD	532425711
44	KIT.HSG.21.FGD.MC.ORG.E/F.BLU	532417807
45	DECAL	532404763
46	ADAPTER	532421248
47	MOWER BLADE	532406712
48	PODLOŽKA	532851074
49	PODLOŽKA	532850263
50	SCREW	532851084
57	BRACKET	532430034
58	SCREW	532178848
59	DEFLECTOR	532185582
60	HINGE	532175735
61	HINGE	532193000
62	ROD	532175650
63	MATICE	873800400
64	DOOR	532185576
65	O-KROUŽEK	532197480
66	PODLOŽKA	532088348
69	HANDLE	532182748
96	CLIP	532197991
98	BOLT	872250505
	DECAL	532404764
