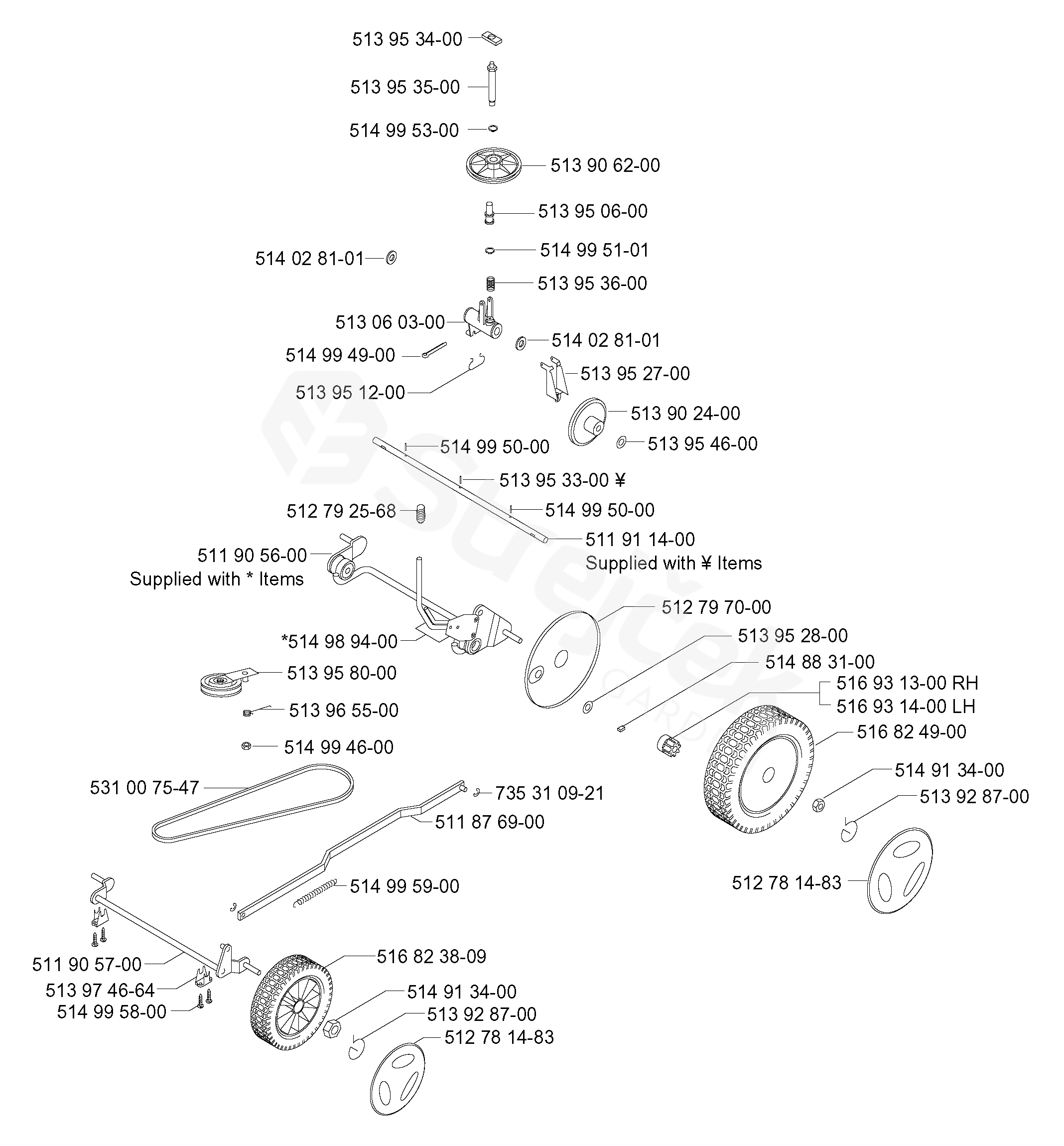

ROYAL 49 ROYAL 49SC VARIABLE SPEED 2001-03

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For ROYAL 49SC VARIABLE SPEED 2001-03

511876900	SHAFT	511876900
511905600	REAR	511905600
511905700	FRONTAXLE	511905700
511911400	AXLE	511911400
512781483	HUB CAP	512781483
512792568	KNOB	512792568
512797000	DISC	512797000
513060300	BUSHING	513060300
513902400	DRIVE DISC	513902400
513906200	PULLEY	513906200
513928700	SPRING	513928700
513950600	SLEEVE	513950600
513951200	CLIP	513951200
513952700	LEVER	513952700
513952800	WASHER	513952800
513953300	PIN RETAINING SCREW	513953300
513953400	RETAINING RING	513953400
513953500	SHAFT	513953500
513953600	SPRING	513953600
513954600	WASHER	513954600
513958000	PULLEY	513958000
513965500	SPRING	513965500
513974664	CLAMP	513974664
514028101	WASHER	514028101
514883100	PAWL	514883100
514913400	NUT	514913400
514989400	CONTROL	514989400
514994600	NUT	514994600
514994900	PIN RETAINING SCREW	514994900
514995000	PIN RETAINING SCREW	514995000
514995101	RING	514995101
514995300	CLIP	514995300
514995800	SCREW	514995800
514995900	SPRING	514995900
516823809	WHEEL	516823809
516824900	WHEEL	516824900
516931300	PINION RH	516931300
516931400	PINION LH	516931400
531007547	DRIVE BELT	531007547
735310921	E-CLIP	735310921
