Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > ROYAL 49 ROYAL 49S BBC 2000-04 > WHEELS & TIRES
Back to

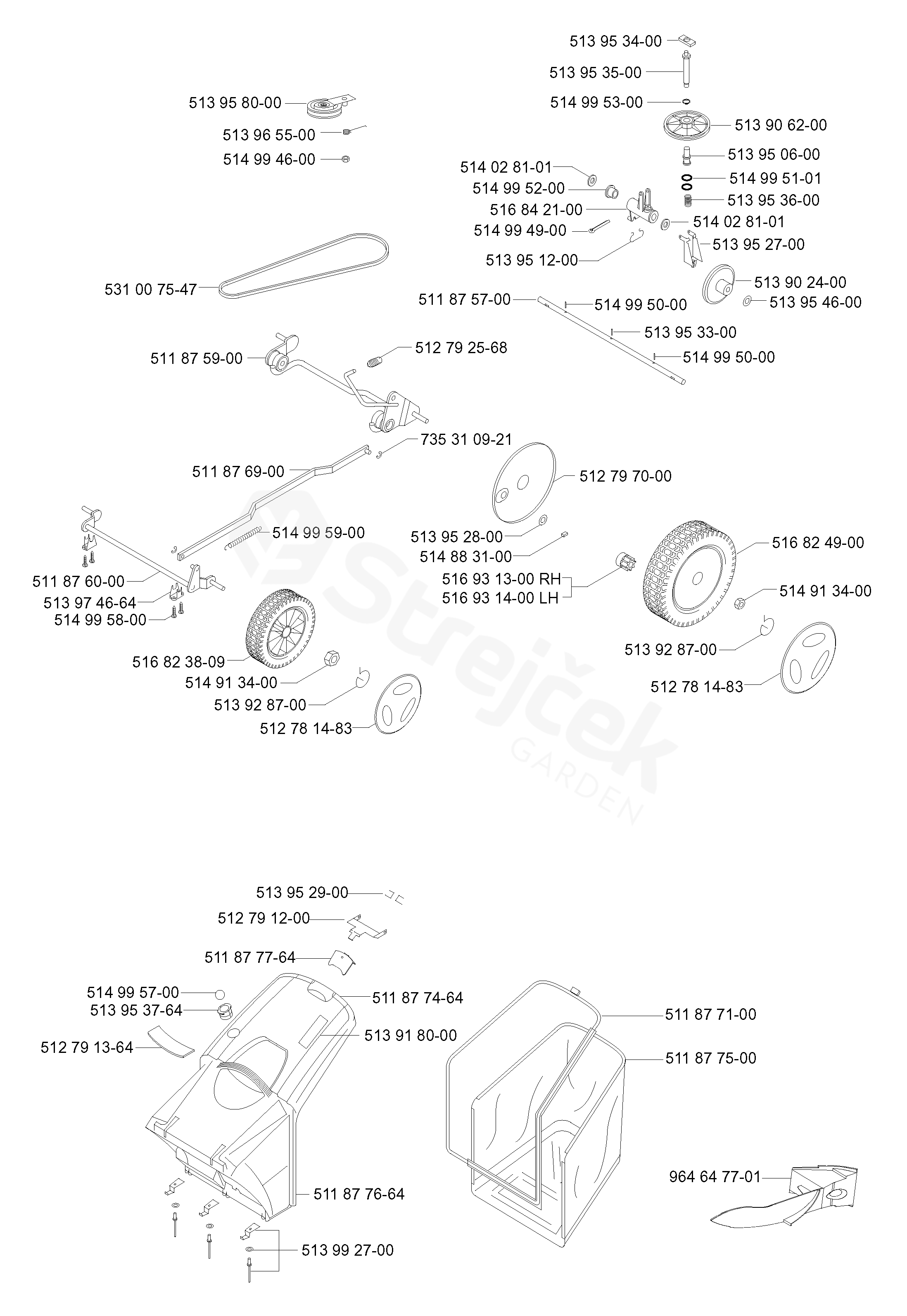

WHEELS & TIRES
ROYAL 49 ROYAL 49S BBC 2000-04
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ROYAL 49S BBC 2000-04
511875700 SHAFT 511875700
511875900 SHAFT 511875900
511876000 SHAFT 511876000
511876900 SHAFT 511876900
511877100 FRAME 511877100
511877464 COVER 511877464
511877500 BAG 511877500
511877664 PLATE 511877664
511877764 COVER 511877764
512781483 HUB CAP 512781483
512791200 CATCH 512791200
512791364 PROTECTOR 512791364
512792568 KNOB 512792568
512797000 DISC 512797000
513902400 DRIVE DISC 513902400
513906200 PULLEY 513906200
513918000 HARDTOP LABEL 513918000
513928700 SPRING 513928700
513950600 SLEEVE 513950600
513951200 CLIP 513951200
513952700 LEVER 513952700
513952800 WASHER 513952800
513952900 PIN RETAINING SCREW 513952900
513953300 PIN RETAINING SCREW 513953300
513953400 RETAINING RING 513953400
513953500 SHAFT 513953500
513953600 SPRING 513953600
513953764 HOLDER 513953764
513954600 WASHER 513954600
513958000 PULLEY 513958000
513965500 SPRING 513965500
513974664 CLAMP 513974664
513992700 SUPPORT 513992700
514028101 WASHER 514028101
514883100 PAWL 514883100
514913400 NUT 514913400
514994600 NUT 514994600
514994900 PIN RETAINING SCREW 514994900
514995000 PIN RETAINING SCREW 514995000
514995101 RING 514995101
514995200 BEARING 514995200
514995300 CLIP 514995300
514995700 BALL 514995700
514995800 SCREW 514995800
514995900 SPRING 514995900
516823809 WHEEL 516823809
516824900 WHEEL 516824900
516842100 HOLDER 516842100
516931300 PINION
RH 		516931300
516931400 PINION
LH 		516931400
531007547 DRIVE BELT 531007547
735310921 E-CLIP 735310921
964647701 PLUG 964647701
