Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > ROYAL 49 ROYAL 49S, 964470939, 1999-02 > WHEELS & TIRES
Back to

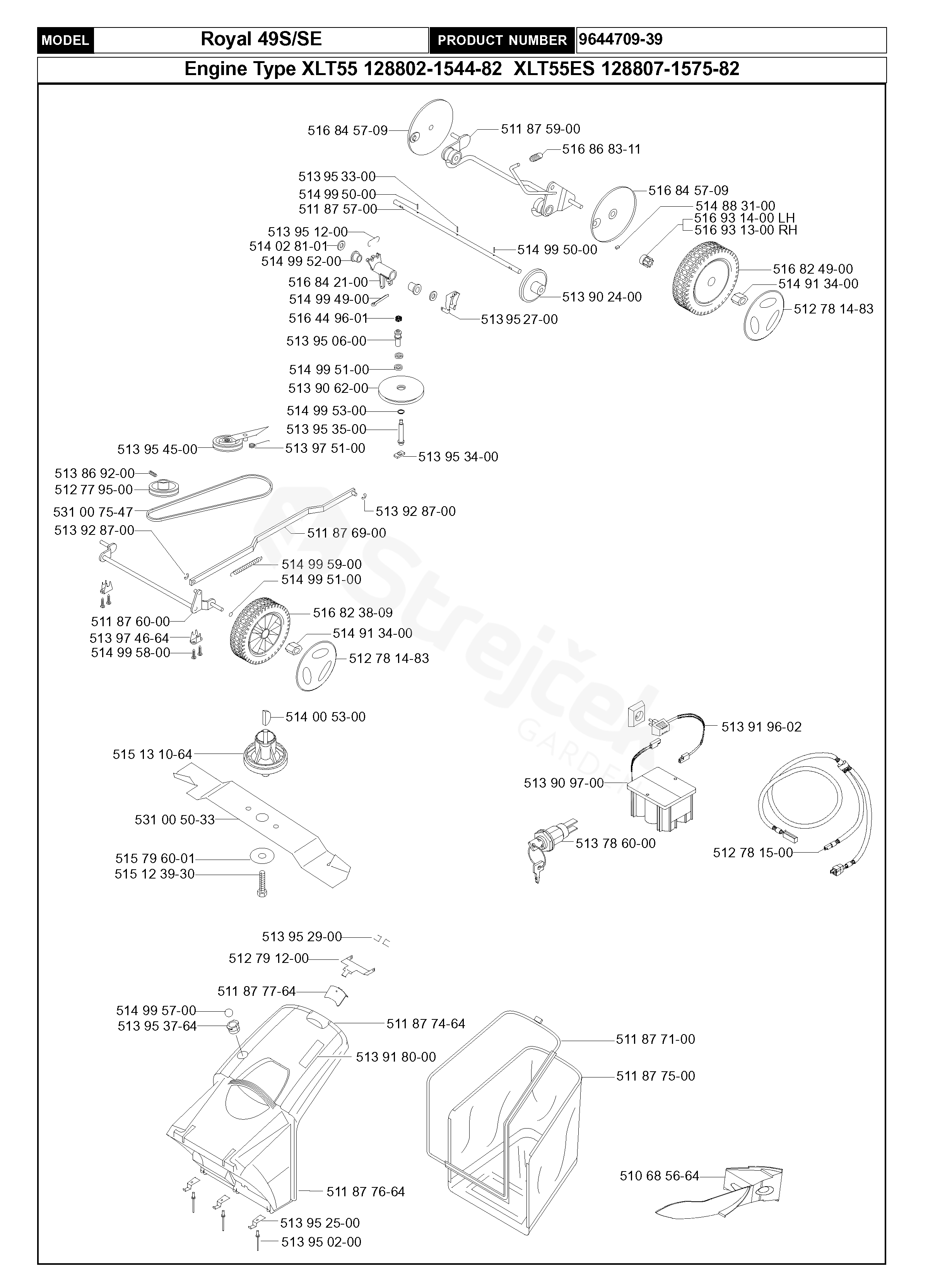

WHEELS & TIRES
ROYAL 49 ROYAL 49S, 964470939, 1999-02
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ROYAL 49S, 964470939, 1999-02
510685664 PLUG 510685664
511875700 SHAFT 511875700
511875900 SHAFT 511875900
511876000 SHAFT 511876000
511876900 SHAFT 511876900
511877100 FRAME 511877100
511877464 COVER 511877464
511877500 BAG 511877500
511877664 PLATE 511877664
511877764 COVER 511877764
512779500 PULLEY 512779500
512781483 HUB CAP 512781483
512781500 CABLE 512781500
512791200 CATCH 512791200
513786000 IGNITION SWITCH 513786000
513869200 SCREW 513869200
513902400 DRIVE DISC 513902400
513906200 PULLEY 513906200
513909700 BATTERY 513909700
513918000 HARDTOP LABEL 513918000
513919602 BATTERY CHARGER 513919602
513928700 SPRING 513928700
513950200 RIVET 513950200
513950600 SLEEVE 513950600
513951200 CLIP 513951200
513952500 CLIP 513952500
513952700 LEVER 513952700
513952900 PIN RETAINING SCREW 513952900
513953300 PIN RETAINING SCREW 513953300
513953400 RETAINING RING 513953400
513953500 SHAFT 513953500
513953764 HOLDER 513953764
513954500 TENSIONER 513954500
513974664 CLAMP 513974664
513975100 SPRING 513975100
514005300 KEY 514005300
514028101 WASHER 514028101
514883100 PAWL 514883100
514913400 NUT 514913400
514994900 PIN RETAINING SCREW 514994900
514995000 PIN RETAINING SCREW 514995000
514995100 RING 514995100
514995200 BEARING 514995200
514995300 CLIP 514995300
514995700 BALL 514995700
514995800 SCREW 514995800
514995900 SPRING 514995900
515123930 SCREW 515123930
515131064 BLADE 515131064
515796001 WASHER 515796001
516449601 SPRING 516449601
516823809 WHEEL 516823809
516824900 WHEEL 516824900
516842100 HOLDER 516842100
516845709 SHIELD 516845709
516868311 GRIP 516868311
516931300 PINION
RH 		516931300
516931400 PINION
LH 		516931400
531005033 BLADE 531005033
531007547 DRIVE BELT 531007547
