Spare parts > Castelgarden > Lawn Mower > EU 460 EU 460 (2007) > Electric Motor/Blade
Back to

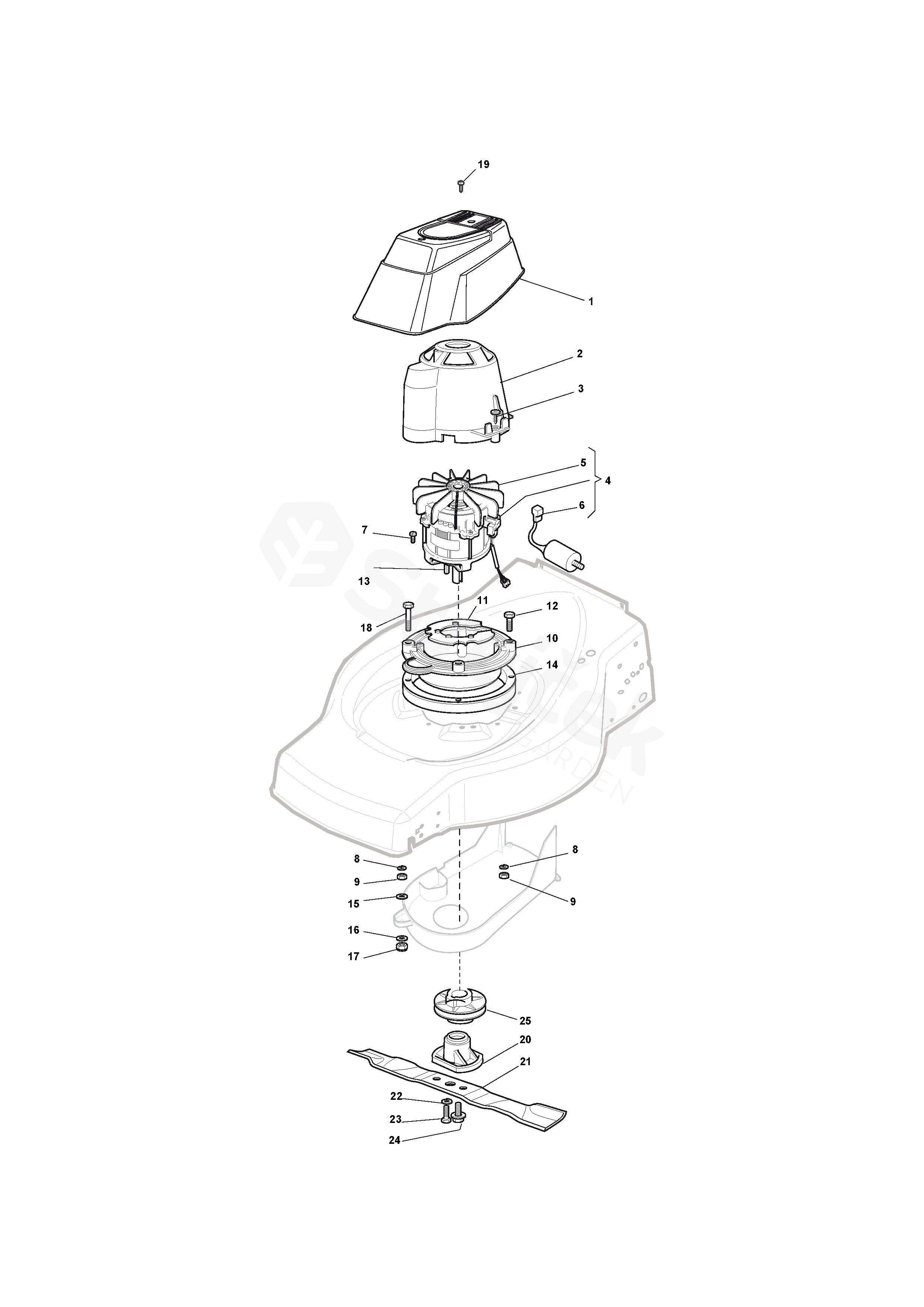

Electric Motor/Blade
EU 460 EU 460 (2007)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For EU 460 (2007)
1 Cover, Black 122055045/1
2 Cover Support 122785061/0
3 Screw 112728710/0
4 Electric Motor 1800W
230V (1800W) 		118563641/0
5 Fan Motor Atb 118740054/0
6 Condenser 118222039/0
7 Screw 112735410/0
9 Nut 112293200/0
10 Flange 122207211/3
11 Ventilation Screen 122720360/1
12 Screw 112691800/0
13 Key 112139440/0
14 Spacer 322170960/0
15 Washer 122671653/0
16 Washer 112521350/0
17 Nut 112155000/0
18 Screw 112692000/0
19 Screw 112728680/0
20 Hub 122463186/2
21 Mulching Blade 181004365/3
22 Grower 112583500/0
23 Screw 112793102/0
24 Screw 381004352/0
25 Pulley 122601911/0
