Spare parts > Castelgarden > Lawn Mower > XP 41 EL XP 41 EL (2011) > Handle, Upper Part
Back to
Handle, Upper Part
XP 41 EL XP 41 EL (2011)
Hover mouse on parts list
Wheel: Zoom, left button: Movement

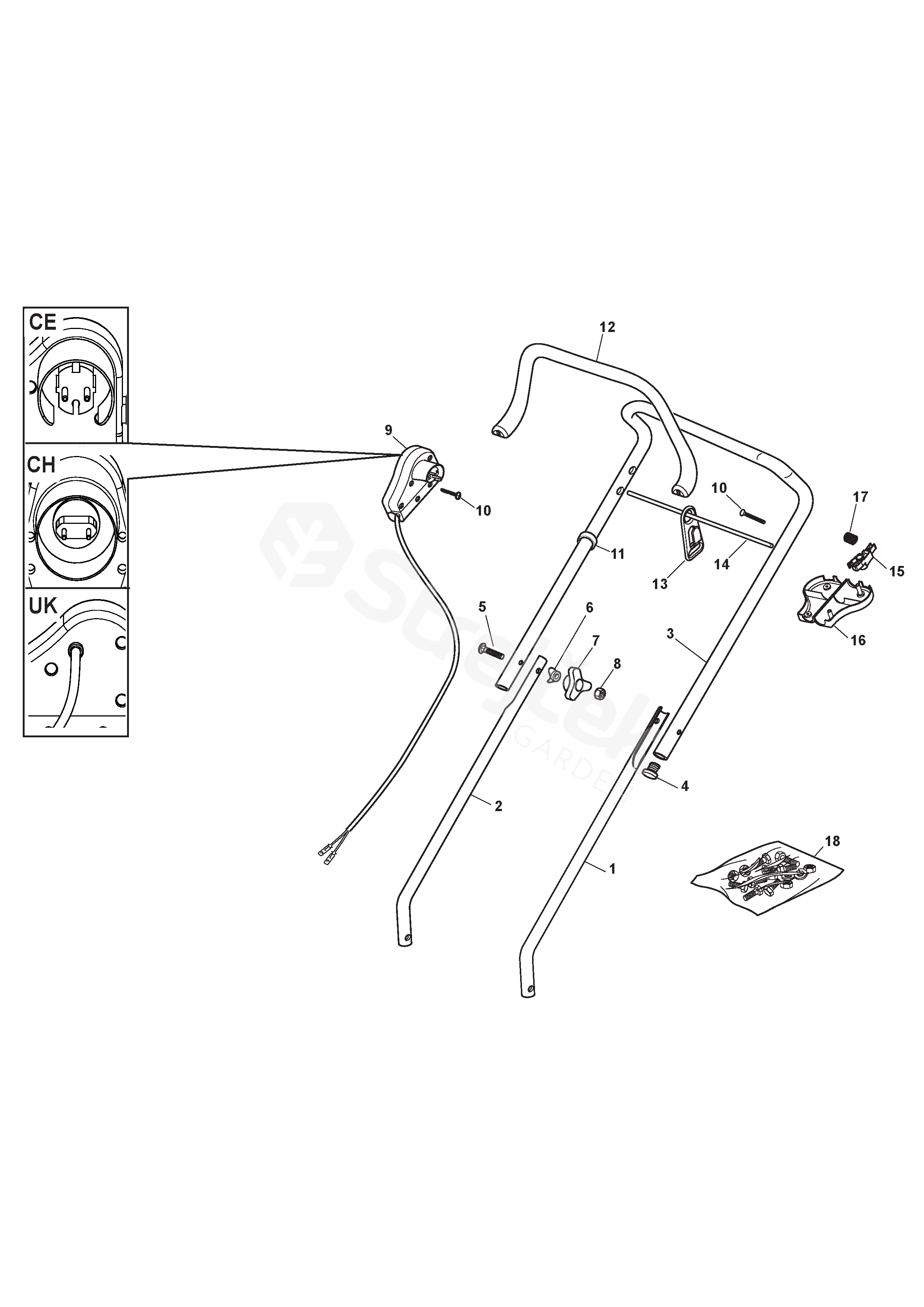

Other parts For XP 41 EL (2011)
1 Handle, Lower Part 381006940/0
2 Right Handle, Lower Part 381006939/0
3 Handle, Upper Part 381006647/0
4 Cap 118566116/0
5 Screw 112815245/0
6 Washer 112523040/0
7 Black Knob 122399900/0
8 Nut 112293200/0
9 Dead Hand Switch CE
(CE) 		381600503/4
10 Screw 112728701/0
11 Clamp 122192000/1
12 Lever, Engine Brake Red 322322882/1
13 Fairlead 322195101/4
14 Fairlead 122010250/0
15 Left fulcrum 322230350/0
16 Support 322785144/1
17 Spring 122450115/0
18 Outfit, Screws 381008669/0
CH Dead Hand Switch CH 381600504/4
UK Dead Hand Switch UK 381600505/4
