Castelgarden
>
Front mowers
>
Castelgarden XK4 160 HD Castelgarden XK4 160 HD (2013)
>
Wheels
Back to
Castelgarden XK4 160 HD
Castelgarden XK4 160 HD (2013)
Wheels
Castelgarden XK4 160 HD
Castelgarden XK4 160 HD (2013)

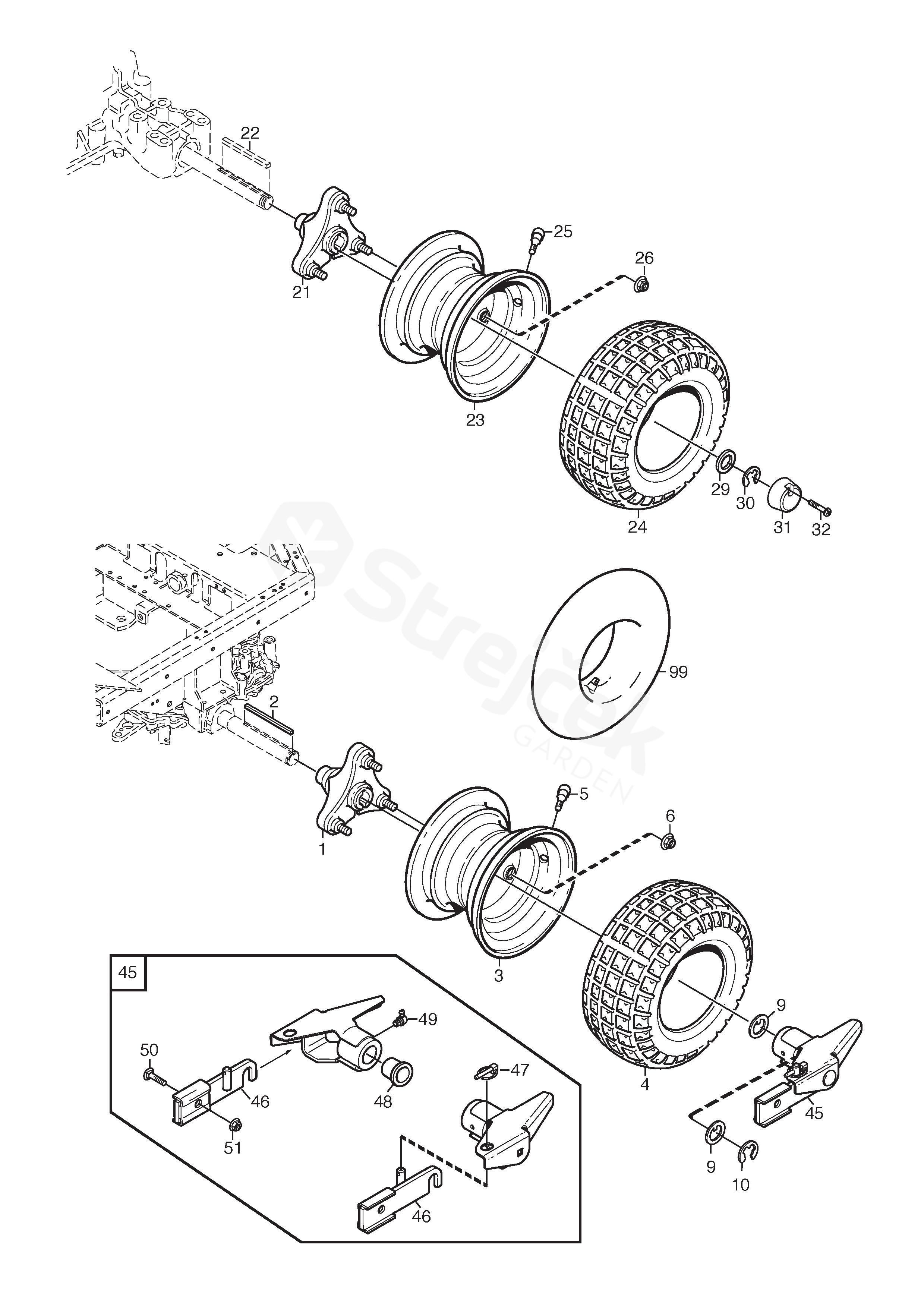

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Castelgarden XK4 160 HD (2013)
1
Wheel Hub Assy
1134-4844-03
2
Key
1134-3383-02
3
Rim
1134-4558-01
4
Tyre
16 x 7.50 - 8
9545-0116-00
5
Valve Assy.
9545-0500-00
6
Nut
9731-1031-22
9
Washer
1134-5797-01
10
Lock Ring
9653-0002-04
21
Wheel Hub Assy
1134-4844-02
22
Key
1134-2471-01
23
Rim
1134-4558-01
24
Tyre
16 x 7.50 - 8
9545-0116-00
25
Valve Assy.
9545-0500-00
26
Nut
9731-1031-22
29
Washer
9699-0042-02
30
Lock Ring
9653-0001-04
31
Hub Cap
1134-4796-01
32
Screw
9947-0540-19
45
Rac Quick Connection 4Wd
Inkl. pos 9,10,46-51
13-0993-61
46
Attachment Kit
Inkl. pos 51-51
1134-7465-01
47
Locking Pin
1137-0077-01
48
Bearing
1134-5686-01
49
Grease Joint
9501-0502-00
50
Screw
9898-1035-16
51
Nut
9739-1031-22
99
Inner Tube
Reservdel/spare part
9545-0203-00
