Castelgarden
>
Front mowers
>
XK 160 HD XK 160 HD (2011) [13-6103-01]
>
Power take-off
Back to
XK 160 HD
XK 160 HD (2011) [13-6103-01]
Power take-off
XK 160 HD
XK 160 HD (2011) [13-6103-01]

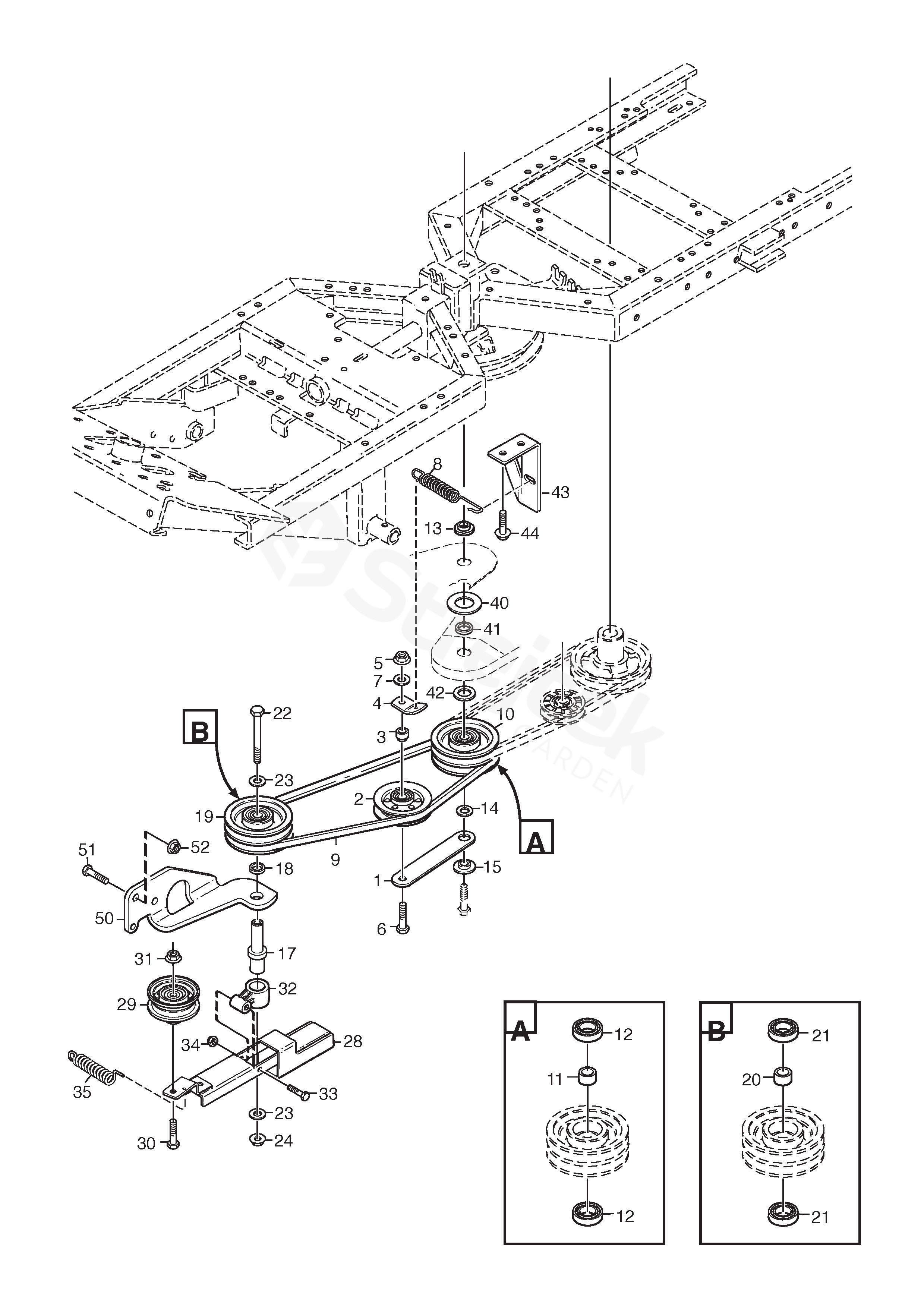

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
XK 160 HD (2011) [13-6103-01]
1
Tensioning Wheel Arm
1134-1730-01
2
Tension Wheel
1134-3663-01
3
Spacer
1134-1888-05
4
Spring
1134-1893-01
5
Nut
9739-1031-22
6
Screw
9997-1060-12
7
Washer
9699-0035-02
8
Spring
1134-5713-01
9
Drive Belt
Contains belt 9585-0148-01
1134-9098-01
10
Centtre Pulley Assy
Inkl. pos 11-12
1137-0004-01
11
Spacer
1134-0051-09
12
Ball Bearing
9549-0019-00
13
Spacer
1134-5548-01
14
Washer
9699-0035-02
15
Washer
1134-0222-00
17
Shaft
1134-5663-01
18
Spacer
1134-0052-00
19
Centtre Pulley Assy
Inkl. pos 20-21
1137-0004-01
20
Spacer
1134-0051-09
21
Ball Bearing
9549-0019-00
22
Screw
9997-1011-06
23
Washer
9699-0030-02
24
Nut
9739-1031-22
28
Tension Arm
1137-0386-01
29
Tension Roller Assy
1134-5823-01
30
Screw
9997-1050-16
31
Nut
9739-1031-22
32
Tension Arm Attachment
1134-6314-01
33
Screw
9997-0645-12
34
Lock Nut
9747-0631-02
35
Spring
1134-5824-01
40
Washer
26x50x2
1137-0353-01
41
Spacer
17.1x25x5
1134-0052-00
42
Washer
17x30x3
9699-0104-02
44
Screw
9945-0816-16
50
Bracket
1137-0395-01
51
Screw
9997-1020-16
52
Nut
9739-1031-22
