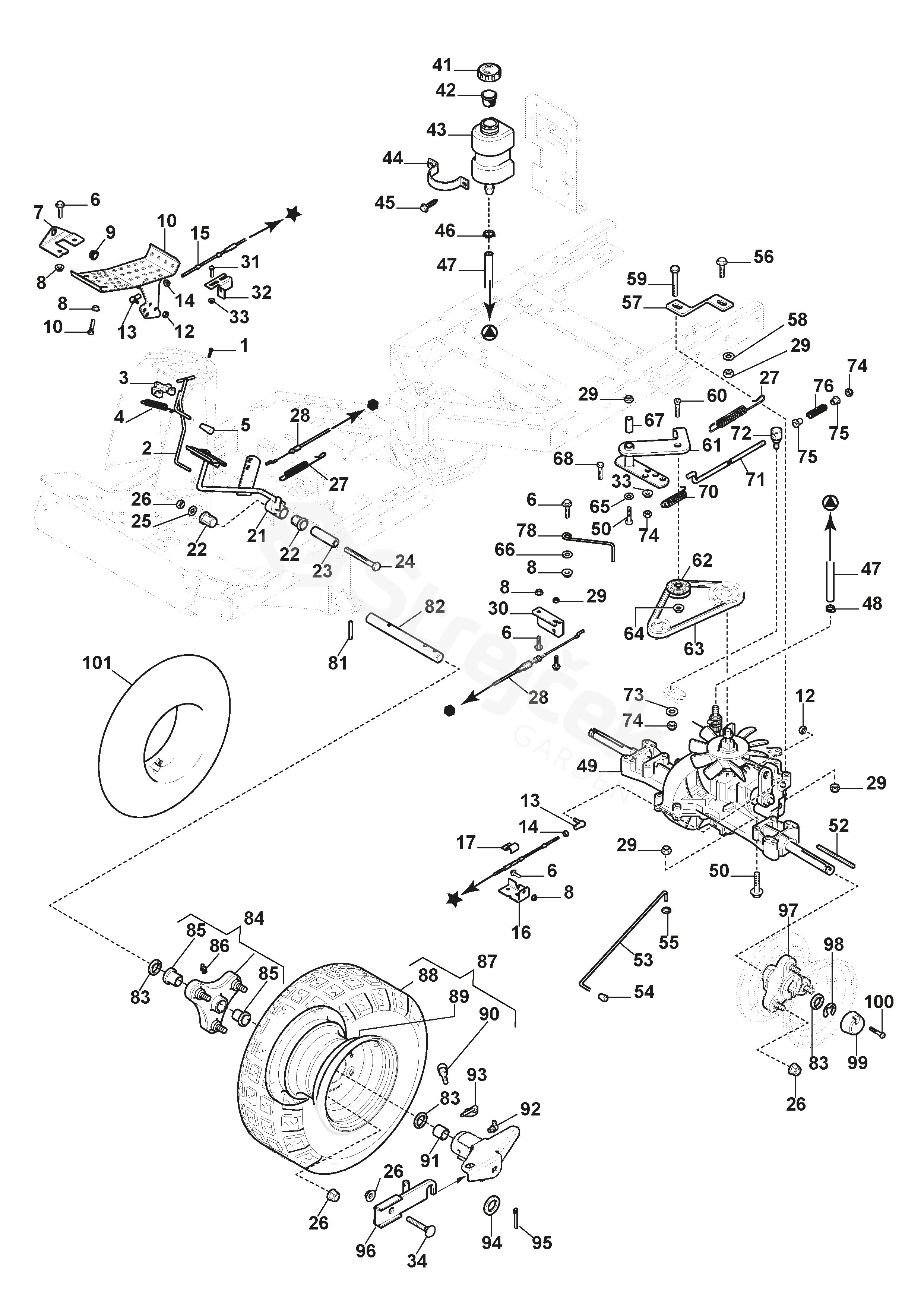

Spare parts - Partlist - XK 160 HD XK 160 HD (2019) - Transmission

Everything for your machines

XK 160 HD XK 160 HD (2019)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For XK 160 HD (2019)

1	Screw	112728697/0
2	Brake Rod	1134-5353-01
3	Brake Rod Attachment	1134-4002-01
4	Brake Spring	1131-1497-01
5	Knob	1134-2786-01
6	Screw	9959-0820-16
7	Bracket	1134-2700-01
8	Nut	112154220/0
9	Bearing	1134-6313-01
10	Drive Pedal	1134-6353-01
11	Screw	9997-0835-16
12	Nut	112154330/0
13	Elbow Link	9570-0001-00
14	Nut	9739-0531-22
15	Speed Control Cable	1134-2766-05
16	Attachment	1134-3395-01
17	Clamp	1134-2021-01
21	Clutch Pedal	1134-5655-01
22	Bearing Sats 4 st/kit of 4	1134-9024-01
23	Spacer	1134-5677-02
24	Screw	9997-1070-12
25	Washer	9699-0030-02
26	Nut	9731-1031-22
27	Spring	4231-0013-00
28	Control Cable	187000211/1
29	Nut	112155000/0
30	Cable Holder	1134-6467-01
31	Screw	9959-0620-16
32	Wire Bracket	1134-6317-01
33	Nut	9739-0631-22
41	Filler Cap	1134-2777-02
42	Vent Plug	1134-3734-01
43	Oil Tank	1134-2765-02
44	Band	1134-2778-01
45	Screw	9852-8013-16
46	Hose clamp	9578-0036-01
47	Tube L = 290 mm	1134-2779-09
48	Hose clamp 15x8	9578-0023-04
49	Transaxle K46Ci Kanzaki K46CI	1137-0123-01
50	Screw L = 60 mm	9960-0860-12
52	Key	1134-2471-01
53	Pull Rod	1134-4015-01
54	Knob	1134-4014-01
55	Crown Fastener	112604896/0
56	Screw	9959-0825-16
57	Strut	1134-3913-01
58	Washer	9699-0090-02
59	Screw	112691200/0
60	Screw	112794117/0
61	Tension Arm	387205001/0
62	Tension Roller	387605012/0
63	Drive Belt Replaced by Service Code: 1134-9058-01	9585-0091-01
64	Nut	9739-1031-22
65	Grower	112583500/0
66	Washer	112523060/0
67	Spacer	137038008/0
68	Screw	112791500/0
70	Spring	1134-6414-01
71	Control Rod	1134-3377-02
72	Pivot Pin	1134-4171-01
73	Washer	9699-0060-02
74	Nut	112154510/0
75	Bushing	1134-3456-01
76	Spring	1134-4183-01
78	Belt Guide	1134-3289-02
81	Locating Pin	9595-0258-00
82	Front Axle	1134-0075-00
83	Washer	1134-0341-01
84	Wheel Hub Assy	1134-4844-05
85	Bushing	137038009/0
86	Grease Dispenser	112379511/0
88	Tyre 16 x 7.50 - 8	9545-0116-00
89	Rim	187000454/0
90	Valve Assy.	9545-0500-00
91	Bearing	9548-0026-01
93	Locking Pin	1137-0077-01
94	Washer	9699-0042-02
95	Cotter Pin	9599-0080-02
96	Attachment Kit	1134-7465-01
97	Wheel Hub Assy	1134-4844-02
98	Lock Ring	9653-0001-04
99	Hub Cap	1134-4796-01
100	Screw	9947-0540-19
101	Inner Tube Reservdel/spare part	9545-0203-00
