8522 RLS 8522 RLS, 96143006500, 2010-01

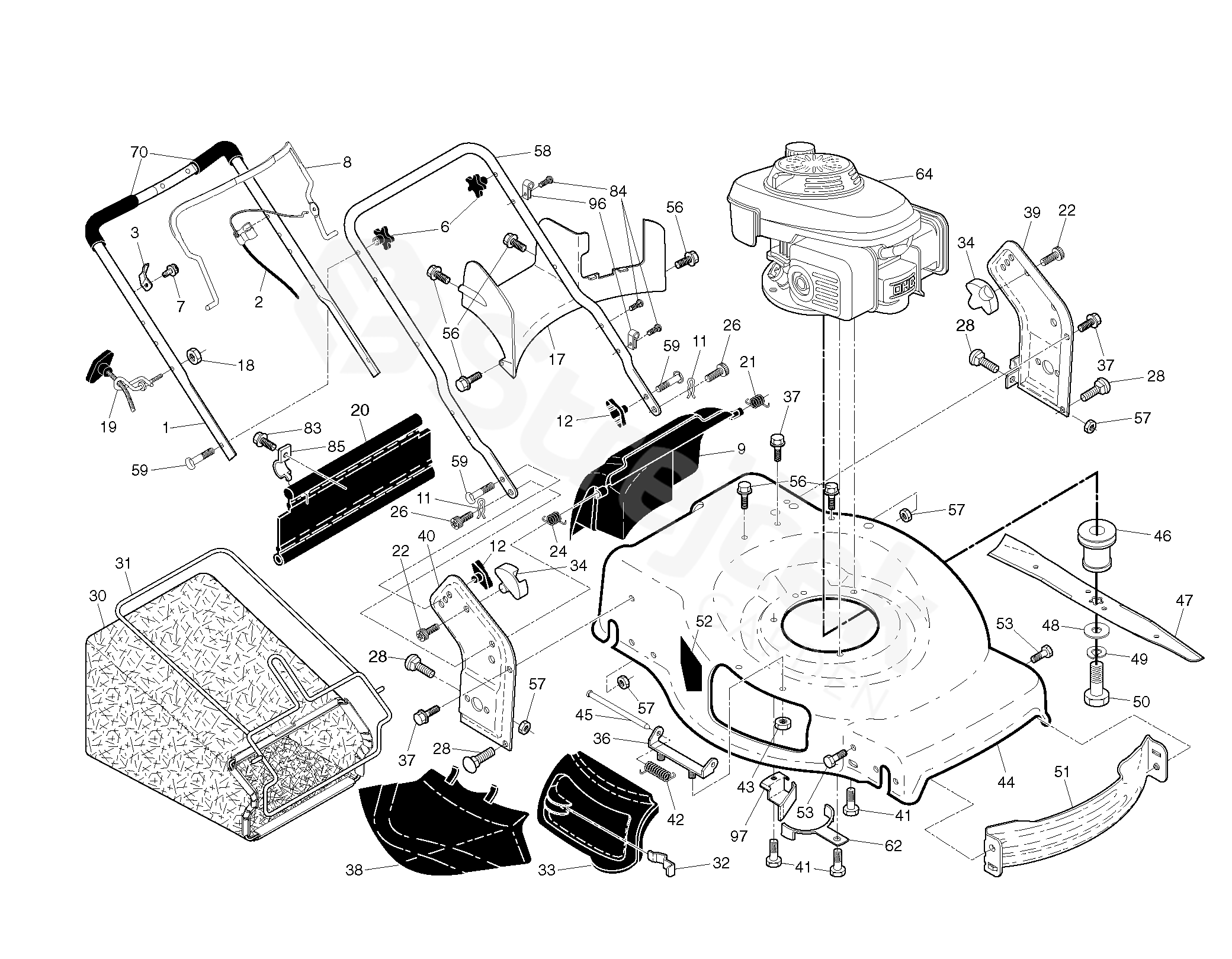

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 8522 RLS, 96143006500, 2010-01

1	HANDLE	532186296
2	CABLE	532424037
3	BRACKET	532430034
6	KNOB	532182398
7	SCREW	532750634
8	BAR	532426812
9	DOOR	532431390
11	HAIR PIN COTTER	532425575
12	KNOB	532191938
17	BAFFLE	532431238
18	MATICE	532132004
19	GUIDE	532194788
20	DOOR	532429157
21	SPRING LH	532419949
22	SCREW	532141841
24	SPRING RH	532419948
26	SCREW	532419945
28	BOLT	872250505
30	BAG	532429017
31	GRASSBAG	532419951
32	LATCH	532419944
33	MULCH DOOR	532423357
34	BRACKET	532426064
36	HINGE	532175735
37	BOLT	532428867
38	DEFLECTOR	532426129
39	BRACKET LH	532430039
40	BRACKET RH	532430033
41	BOLT	532150406
42	HINGE	532193000
43	MATICE	532191730
44	HOUSING	532432263
45	ROD	532175650
46	ADAPTER	532421782
47	BLADE.22PLUS	532420463
48	PODLOŽKA	532851074
49	PODLOŽKA	532850263
50	SCREW	532851084
51	BAFFLE	532430599
52	DECAL	532404763
53	BOLT	817000510
56	SCREW	817411312
57	MATICE	532155377
58	HANDLE HALF	532426072
59	HANDLE BOLT	532191574
62	BELT GUARD	532425711
64	W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701 HONDA GCV160-LAS3A	000000000
70	HANDLE	532182748
83	SCREW HEX HEAD RL508A/B	532750097
84	FASTENER	532428124
85	BRACKET	532434530
96	CLIP	532197991
97	BRACKET	532434893
