Spare parts > Castelgarden > Front mowers > Deck 95 Combi XK Deck 95 Combi XK (2017) > Transmission and Blades
Back to

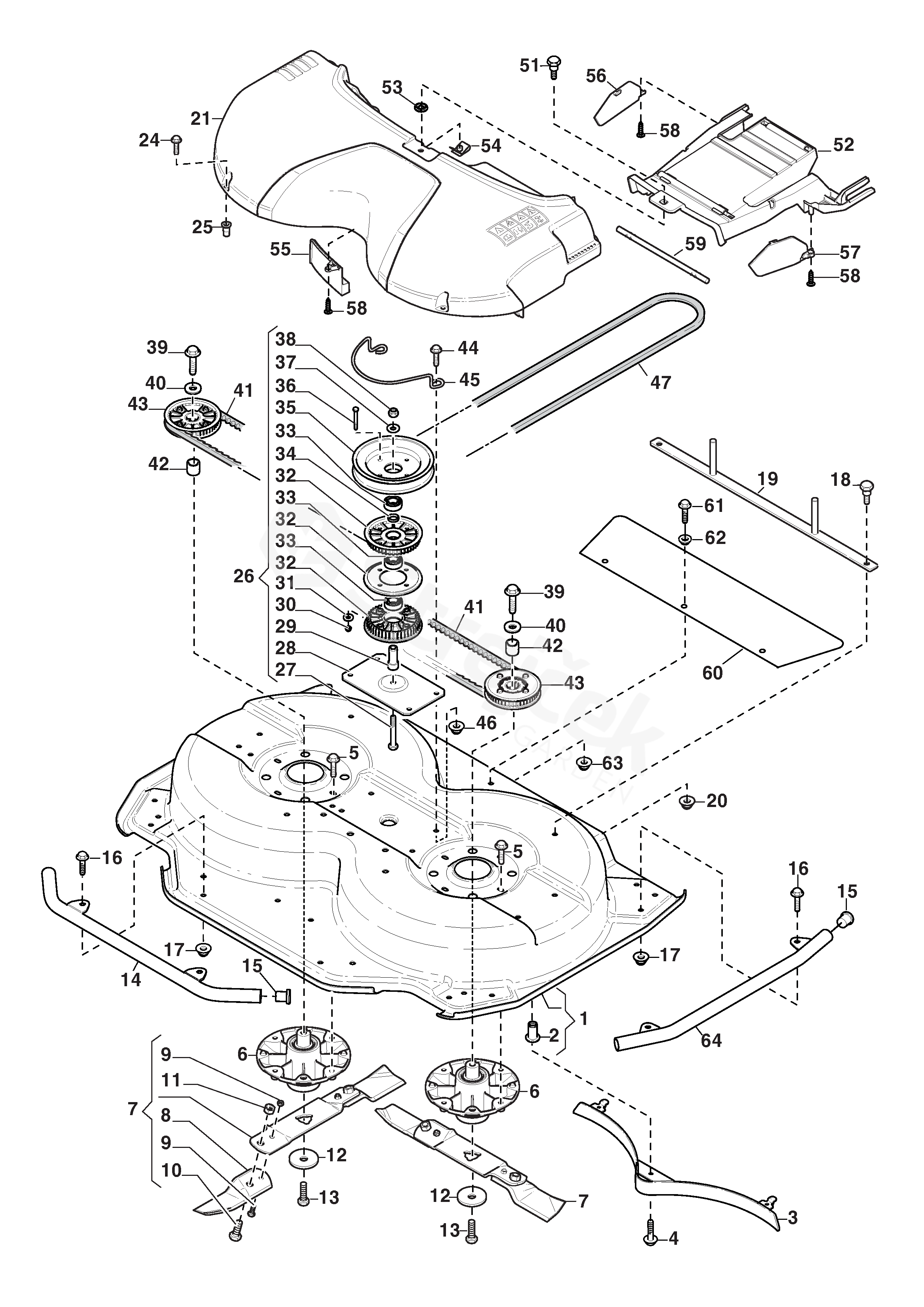

Transmission and Blades
Deck 95 Combi XK Deck 95 Combi XK (2017)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Deck 95 Combi XK (2017)
1 Casing-Red 95C 387561503/0
2 Nut 1134-5595-01
3 Mulch Plug 95C 1134-6229-01
4 Screw 9959-0820-16
5 Screw 9945-0825-16
6 Bearing Box Assy 1134-5831-01
7 Blade Bar Assy (95C) 1134-9117-01
8 Blade Kit Assy 1134-9119-01
9 Shear Bolt Kit 1134-9054-01
10 Bolt 1134-6311-01
11 Nut 1134-6312-01
12 Washer 1134-6211-01
13 Screw 112692395/1
14 Front Guard Tube-Black 1134-6208-02
15 End Plug, Black 9403-0025-70
16 Screw 112800815/0
17 Nut 112154220/0
18 Shoulder screw 1134-0240-01
19 Bracket 1137-1082-01
20 Nut 112154220/0
21 Transmission Cover-Grey 1134-6280-06
24 Screw 9945-0825-16
25 Nut 1134-5595-01
26 Pulley 1137-1149-01
27 Screw 9997-1070-12
28 Bracket 1134-6209-01
29 Shaft 1134-6205-02
30 Lock Nut 9747-0631-02
31 Washer 9699-0060-02
32 Toothed Belt Pulley 1134-9128-02
33 Ball Bearing 9549-0019-00
34 Spacer 1134-3725-06
35 Pulley 1137-0013-01
36 Screw 9997-0650-12
37 Washer 9699-0030-02
38 Nut 9731-1031-22
39 Screw 112692395/1
40 Washer 1134-5406-01
41 Toothed Belt 9585-0164-01
42 Spacer 1134-5400-04
43 Toothed Belt Pulley 1134-9127-01
44 Screw 9959-0820-16
45 Belt Guide 1134-6431-01
46 Nut 112154220/0
47 V-Belt 1134-9147-01
51 Screw 1134-0240-00
52 Belt cover 337600002/0
53 Starlock 9675-0016-02
54 Nut 1134-4620-02
55 Belt cover 337600006/0
56 Belt cover 337600004/0
57 Belt cover 337600005/0
58 Screw 9838-8822-19
59 Pin 1137-1090-01
60 Rubber Guard 1134-6281-02
61 Screw 112800815/0
62 Flange Washer 1134-4185-01
63 Nut 112154220/0
64 Side Guard Tube-Black 95C 1134-6222-02
