DECK 95 C FOR XM DECK 95 C FOR XM (2009)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For DECK 95 C FOR XM (2009)

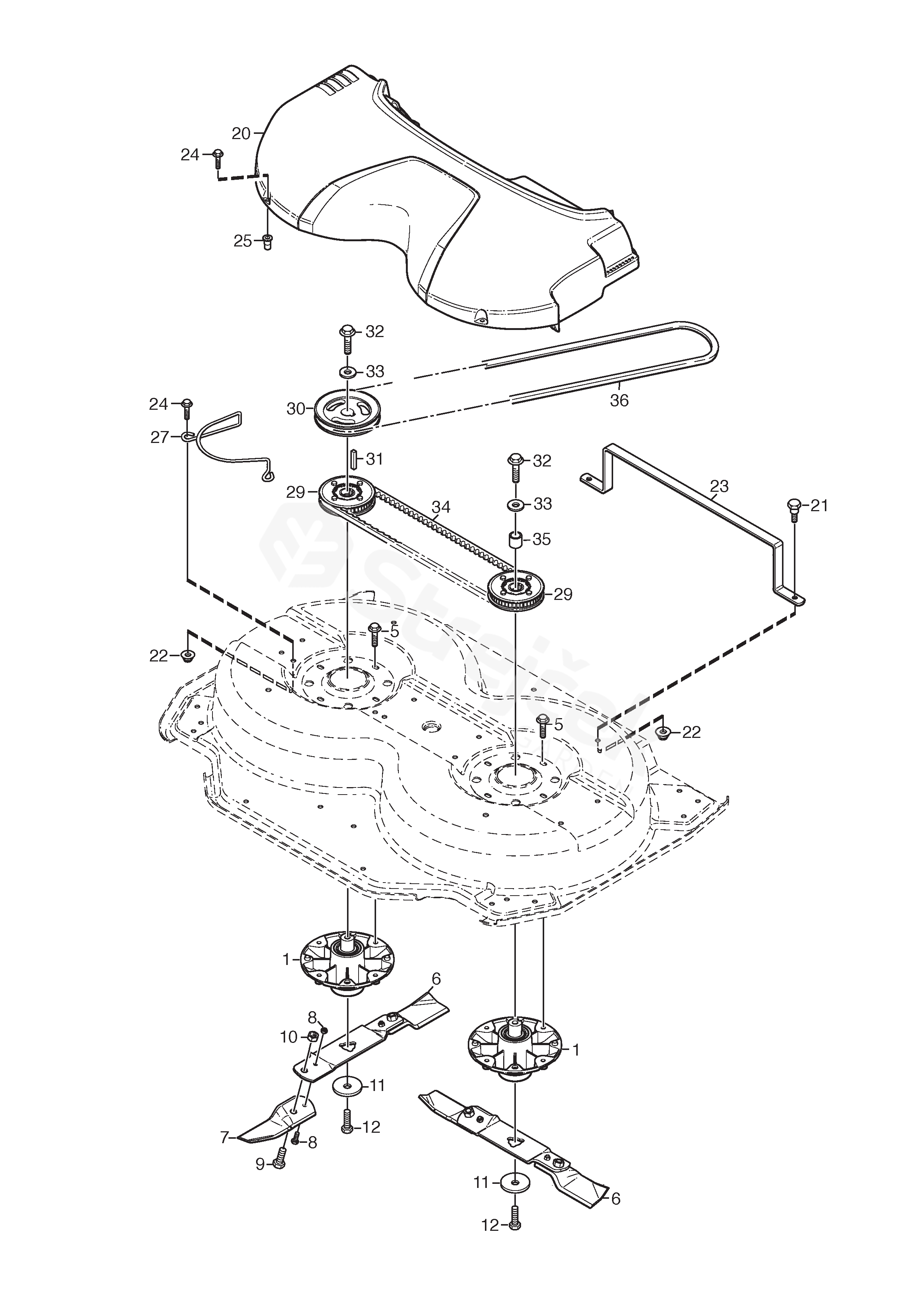

1	Bearing Box Assy	1134-5831-01
5	Screw	9945-0825-16
6	Blade Assy (95C) Pos 7 incl.	1134-6240-02
7	Blade Kit Assy Pos 8 - 10 incl.	1134-9119-01
8	Shear Bolt Kit	1134-9054-01
9	Bolt 7/16" UNF	1134-6311-01
10	Nut 7/16" UNF	1134-6312-01
11	Washer	1134-6211-01
12	Screw	9997-1060-12
20	Transmission Cover-Grey (Castel)	1134-6280-03
21	Shoulder screw	1134-0240-01
22	Nut	9739-0831-22
23	Support	1134-6423-01
24	Screw	9945-0825-16
25	Nut	1134-5595-01
27	Belt Guide	1134-6429-01
29	Toothed Pulley Assy	1134-6287-01
30	Belt Pulley Ø = 161 mm	1134-6202-01
31	Key	9600-0168-01
32	Screw	9997-1060-12
33	Washer	1134-5406-01
34	Toothed Belt	9585-0162-01
35	Spacer	1134-5400-04
36	Drive Belt	9585-0127-01
