Spare parts > Castelgarden > Front mowers > FRONT DECK XM 107 FRONT DECK XM 107 (2004) > Transmission
Back to

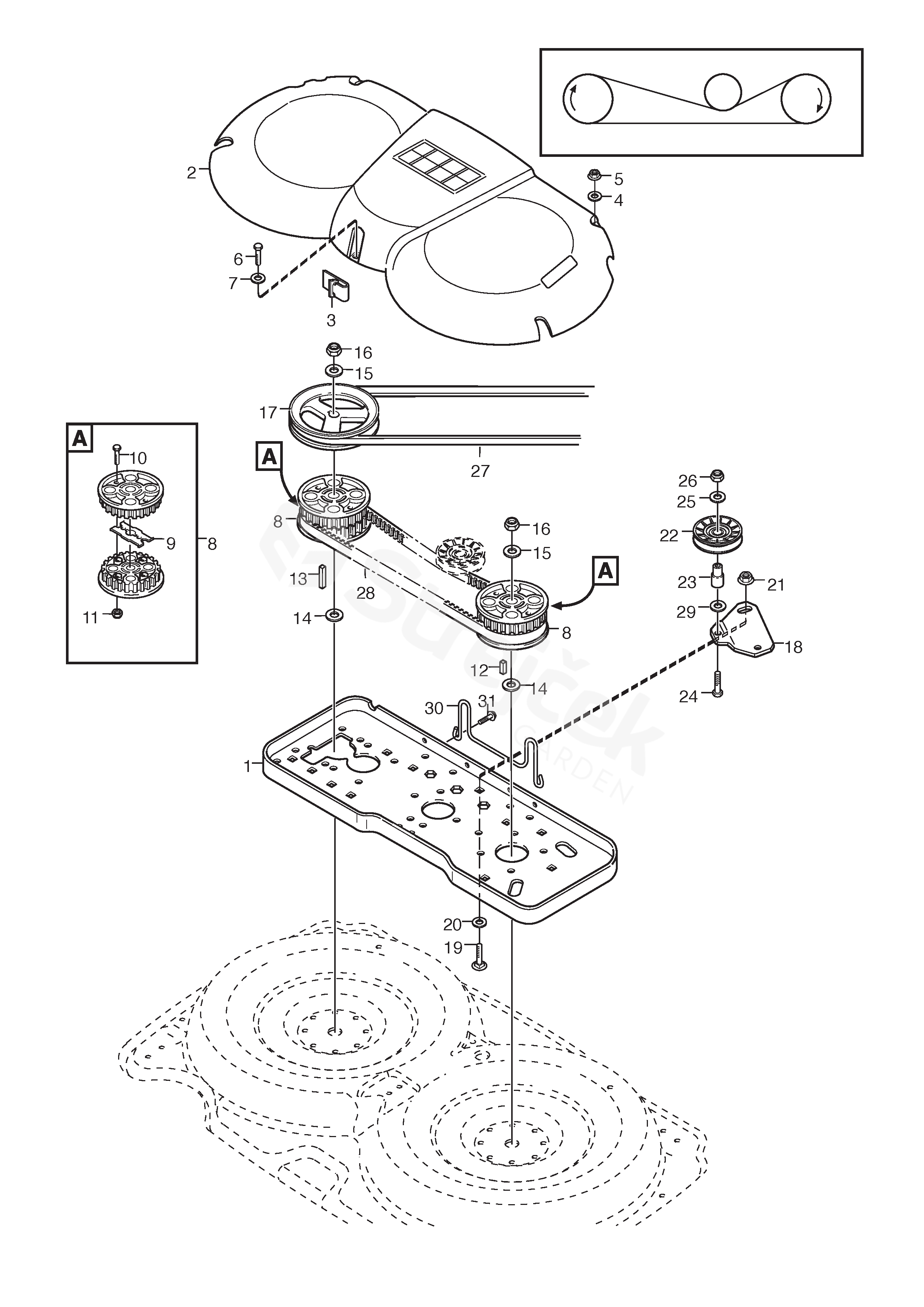

Transmission
FRONT DECK XM 107 FRONT DECK XM 107 (2004)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For FRONT DECK XM 107 (2004)
1 Transmission Plate 1134-5229-01
2 Transmission Cover (Grey) 7-20 1134-4865-04
3 Belt Guide 1134-3632-01
4 Washer 9699-0028-02
5 Nut 9747-0831-02
6 Screw 9942-0612-16
7 Washer 9699-0060-02
8 Toothed Belt Pulley 1134-3679-01
9 Reinforcement 1134-3597-01
10 Screw 9997-0625-16
11 Lock Nut 9747-0631-02
12 Key
L = 25 mm 		1134-0323-01
13 Key
L = 40 mm 		1134-0323-04
14 Washer 9699-0104-02
15 Washer 9699-0121-02
16 Nut 9712-1231-02
17 Belt Pulley 1134-4732-01
18 Tension Arm 1134-4537-01
19 Screw 9897-0825-16
20 Washer 9699-0036-02
21 Nut 9739-0831-22
22 Tension Roller 1134-3053-01
23 Shaft 1134-4316-03
24 Screw 9997-1040-12
25 Washer 9699-0030-02
26 Nut 1134-4775-01
27 Drive Belt 9585-0127-01
28 Toothed Belt 9585-0133-01
29 Washer 9699-0035-02
30 Guide 1134-4747-01
31 Screw 9945-0816-16
